Products – B200 SERIES
em-trak B200 Series is a high transmit power (5W) AIS Class B. With continuous operation for up to 12 hours and emergency transmit only operation for up to 24 hours, the 200 Series provides critical safety in the event of vessel power loss. The B200 Series will operate reliably for years in the most extreme marine environments, with WiFi and Bluetooth plug and play connectivity.
Find your local installer
Model Details
B200 Details
Features
- Certified AIS Class B – 5W SOTDMA
- Ruggedized and impervious to extreme environments – water (IPx6, IPx7), damp, shock, vibration, temperatures
- High Performance latest generation GPS
- Internal battery back-up for up to 120hrs operation – charge is automatically maintained by primary vessel power and automatically switches to battery if lost
- WiFi & Bluetooth wireless connectivity
- NMEA0183 & NMEA2000
- Low power consumption
- Anti-tamper protection
- Enhanced RF screening to protect against electromagnetic interference
- Built-in power surge protection
Technical Specification
PHYSICAL AND ENVIRONMENTAL SPECIFICATION
Size (w x h x d) – 170 x 140 x 69mm
Weight – 695g
Operating temperature – -25°C to +55°C
Storage temperature – -25°C to +70°C
Ingress protection – IPx6 and IPx7
ELECTRICAL SPECIFICATION
Supply voltage – 12V or 24V DC
Supply voltage range – 9.6V – 31.2V DC
Average current (at 12V) – 240mA (1.6A when battery charging)
Peak current – 3.85A
Average power consumption (at 12V) – 2.9W (19.2W when battery charging)
Galvanic isolation – NMEA 0183 inputs only, NMEA 2000, VHF antenna port
Battery Capacity – 4600mAh
Battery Type – 3.7V Li-Ion rechargeable
Battery life (default operating conditions) – 48 hours

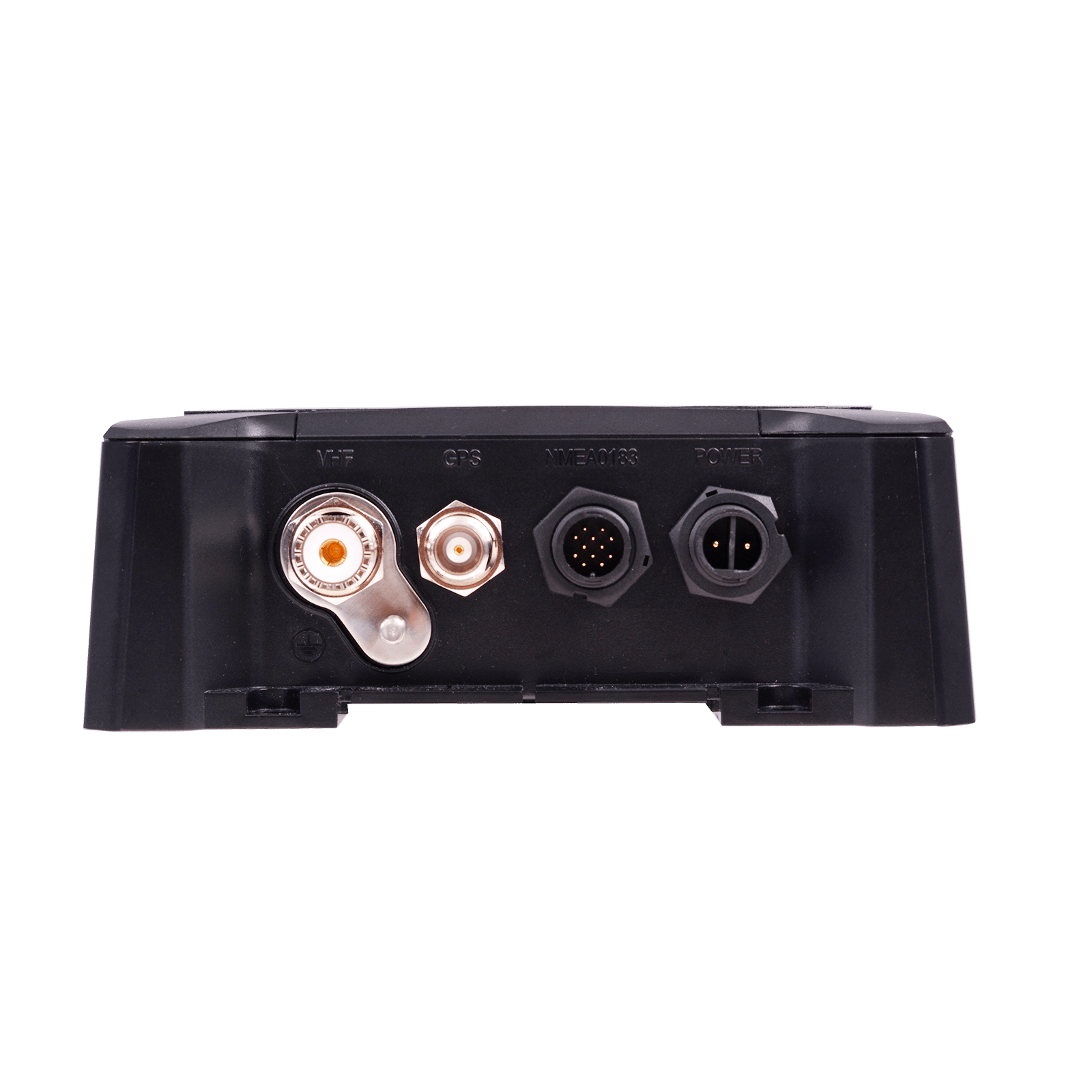

CONNECTORS
VHF antenna – SO-239
GNSS – TNC
Power – 2 way circular multipole
NMEA 0183/silent mode – 12 way circular multipole
NMEA 2000 – 5 way Micro-C connector
USB – USB Micro-B
DATA INTERFACES
NMEA 0183 – 2 x bi-directional ports
NMEA 2000 – NMEA 2000 Ed 3.101, LEN=1
USB – PC virtual com port for NMEA 0183 data
Wi-Fi – IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
Bluetooth – BT Classic 4.0, 7 concurrent connections
STANDARDS COMPLIANCE
AIS standards – IEC 62287-2 Ed. 2. ITU-R M.1371.5
Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
Environmental standards – IEC 60945 Ed. 4
Serial data interface standards – IEC 61162-1 Ed 5.0. IEC 61162-2 Ed 1.0
NMEA 2000 – NMEA 2000 Ed 3.101
GNSS performance standards – IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0
GNSS
Systems supported – GPS, GLONASS, BeiDou, Galileo
(two of any combination, three including GPS, Galileo)
Channels – 72
Internal/external antenna – External only
Time to first fix from cold start – 26s
VHF TRANSCEIVER
VDL access scheme – SOTDMA
Operating frequency – 156.025MHz – 162.025MHz
Channel bandwidth – 25kHz
Receivers/transmitters – 2 x receivers, 1 x transmitter
AIS receiver sensitivity (20% PER) – -111dBm
AIS transmitter power – 5W (+37dBm)
USER INTERFACE
Buttons – Integrated silent mode
Indicators – Power, transmit timeout, error, silent mode
GNSS antenna
Size – 85 x 70mm
Weight – 470g
Ingress Protection – IPx6 and IPx7
Mounting – 1 inch 14 TPI pole mount required
GNSS systems supported – GPS, GLONASS, Galileo, BeiDou
In The Box
- 1 x AIS Transceiver
- 1 x GPS antenna
- 1 x Power Cable (2m)
- 1 x USB Cable
- 1 x Anti-Tamper Bracket
- 2 x Anti-Tamper Locking Plates
- 1 x Fixing Pack
- 1 x Mounting Template
