CERTIFIED FISHING BUOY TRACKER

BT100 SERIESFishing Buoy-tracker

BUOY-Tracker is a purpose designed and certified AIS transponder for marking and locating buoys. It enables you to precisely track, locate and protect your buoys and gear using your existing onboard AIS message which is displayed as a buoy icon on all navigation displays.

BUOY-Tracker is ruggedized for continuous commercial use and powered by its own internal battery which is easily recharged using a charging dock and will operate continuously for 5 days between charges.

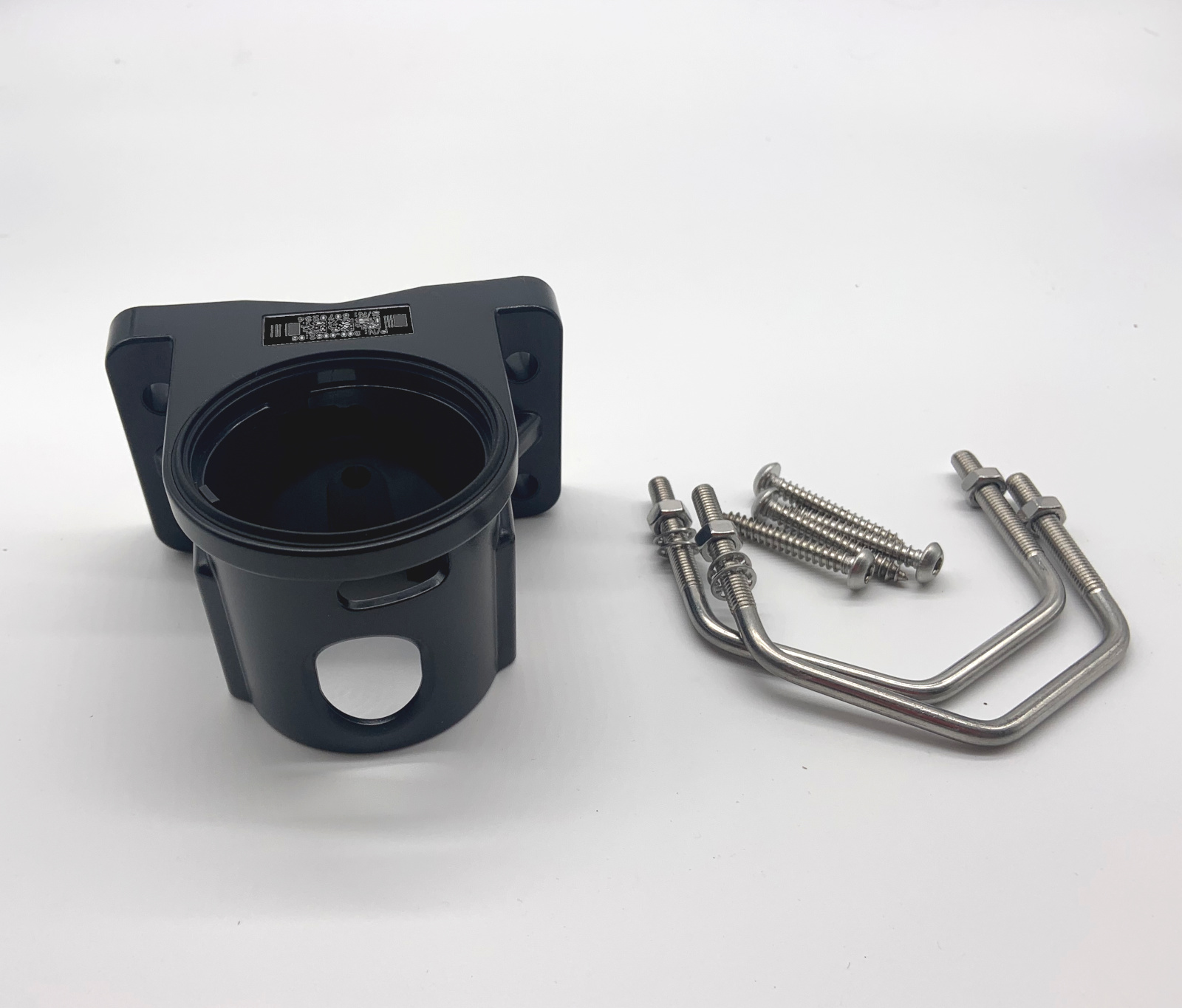

NOTE: in order to operate BUOY-Tracker requires a bracket and a charger. Prior to use BUOY-Tracker must be programmed and you will need a Programming Dock to perform this exercise. The Programming Dock can be used to program multiple BUOY-Trackers and also acts as a charger. BUOY-Tracker is used globally in different applications and em-traks accessories allow you to create your own combination of BUOY-Trackers, chargers and brackets suitable for your own individual requirements.

$349.00

Global next day shipping

Add to cart Find dealer

Print Datasheet

Certified Class B AIS Transponder (Transmit Only), Small & lightweight, easy to use and install, internal 5 day rechargable battery, IPx8 ruggedized,

Features
- Globally certified Type 1 AIS Aids to Navigation Transponder
- Simple to configure and use – automatically switches on when fixed in bracket to buoy
- Precise location and identity of buoy displayed on your existing navigation chart display in real time using AIS
- 120 hour operational life between charges – internal battery recharges with supplied charging dock in 5 hours
- IPx8 ruggedized for continuous long term operation at sea in even the harshest of weather
Technical Specification
PHYSICAL AND ENVIRONMENTAL SPECIFICATION
Size (h x w) – 370 x 67 mm
Weight – 355g
Operating temperature – -25°C to +55°C
Storage temperature – -25°C to +70°C
Ingress protection – IPx6 and IPx8

ELECTRICAL SPECIFICATION
Battery capacity – 2300mAh
Battery type – 3.7V Li-Ion rechargeable
Battery life (default operating conditions) – 120 hours

STANDARDS COMPLIANCE
AIS standards – IEC 692320-2 Ed. 2
Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
Environmental standards – IEC 60945 Ed. 4
GNSS performance standards – IEC 61108-1 Ed 2.0

GNSS
Systems supported – GPS
Channels – 50
Internal/external antenna – Internal only
Time to first fix from cold start – 37s

VHF TRANSCEIVER
VDL access scheme – FATDMA
Operating frequency – 156.025MHz – 162.025MHz
Channel bandwidth – 25kHz
Receivers/transmitters – 1 x transmitter
AIS transmitter power – 1W (30dBm radiated)

USER INTERFACE
Buttons – SOS
Indicators – Status indicator

CHARGING DOCK
Size (H x W x D) – 110mm x 120mm x 78mm
Weight – 360g
Power supply – 115V / 240V AC

CONFIGURATION DOCK
Size (H x W x D) – 110mm x 120mm x 78mm
Weight – 360g
Power supply – 115V / 240V AC
PC interface – USB (cable supplied)
In The Box
- 1 x AIS Transceiver
Global Support & Warranty Service
With em-trak you can buy with confidence. If you are unhappy with your new product for any reason, within two days of receipt and subject to the product and packaging being complete and undamaged, you may return it to us for a full refund.

We are sorry, but we cannot accept the return of any product if you have not advised us in writing within 48 hours of receiving your em-trak product, or if it has been used and or damaged or if any of the package is incomplete. All em-trak products benefit from our three year global warranty.

In the unlikely event of a problem, please contact our Customer Support department (24/7) at [email protected] and one of our experts will work with you to instantly resolve your issue or arrange the repair or replacement of your em-trak product. The warranty is invalidated if the product has been incorrectly used, damaged or tampered.
Manuals & Downloads
Buoy-Tracker red declaration of conformity
Buoy-Tracker quick start guide
Buoy-Tracker EU certificate
