HIGH TRANSMIT POWER

B400 SERIESClass B

Introducing the B400, a high-powered priority transmit AIS Class B transceiver that delivers ultimate reliability, enhanced range and advanced performance across the busiest waters and open ocean.

Designed for serious sailors and commercial applications, the B400 is a self-contained, fully integrated plug-and-play unit. Suitable for internal or external installation, it has been certified weather and waterproof, and offers a integrated colour display to remove the need for additional screens. Easy to install and use, the B400 can be integrated with all common bridge systems, as well as offering a full range of advanced AIS functionality including alerts, target filters, vessel information lists, real time weather updates and more.

£1,466

Global next day shipping

Add to cart Find dealer
Print Datasheet
B400 PRODUCT HIGHLIGHTS

  • Features

    • Certified high powered AIS Class B (5W SOTDMA)
    • High Performance latest generation GPS
    • Ruggedized and impervious to extreme environments – water (IP67), damp, shock, vibration, temperatures.
    • Suitable internal or permanent external installation
    • Robust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu options
    • Integrated high definition colour display with night mode
    • ENC chart (C-MAP) with configurable AIS target overlay
    • Multiple Functionality – Collision, CPA, MOB, SAR, Vessel Lists, Text Messaging, Weather, Active Monitoring, Silent Mode, plus much more
    • Professional live AIS AtoN information display
    • Plug & Play Connectivity – Integrated WiFi, NMEA0183 & NMEA2000
    • Enhanced RF screening to protect against electromagnetic interference
    • Built-in power surge protection

  • Technical Specification

    PHYSICAL AND ENVIRONMENTAL SPECIFICATION
    Size (w x h x d) – 152 x 165 x 95mm
    Weight – 1.1kg
    Operating temperature – -25°C to +55°C
    Storage temperature – -25°C to +70°C
    Ingress protection – IPx6 and IPx7



    ELECTRICAL SPECIFICATION
    Supply voltage – 12V or 24V DC
    Supply voltage range – 9.6V – 31.2V DC
    Average current (at 12V) – 480mA
    Peak current – 4A
    Average power consumption (at 12V) – 5.8W
    Galvanic isolation – NMEA 0183, NMEA 2000, Power supply, VHF antenna port

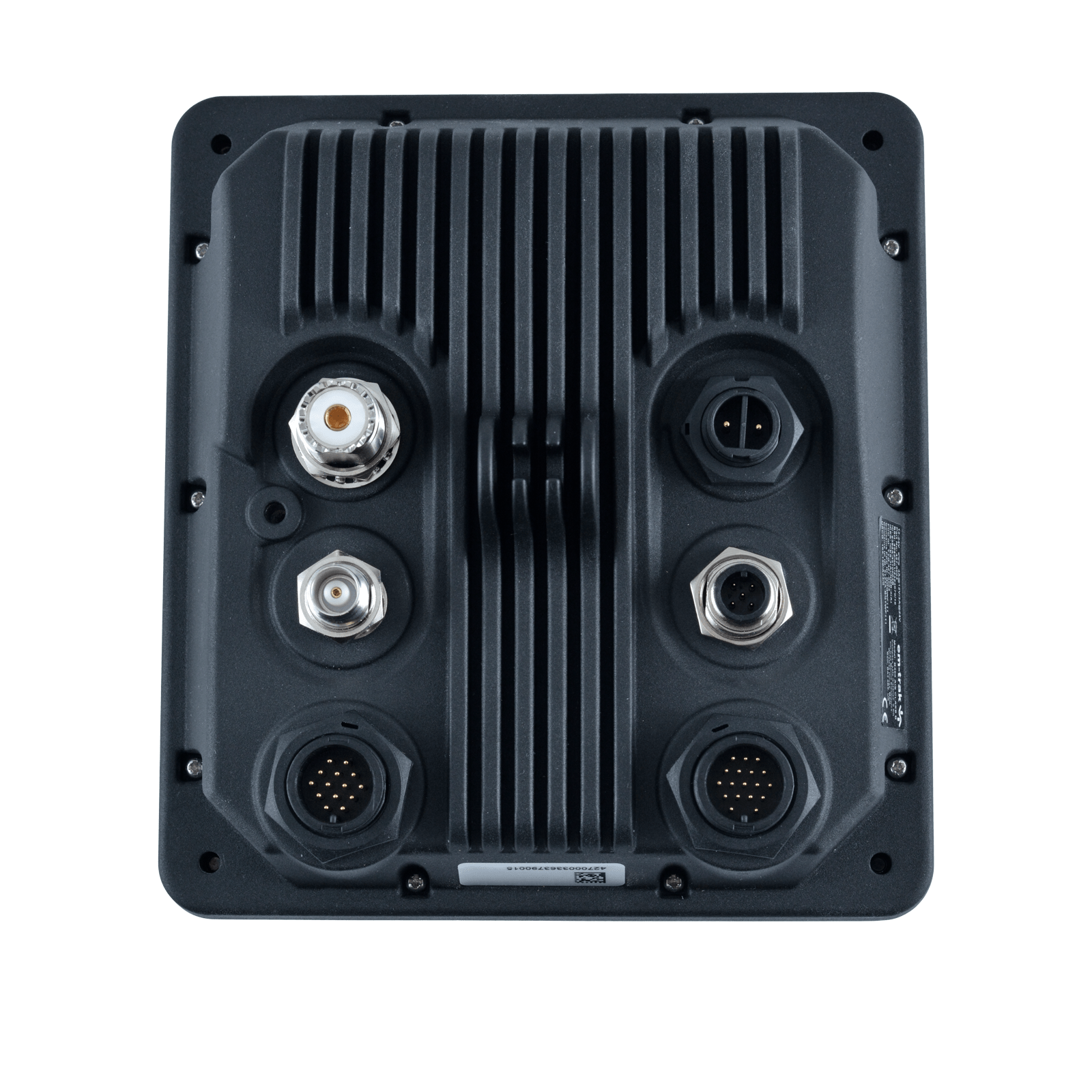

    CONNECTORS
    VHF antenna – SO-239
    GNSS – TNC
    Power – 2 way circular multipole
    NMEA 0183/silent mode – 14 way circular multipole
    NMEA 0183/alarm relay – 18 way circular multipole
    NMEA 2000 – 5 way Micro-C connector



    DATA INTERFACES
    NMEA 0183 – 3 x input ports. 3 x bi-directional ports
    NMEA 2000 – NMEA 2000 Ed 3.101, LEN=1
    Wi-Fi – IEEE 802.11 (a/b/g), client and access point mode supported (5 connections in access point mode)

    STANDARDS COMPLIANCE
    AIS standards – IEC 62287-2 Ed. 2.  ITU-R M.1371.5
    Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
    Environmental standards – IEC 60945 Ed. 4
    Serial data interface standards – IEC 61162-1 Ed 5.0.  IEC 61162-2 Ed 1.0
    NMEA 2000 – NMEA 2000 Ed 3.101
    GNSS performance standards – IEC 61108-1 Ed 2.0.  IEC 61108-02 Ed 1.0



    GNSS
    Systems supported – GPS, GLONASS, BeiDou, Galileo
    (two of any combination, three including GPS, Galileo)
    Channels – 72
    Internal/external antenna – External only
    Time to first fix from cold start – 26s



    VHF TRANSCEIVER
    VDL access scheme – SOTDMA
    Operating frequency – 156.025MHz – 162.025MHz
    Channel bandwidth – 25kHz
    Receivers/transmitters – 3 x receivers, 1 x transmitter
    AIS receiver sensitivity (20% PER) – -111dBm
    AIS transmitter power – 5W (+37dBm)



    USER INTERFACE
    Screen – 5″ 800 x 480 full colour LCD
    Buttons – Rotary encoder for selection and entry, 4 menu keys and 4 direction keys
    SD card interface – Micro SD card interface for logging and chart cards (not available from em-trak)



    GNSS ANTENNA
    Size –  85 x 70mm
    Weight – 470g
    Ingress protection – IPx6 and IPx7
    Mounting – 1 inch 14 TPI pole mount required
    GNSS systems supported – GPS, GLONASS, Galileo, BeiDou



  • In The Box

    • 1 X AIS Transceiver
    • 1 X Mounting Bracket And Fixings Pack
    • I X Power Cable
    • 1 X Data Accessory Cable
    • 1 X GPS Antenna

  • Global Support & Warranty Service

    With em-trak you can buy with confidence. If you are unhappy with your new product for any reason, within two days of receipt and subject to the product and packaging being complete and undamaged, you may return it to us for a full refund.



    We are sorry, but we cannot accept the return of any product if you have not advised us in writing within 48 hours of receiving your em-trak product, or if it has been used and or damaged or if any of the package is incomplete. All em-trak products benefit from our three year global warranty.



    In the unlikely event of a problem, please contact our Customer Support department (24/7) at support@em-trak.com and one of our experts will work with you to instantly resolve your issue or arrange the repair or replacement of your em-trak product. The warranty is invalidated if the product has been incorrectly used, damaged or tampered.

  • Manuals & Downloads

    B400 user manual EN

    B400 user manual DE.

    B400 red declaration of conformity

    B400 quick start guide
