Product support: B100 / B300 / B330

em-trak dedicated customer support is available 24/7 globally to help you get the most from your em-trak product.

Installation

Installing your transceiver

To enable GPS data output from your B100:

  1. Download the aisb.cfg file to a blank SD card (any card up to 32GB is fine).

  2. Turn off the B100, insert the SD card, and power it back on.

  3. Wait for the LEDs to stop flashing—then switch the unit off and on again.

  4. Open our configuration software, ProAIS2 and choose the GPS sentences you want to send out, and click “Write Configuration.”

That’s it! Your B100 will now output GPS data via both high and low speed NMEA ports.

Don’t worry—this won’t change your vessel details (MMSI, name, etc.).

Yes if the GPS antenna has the following specifications:

  • Male TNC connector
  • Active Antenna
  • 10m RG-58 cable
  • Gain of 25dB
  • Bias voltage of 3.3V – 5V (centre pin positive)

The cable length should not exceed 30m.

If you need to purchase a compatible GPS antenna, the GPS-100 is available from our website here – https://em-trak.com/accessories/gps100/

What Do I Need Before Installing My B100, B300, or B330?

To get started, make sure you have the following:

VHF Antenna & Cable

  • A VHF antenna tuned to 162 MHz is required for AIS transmit/receive.

  • Use RG-58 or RG-8X cables for short runs; RG-213 for longer distances.

  • Connector type: SO-239 (mates with PL-259).

Power Cable

  • Comes with a 2m power/data cable.

  • If extending, ensure the cable handles up to 2A peak / 200mA average.

Chartplotter Connection

  • Connect the AIS to your chartplotter using NMEA 0183 at 38,400 baud (may be listed as “NMEA HS”).

  • Enable AIS target display in chart settings.

Or, for NMEA2000 setups, connect the AIS via a compatible NMEA2000 cable (ask your dealer for options).

Configuration of the AIS is carried out using our configuration software proAIS2. A guide on how to use proAIS2 in the FAQ section under How do I use proAIS2?

A copy of proAIS2 is available in the Configuration Software section

Troubleshooting

Troubleshooting your transceiver

For AIS transceivers it takes 6 minutes for Ship’s Static Information such as Name and Call Sign etc to be transmitted. All data will not be populated at the 1st transmission.

You may occasionally see ‘TX Attempt failed (msg 18)’ or ‘CP busy’ appear in the Messages field of proAIS2.

The B100 operate using CSTDMA – a ‘carrier sense’ system. They have to find a free slot to transmit in by listening just before transmission to check the slot is empty.

When a transmission is scheduled a block of 10 potential slots is selected. It will attempt to transmit in the first of these slots. If the slot is busy the ‘CP busy’ (meaning ‘candidate position busy’) message will be output. It will then try again in the next slot, and so on for the remainder of the 10 slot block. It is quite normal to see ‘CP busy’ messages in an area where other AIS vessels are operating. It simply means the first slot selected was busy. 99% of the time the transmission will be successful in one of the other 9 slots.

So long as the indicator remains green transmissions are occurring on schedule. If transmissions can’t be made because the AIS environment is simply too busy the indicator will turn amber.

The following LED status modes will be available to assist in the quick diagnosis of issues:

1 – Solid Red and amber LEDs: no MMSI number programmed and/or no DC power detected.

2 – Flashing amber LED: the unit is waiting for a GPS fix.

3 – Flashing Red LED: VSWR error.

4 – Solid Red: Hardware Error

If you see any different LED status lights displayed, or if you have any questions about the examples shown above, then please contact the Customer Support Team for advice at: support@em-trak.com . Alternatively, connect your B100, B300, B330 to the latest version of ProAIS2 to check the configuration of your unit.

The RX 1 / RX 2 DSC start / Stop message is a completely normal message and is not an indication of a fault or problem.

Essentially, it’s just a text message indicating when one of the AIS receivers has started/stopped a DSC channel management listening period. Class B equipment (like the B100 and B300) is required to listen to channel 70 (The DSC channel) periodically at specific times defined in the standards, for DSC channel management commands. As Class B lacks the third receiver necessary to do this full time it is achieved by occasionally switching an AIS receiver to this channel.

If you’re having difficulty displaying AIS on your chart plotter, please follow the instructions below.

  1. Some old Chart plotters do not support AIS so you’ll need to confirm compatibility by checking the manual for reference to AIS and/or VDM.
  2. Check the receiving port can be configured to 38400 baud on the chart plotter.
  3. Make sure it’s connected correctly by simply connecting the NMEA0183 Transmit wires on the B100 (Brown is TX+, Blue is TX-) to the corresponding NMEA0183 Receive wires on your compatible Chart plotter device. You’ll need to connect the positive wires together and the negative wires together. For example:
    • TX+ to RX+
    • TX- to RX –

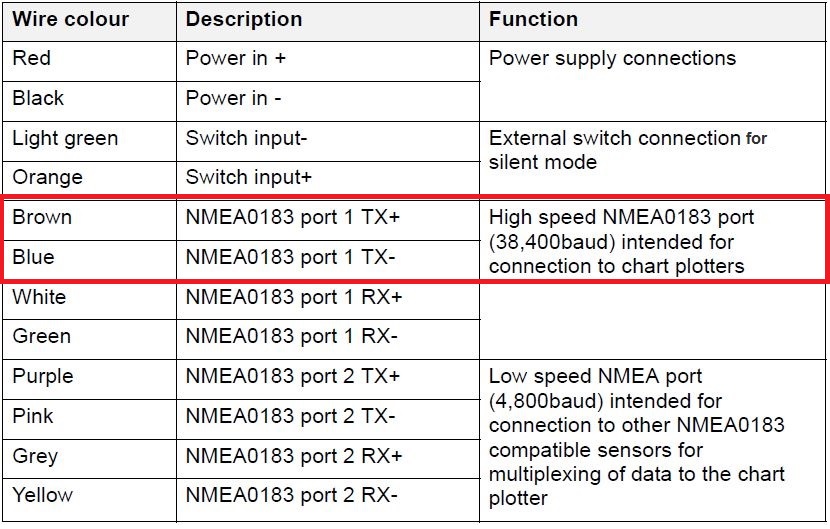

The user manual details which cables do what, but for your reference, please see below for a table explaining the connections on the B100.

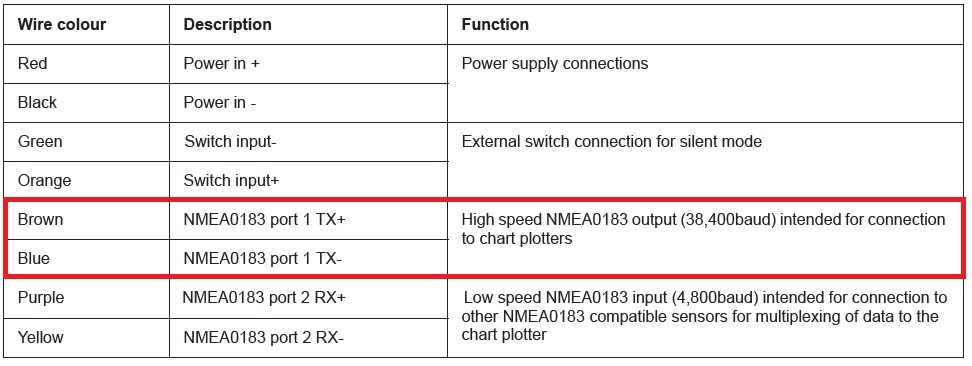

Please see below for a table explaining the connections on the B300.

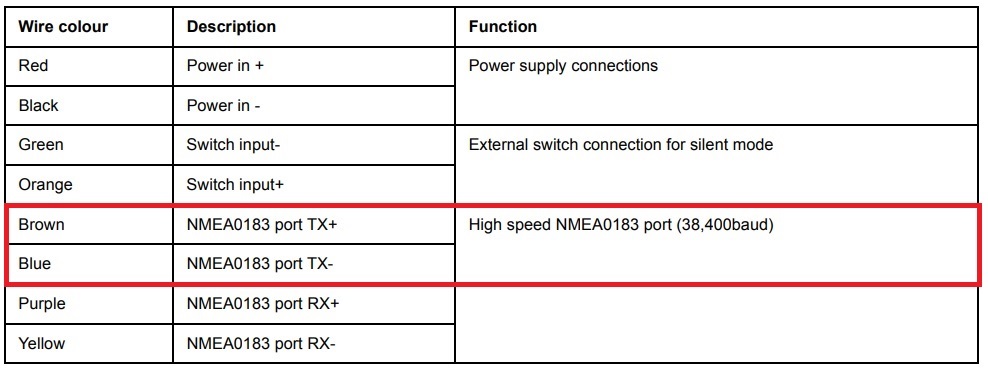

Please see below for a table explaining the connections on the B330


If you need any further assistance, please contact us at support@em-trak.com and we’ll be glad to help.

Please see the link below for a basic fault finding guide for the em-trak B100. The user manual for this product does cover typical faults associated with installation and setup of this product, however this guide will help you confirm if the unit itself has any operating / system problems.

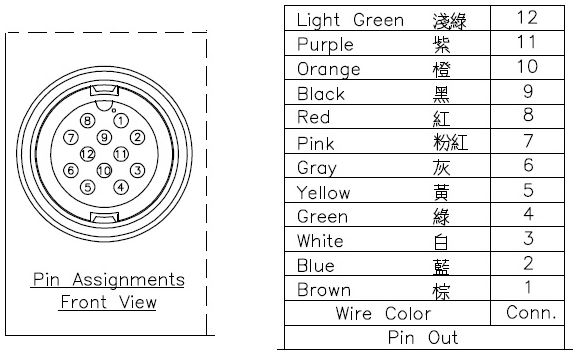

The pin-out for the B100 power/data cable is below:

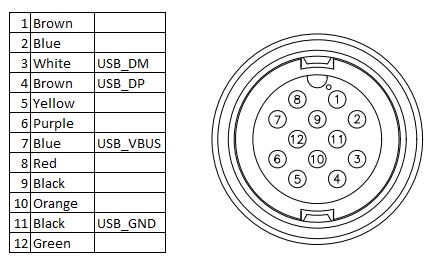

The B300 / B330 power/data cable pin-out is detailed below:


Only the USB signals are named above; the other signal names are already listed in the relevant user manual.

The data captured in a log file will help us diagnose any fault. Can you please follow the instructions below:

  • Connect the unit via USB to a PC or laptop and apply 12-24V
  • Open up proAIS2 configuration software
  • Connect to the AIS unit
  • Go to the Serial Data tab
  • Select Log To File
  • Save the log to a location
  • Select the Diagnostics tab
  • Leave the unit transmitting for a duration of 30 minutes.
  • Stop logging and then send us the log file via email to support@em-trak.com

AIS tracking sites get their data from AIS receivers that are installed along coastlines as well as satellites. Satellites receive a very low percentage (<2%) of transmissions from standard AIS transceivers and have many blind spots. Therefore tracking sites do not provide full coverage, at times their reception range is variable, may drop out entirely and their data refresh rate cycles and latencies can be very slow.

The best way to check your AIS is working correctly is to ask a nearby vessel with AIS if they can see you.

Product change notifications

Product change notifications

The RF synthesiser used by the B100 / B300 / B330 Class B CS AIS transceivers is now obsolete.

This change notification is to advise that an alternative component has been fitted, and that the software has been updated accordingly to work with the new hardware.

Software version: 040200.02.03.00

Please download the software update package here – https://em-trak.sharefile.com/d-s8699a16db41a4a5781337cdc3a673dbc

Certification

Certification for the B100 / B300 / B330

The Declaration of Conformity for the B100 can be downloaded below.

The Declaration of Conformity for the B300 can be downloaded below.

The Declaration of Conformity for the B330 can be downloaded below.

FAQ

Frequently asked questions

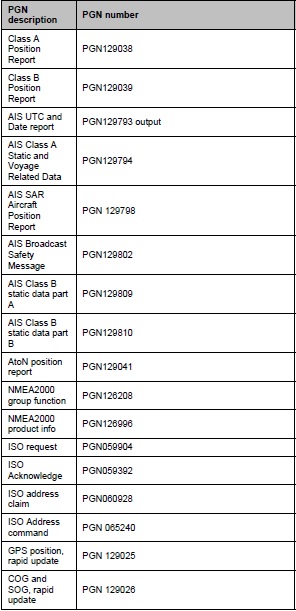

The B100/B300/B330 outputs AIS-related PGNs. The full list is attached for reference.


The vicinity of New Zealand/Australia is known to cause problems with GPS fix when SBAS is enabled.
For our vendors in that part of the world we supply AIS with SBAS disabled for that reason, but generally SBAS is a reliable and beneficial enhancement to precision, so is enabled by default.
If a customer complains of “position drift” or “GPS inaccuracy” You can try instructing the customer how to disable SBAS manually. It can be done by sending the following sentence from the proAIS2 Serial Data tab:
$PSMT,0,0,0,1,setsbasmode 0,0*59

You can then verify that SBAS has been disabled by checking the GNSS status tab in proAIS2. When SBAS is deactivated, you should see only Green and Blue bars on the chart.

If the customer wishes to restore SBAS (I suggest not in the South Pacific) then the following configuration will do that:
$PSMT,0,0,0,1,setsbasmode 1,0*58
However it may be simplest to leave it disabled. At sea with a good population of visible satellites, uncorrected GPS is normally sufficient for AIS operation, and is explicitly prohibited for Class A in any case.

Various applications will replay or display the AIS data that is logged by the B100 to the SD card. An online search for something like “replaying NMEA log files” provides multiple suggestions, for example:

  • ShipPlotter
  • Rosepoint
  • NavMonPC
  • GPS Visualizer

The B100 logs the data as a text file, so anything that supports AIS data in that format will work.

High VSWR is indicated by a flashing red LED. This can be caused by multiple factors, including:

  • Poor connection or fault with the VHF antenna/cable/connectors
  • VHF antenna is unsuitable for AIS frequencies (162MHz)
  • VHF antenna is mounted in an unsuitable location (where nearby obstructions or metal structures will interfere with the signal)

Please try checking each of the above to address the problem. If this doesn’t resolve the issue please contact support@em-trak.com

The following configuration command will enable the B330 to multiplex any received NMEA 0183 data over Wi-Fi:

$PSMT,0,3,0x2C75B2FA,0,nvseti “nmea1mux”^2C0x2^2C2^2C0^2C0,0*78

It can be sent using the Serial Data tab of proAIS2.

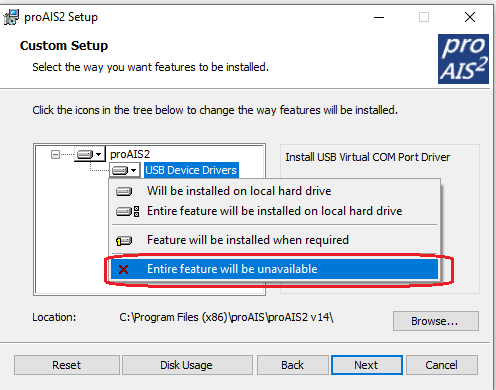

Custom Install

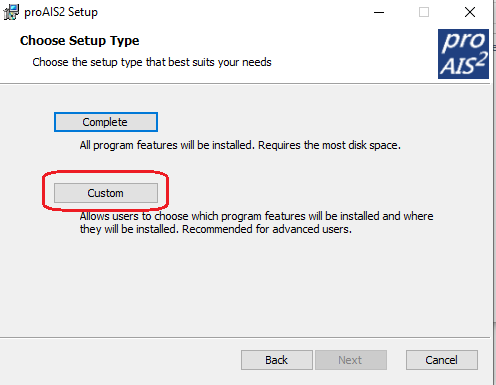

If you’re unable to install proAIS2 on your Windows PC or laptop. We would advise making sure all outstanding windows updates are installed. Alternatively, you can select the option of not installing the USB driver during the installation as shown below by choosing Custom and selecting Entire feature will be unavailable under USB Device Drivers. This will allow your laptop to connect to the internet and download the drivers automatically via windows update.

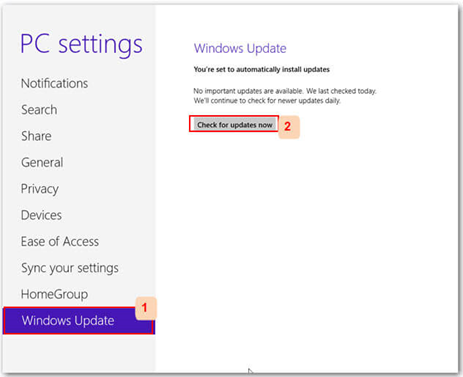

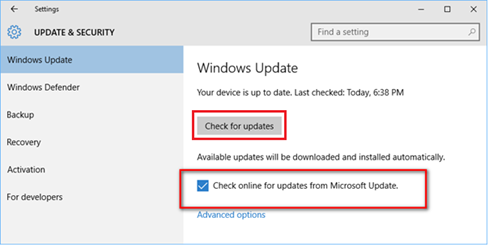

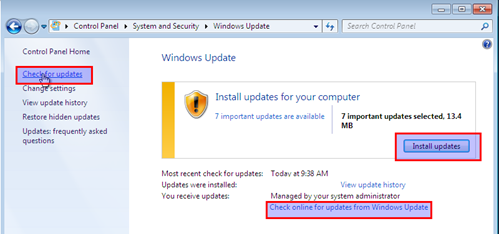

Installing Outstanding Windows Update

Please download and install all outstanding Windows UpdatesYou will need to go into the Control Panel for each operating system as shown below

Windows 10

Windows 8

Windows 7

If the problem persists please contact support@em-trak.com for assistance.

Establishing a connection

To connect to proAIS2 you will need to select the relevant device (usually ‘AIS Class B Transceiver’ for Windows and ‘AIS Virtual COM port’ for macOS) from the drop down menu at the top of the screen before pressing the ‘Connect’ button. If there is no suitable device to select, please ensure the USB cable is securely connected and that the appropriate LEDs are illuminated to indicate it has initialised. If you are still unable to connect to proAIS2 after verifying the connection please contact support@em-trak.com for assistance.

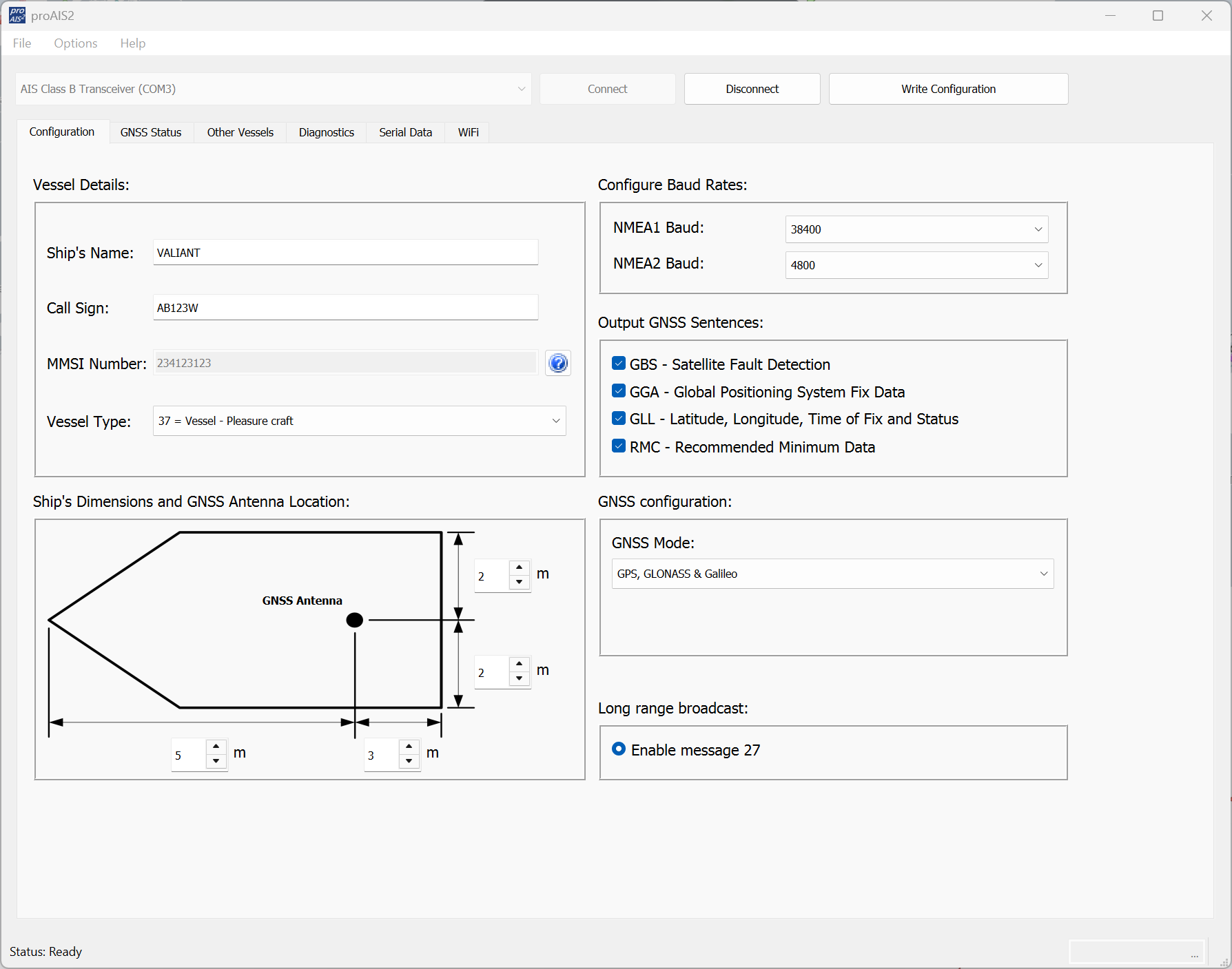

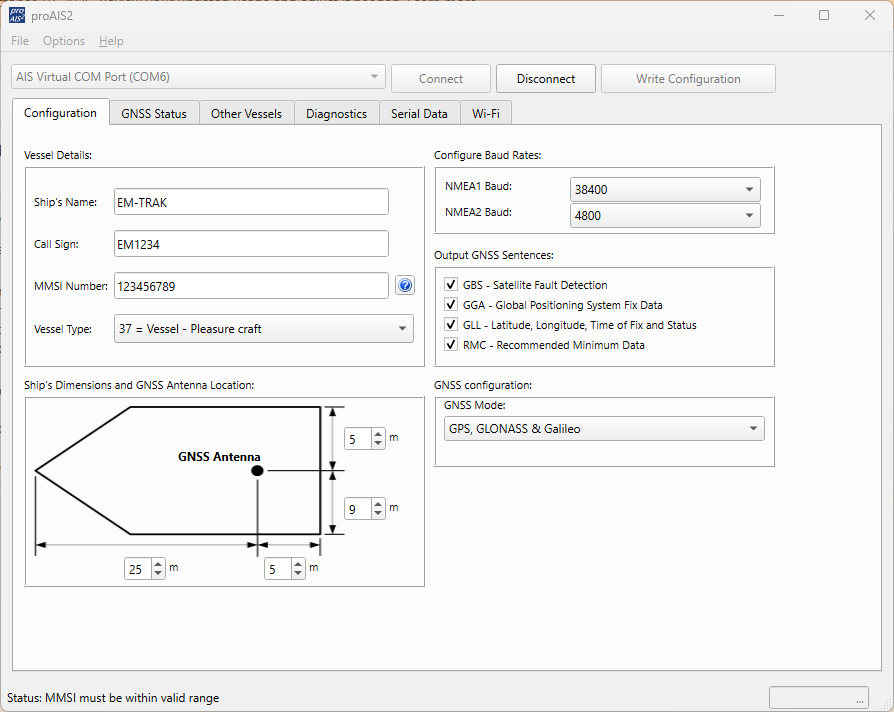

‘Configuration’ tab

Vessel Details:

You will need to populate these fields using the details from your ship license.

The MMSI number will be the same as the one issued for your VHF radio. If you have not been issued with an MMSI number you will need to contact your local authority. Please contact support@em-trak.com if your MMSI number has already been configured and you need to change it. The remaining vessel data can be edited using proAIS2 once configured. Configuration of the call sign is not required if you do not have one.

Ship’s Dimensions and GNSS Antenna location:

Enter the position of your GPS antenna (in metres) in reference to the four dimensions of your boat. If your unit is using its internal GPS antenna you will need to enter the position of your unit.

Configure Baud Rates:

This setting controls the speed at which data is output from the NMEA 0183 port(s). You will need to ensure it matches the baud rate of the connected equipment (for example, a chartplotter or VHF radio). Typically, chartplotters require 38,400 baud and VHF radios require 4,800 baud. AIS data should not be configured at baud rates lower than 38,400 – this is because messages may be dropped when travelling through areas of high traffic where there is a lot of data to process.

Output GNSS Sentences:

Tick the boxes as required to output the GPS sentences over the NMEA 0183 port(s). This will usually be defined by the external equipment you’re connecting to, but if unknown RMC is typically required to provide position and SOG/COG. If you require GPS data (PGNs) to be output over the NMEA 2000 port you will need to tick the RMC box.

GNSS configuration:

This setting controls the combinations of satellite constellations which are used to get a position fix. It is not supported by the B100, B300, or B330 as they use GPS only.

Long range broadcast:

This setting enables/disables the transmission of Message 27, used for long range detection. It’s transmitted on a different channel (frequency) and typically received by satellites. This proAIS2 feature is supported by Class B SO products only.

Please note that any applied configuration will need to be saved by pressing the ‘Write Configuration’ button.

‘GNSS Status’ tab

Use this tab to check the performance of your GPS antenna. This is particularly useful if you’re unsure where you need to mount your unit if it uses an internal GPS antenna. A good GPS fix is 30-40dBHz, although this may be difficult to achieve if your unit is using an internal GPS antenna and there’s an obstruction interfering with the signal.

‘Other Vessels’ tab

This tab shows the vessels in range. The vessels can be sorted by selecting the appropriate parameter at the top of the field.

‘Diagnostics’ tab

Checklist:

If your unit is fully configured and installed correctly every parameter should have a green tick against it.

Internal Data:

This field displays software versions, serial numbers, and operational/performance data. You may be requested for this information if you contact em-trak customer support for assistance.

‘VSWR’ is Voltage Standing Wave Ratio, and is an indicator of VHF antenna performance. A good VSWR is 3:1 or less, and can be affected by factors such as length or quality of cable and type of VHF antenna connected. If it exceeds the threshold a red cross will appear against AIS Antenna in the checklist field.

‘Power supply voltage’ reports the voltage received at the unit. There may be a small drop in voltage between the battery / power source and the unit, depending on the length of cable. External power (12-24V) is required for the unit to receive and transmit.

Status:

Reflects the LED indicator status on your unit. Select the ‘Silent Mode’ button to enable / disable silent mode, where the blue LED will illuminate if enabled.

Statistics:

Displays the number of messages that have been received and transmitted.

Messages:

Occasionally messages will be output in this field depending on the operational status of your product.

Class B/CS products routinely output ‘CP busy’ or ‘TX attempt failed’ messages; these are normal and relate to the way that Carrier Sense operates, where it needs to listen out for a free slot before it can transmit. You may also see a message relating to RX1 / RX2 and DSC; this is also normal and indicates when one of the receivers is monitoring the DSC channel on a regular, time-shared basis.

Alarms:

This field displays all active alarms. The alarm will be indicated with a corresponding red LED, either flashing (high VSWR) or solid (other hardware-related failure). If the conditions change and the alarm is no longer active, it will disappear from the list and the red LED will stop.

‘Wi-Fi’ tab

Use this tab to configure the W-Fi interface on your unit. The configurable parameters will differ between the B330 / B360 products and the newer B200 / B900 Series products; the specific details are covered in the product manuals. This tab is only available on products that support Wi-Fi.

As with the vessel data configuration, you will need to press the ‘Write Configuration’ button to save any changes.

‘Serial Data’ tab

Raw serial data is output on this tab. It can also be used to log the serial data to a file (which may be requested for diagnostic purposes if you contact em-trak for support), and there’s a field to enter command(s), if you have requested a configuration that isn’t supported directly by proAIS2.

‘VDR’ tab

Your position is automatically logged every time your vessel moves more than 10 meters, and this tab can be used to download that data from a selectable date range. The VDR feature is only supported on Wi-Fi products, and this proAIS2 tab is currently available for the B330 and B360 only.

If you have a question relating to proAIS2, and it isn’t covered in this article, please contact support@em-trak.com

If you’re using the default Wi-Fi configuration on your B330 it will be identified as ’em-trak’ on the latest version of the Navionics Boating app.

Otherwise, please follow the steps below to add the B330 manually:

  • Connect to your AIS SSID from your Android or iOS Wi-Fi Settings page
  • Once connected, open up the Navionics app
  • Next select Menu on the Navionics app
  • Select Paired Devices
  • At the bottom of the page select ADD DEVICE
  • Under TCP enter a name
  • Enter your Host (IP address)
  • Enter your Port number
  • Click Save
    The app should start receiving data

If the internal GPS antenna is used, the AIS transceiver should be mounted in a location with a clear sky view. The internal GPS antenna is mounted below the top surface of the transceiver enclosure.

If you’re unable to get a GPS fix where the unit is installed, we would recommend getting an external GPS antenna. You can purchase the GPS100 from our website here – https://em-trak.com/accessories/

User manual / guides

Transceiver user manual / guides

Please follow the link below to download the latest em-trak B100 user manual.

Please follow the link below to download the latest em-trak B300/B330 Quick Start Guide

Please follow the link below to download the latest em-trak B100 Quick Start Guide

Please follow the link below to download the latest em-trak B330 user manual in Dutch.

Please follow the link below to download the latest em-trak B330 user manual in German.

Please follow the link below to download the latest em-trak B330 user manual in English.

Please follow the link below to download the latest em-trak B330 user manual in Spanish

Please follow the link below to download the latest em-trak B330 Quick Start Guide

Please follow the link below to download the latest em-trak B330 user manual in French.

The GPS100 can be pole-mounted or surface-mounted. Full instructions are provided in the attached installation guide.

Please follow the link below to download the em-trak B100 user manual.(German)

Please follow the link below to download the em-trak B100 user manual (French)

Please follow the link below to download the em-trak B100 user manual. (Latin American Spanish)

Please find attached a pdf copy of the latest em-trak B300 user manual

Please follow the link below to download the em-trak B300 user manual (French)

Please download the B300 manual (LAS) below.

Configuration software

Transceiver configuration software

proAIS2 040300.01.24.02 for Windows and macOS can be downloaded here – https://em-trak.sharefile.com/d-s39912f8c0f074b76bfc4eae7039ffa02

This version addresses an issue where the MSVCP140_1.dll file was missing in some Windows installations.
