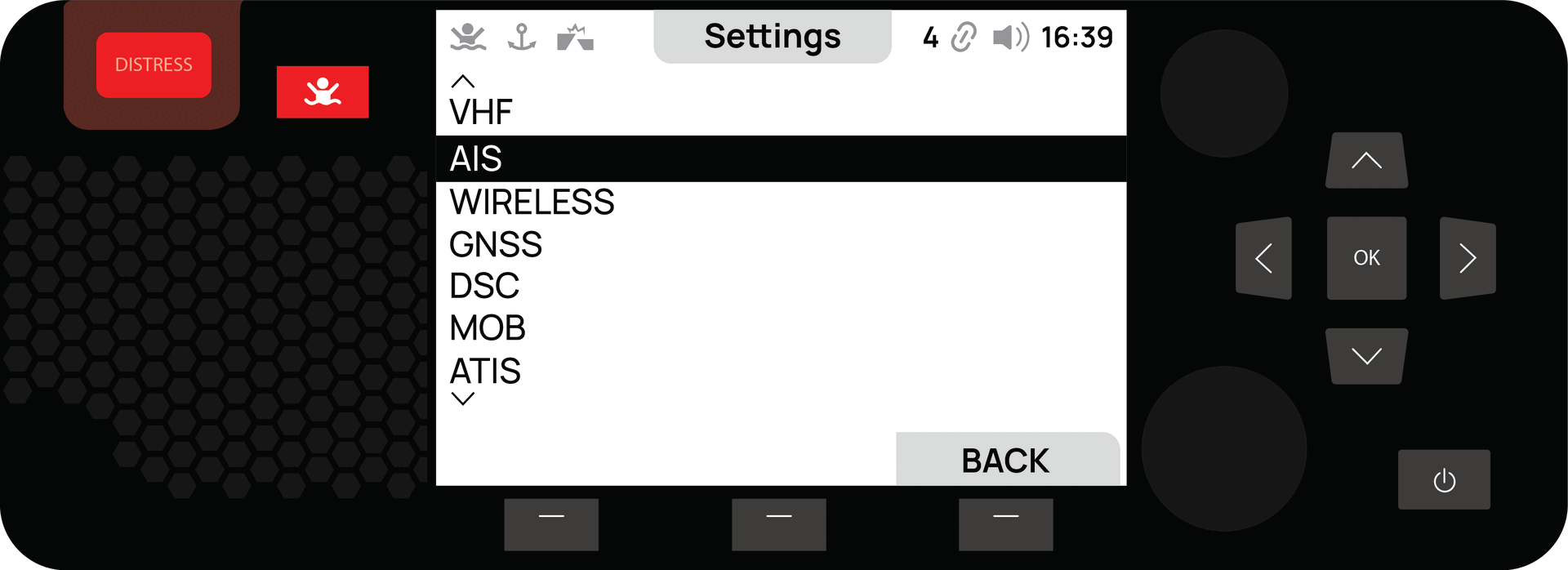

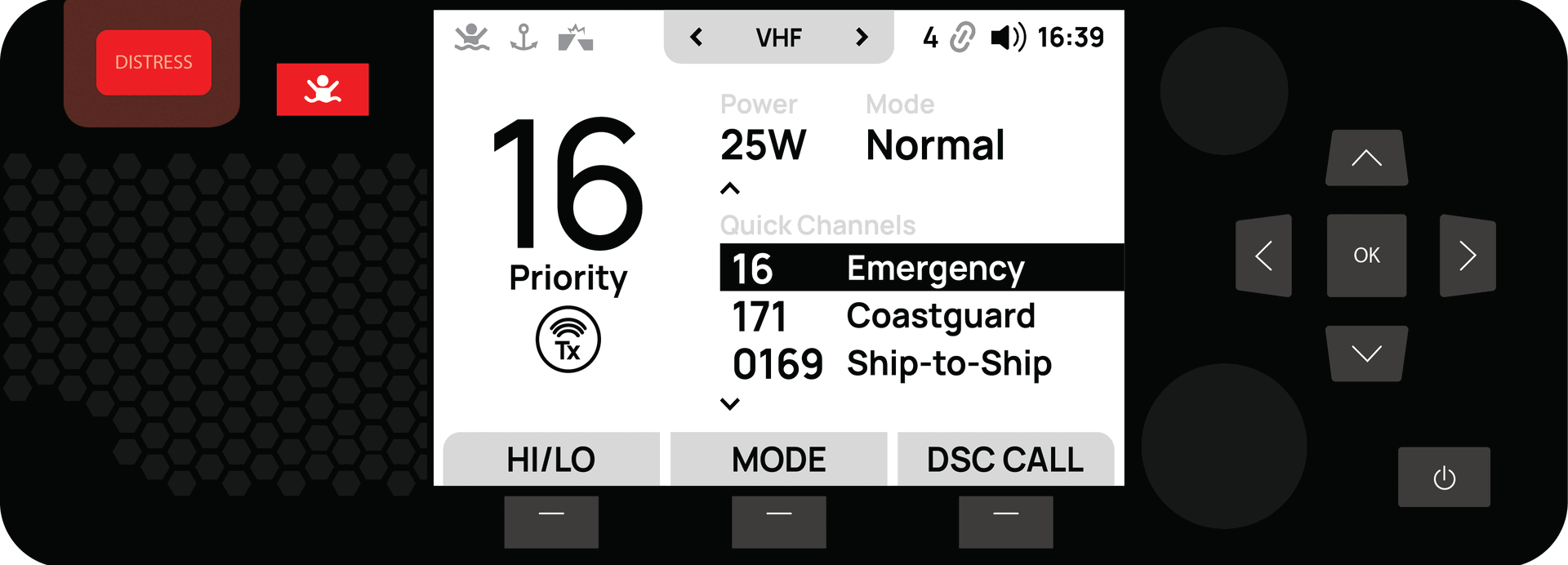

How do I switch between low and high power settings?
How do I switch between low and high power settings?
How do I set up quick-access channels on the X100?
How do I set up quick-access channels on the X100?
How do I switch between low and high power settings?
How do I switch between low and high power settings?

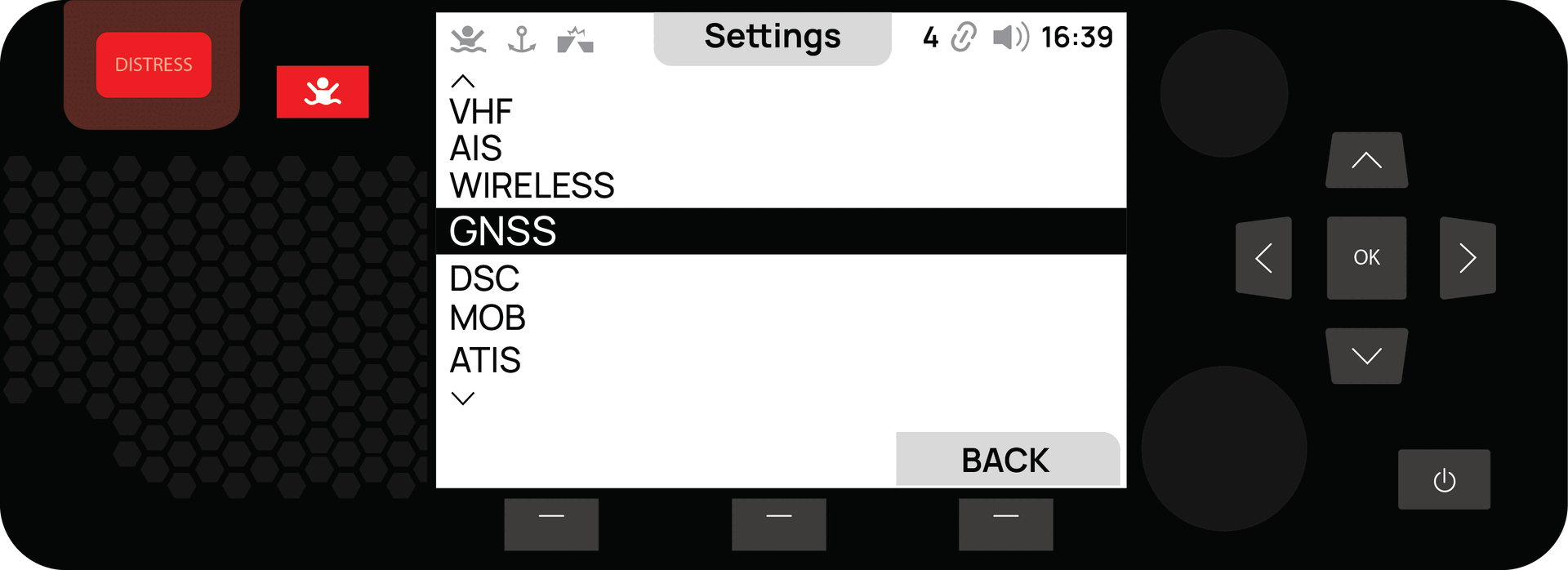

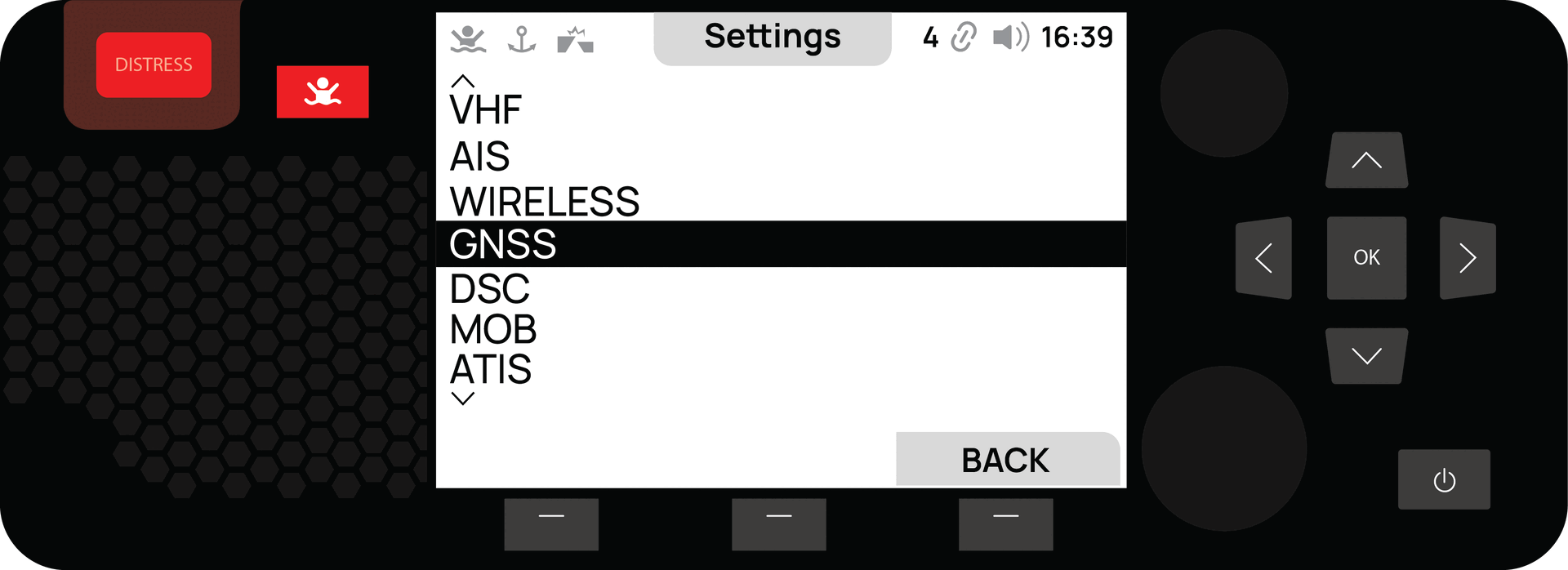

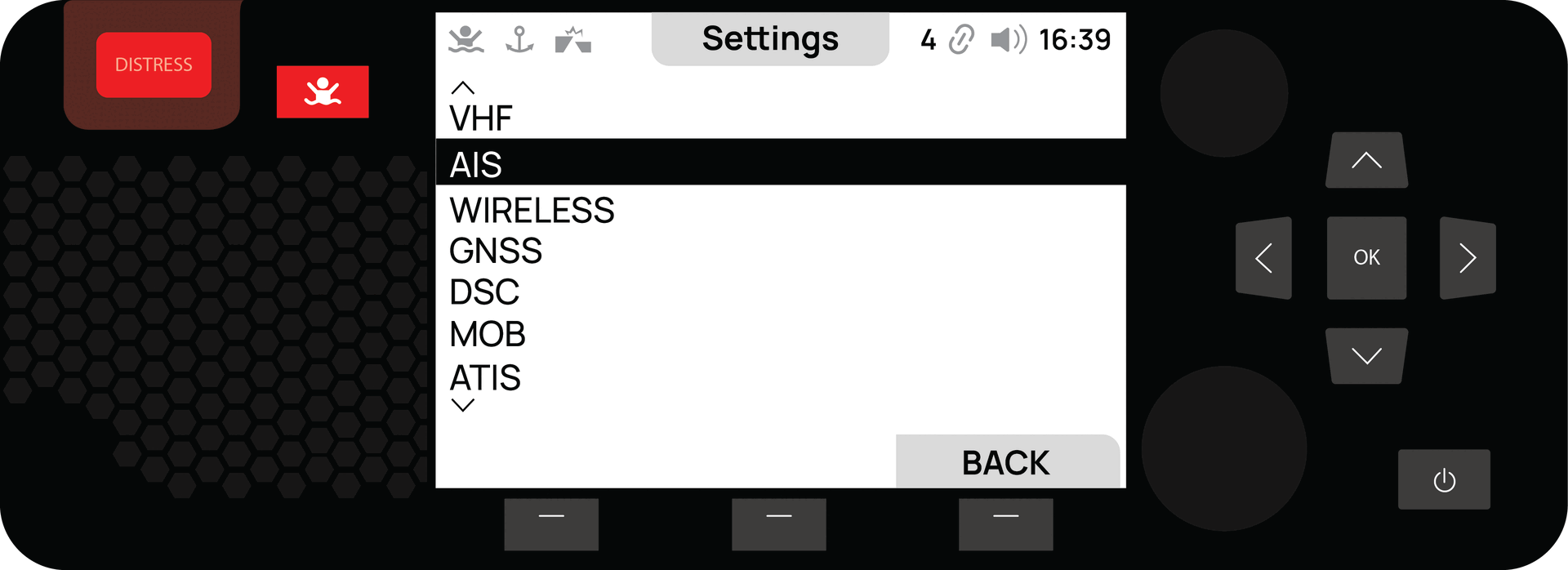

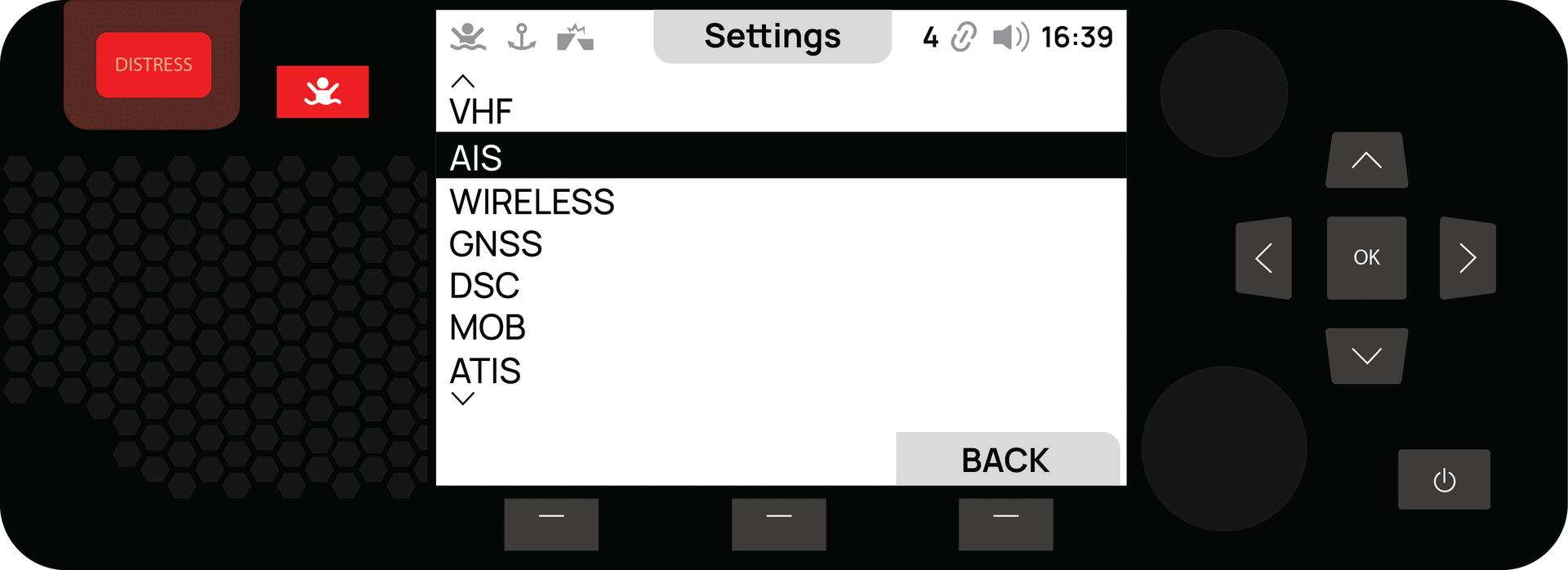

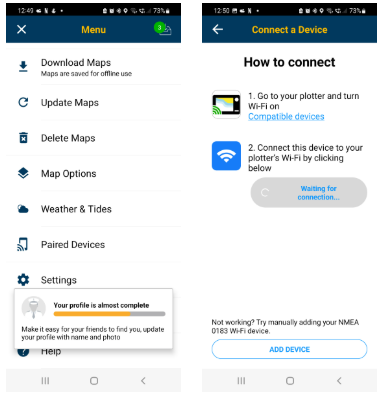

How can I output GNSS data?
How can I output GNSS data?

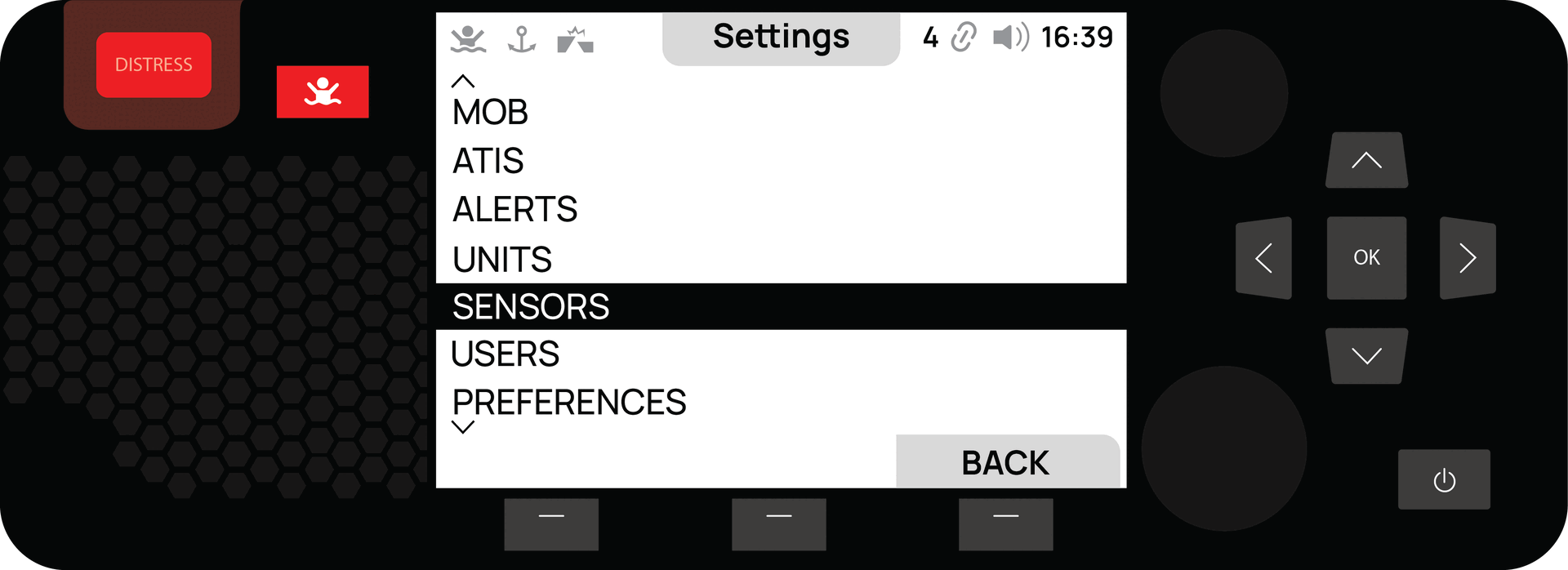

How do I change the baud rate on my X100?
How do I change the baud rate on my X100?

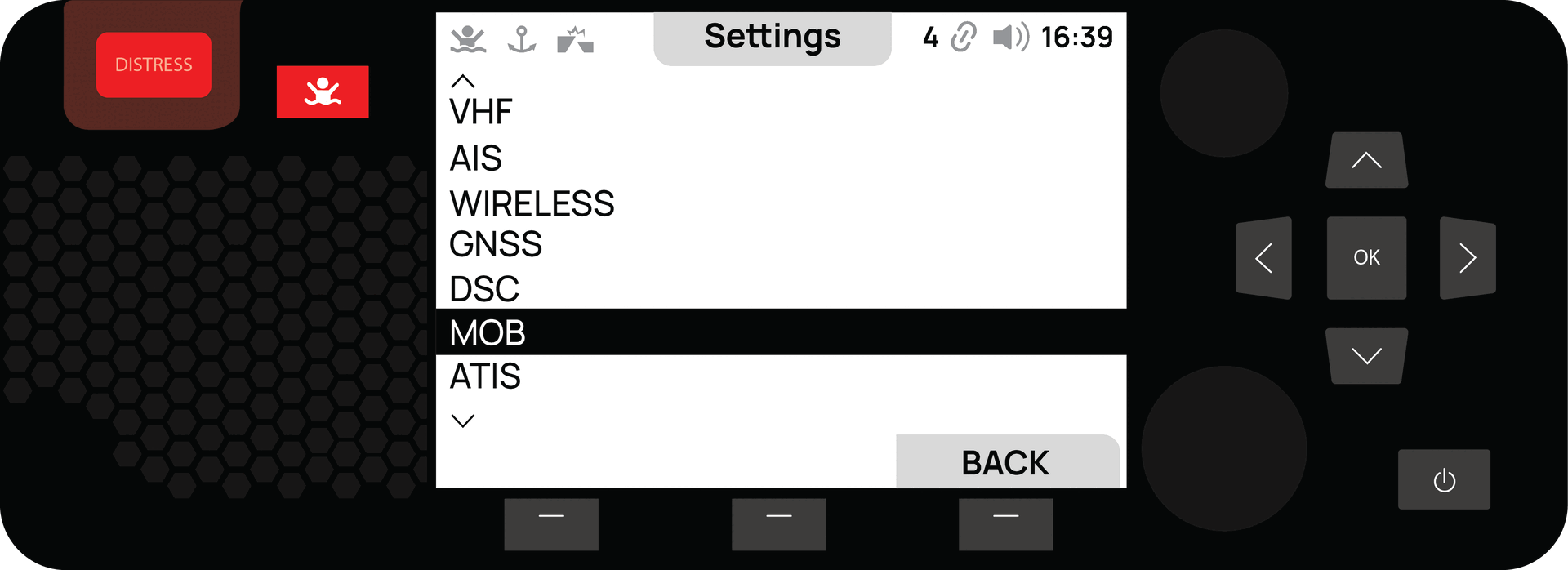

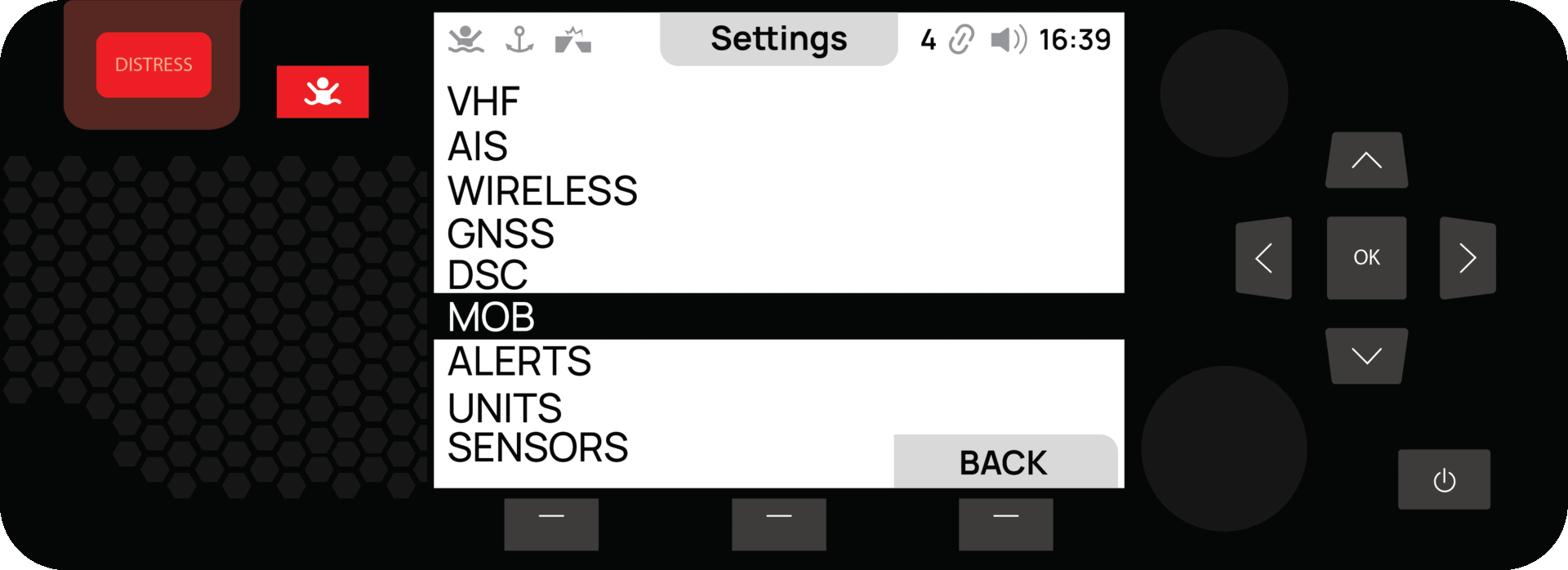

What is the MOB (Man Overboard) feature, and how do I enable it?
What is the MOB (Man Overboard) feature, and how do I enable it?

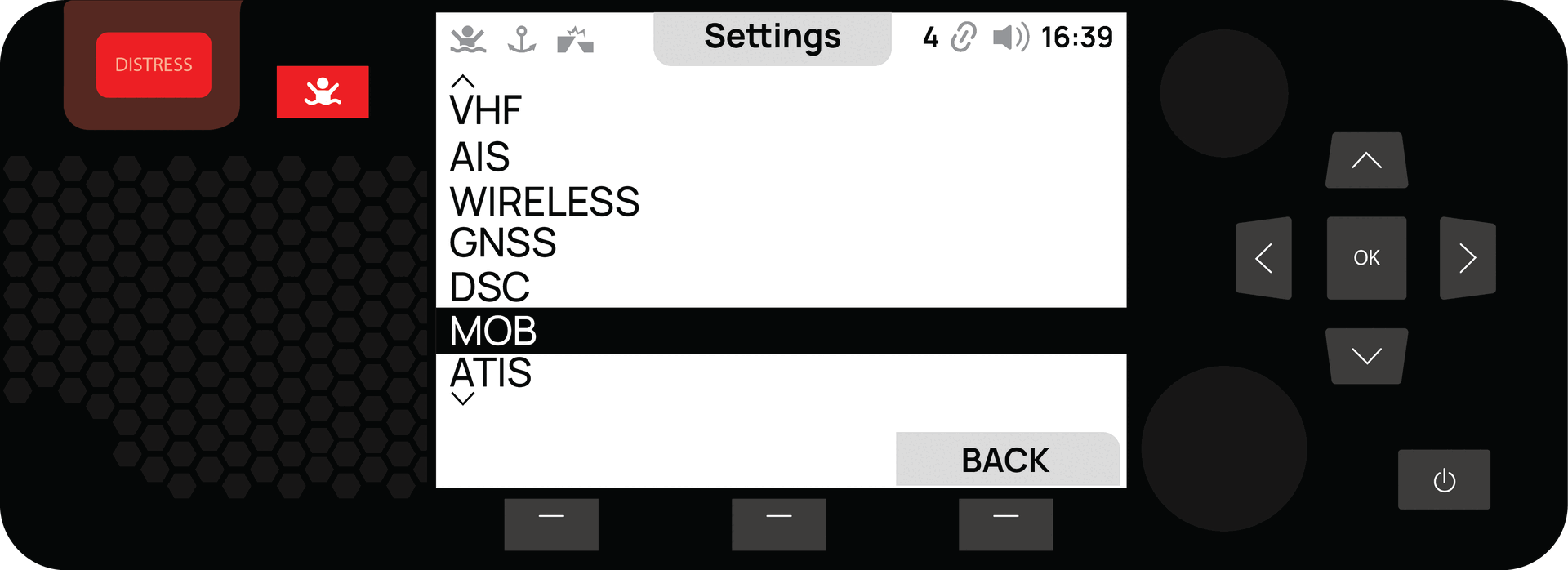

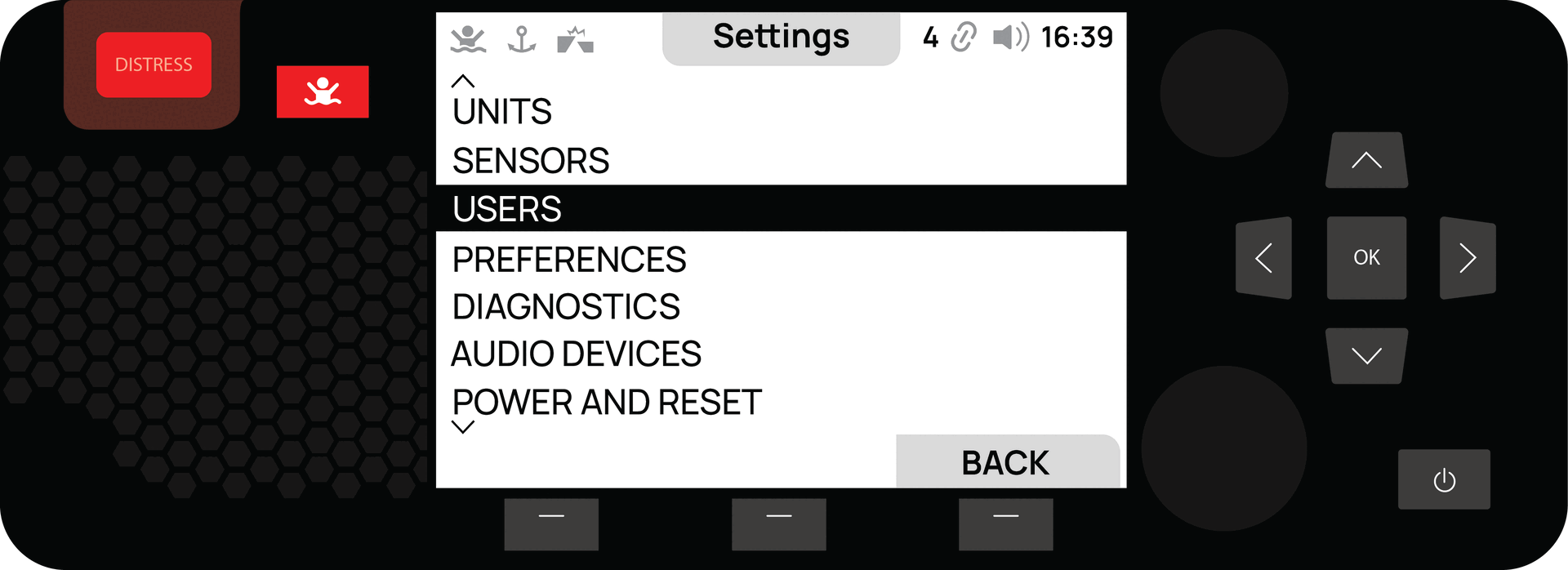

How do I establish a secure connection between the X100 and my device?
How do I establish a secure connection between the X100 and my device?

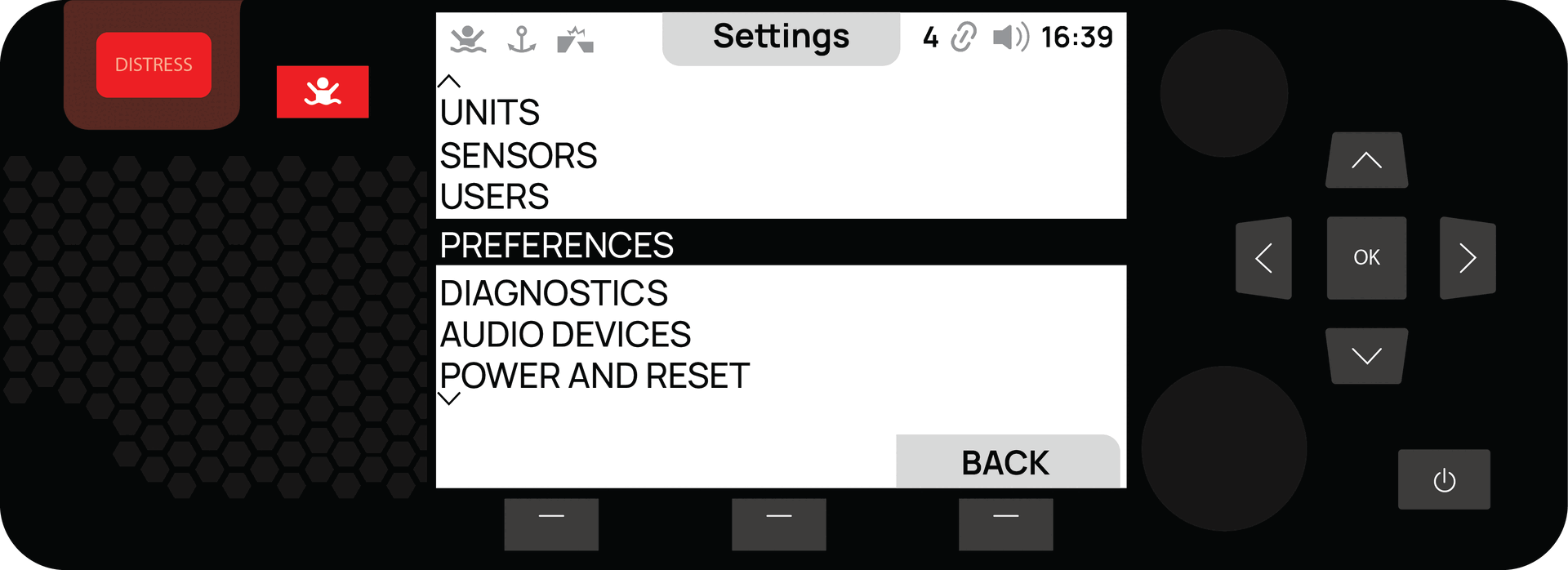

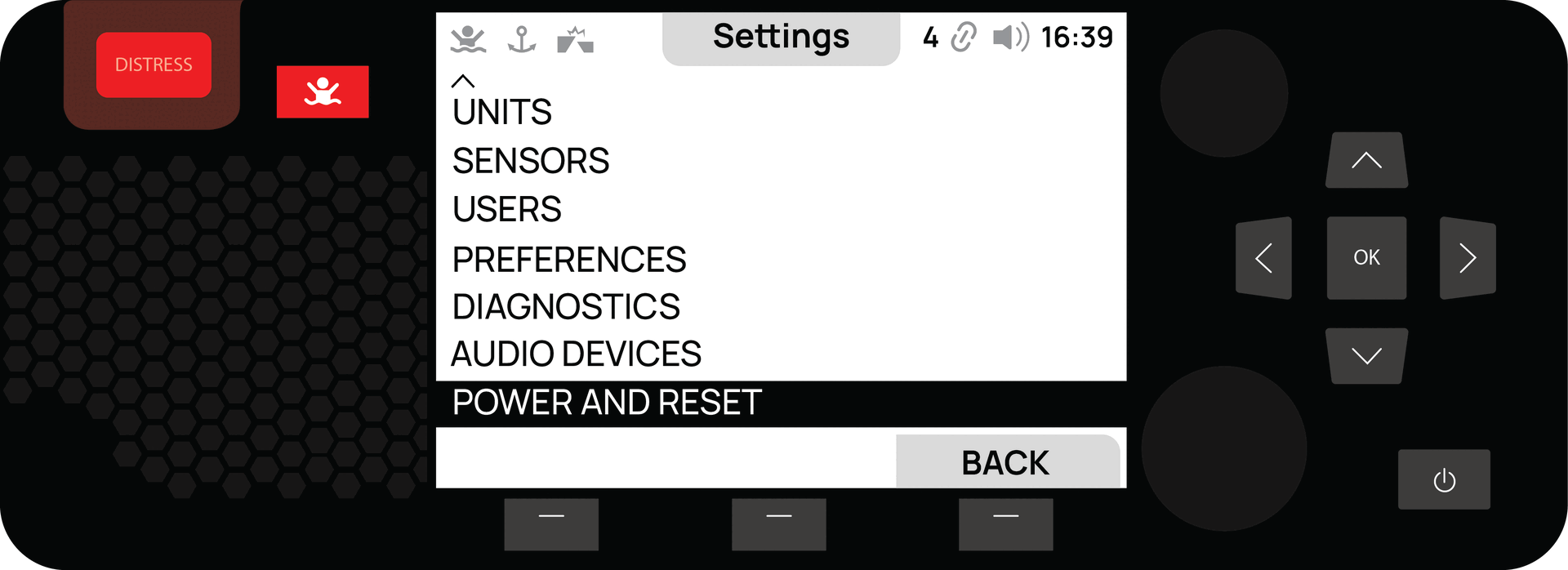

How can I access the diagnostics page for system checks?
How can I access the diagnostics page for system checks?
Before you begin
Before you begin with your X100
Before you begin
Before you begin
WARNING
Before you begin, make sure to read the accompanying reference guide, which contains important regulatory information relevant to the installation and use of the equipment, you can find it here.
Take your time and read all of the information in this section and prepare what you need to before you attempt to install and use the X100.
Safety information
Safety information
Various symbols are used in this manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents.
WARNING
Indicates a situation where improper use may damage to the product and could put the user at risk.
CAUTION
Indicates a situation where improper use may cause important features of the product not working properly.
INFORMATION
Information, hints and advice for better understanding of the instructions to be observed in the operation of the device.
Licensing
Licensing
Before using your radio, make sure to check if you need a licence. Some regions may require you to have the following:
Ship station VHF licence.
Operator’s licence.
MMSI number.
Obtaining an MMSI Number
Obtaining an MMSI Number
An MMSI number is like a phone number—it’s unique to your vessel. If you already have an MMSI number and you’re outside the United States, you can enter it into your radio the first time you use it. If you don’t have an MMSI number, keep in mind that you won’t be able to use your radio.
In the United States, your dealer or installer should enter your MMSI number along with any other necessary static data for you.
For further details, refer to the relevant Telecommunications Regulatory Body.
Click here and enter your location for information how to obtain an MMSI number.
INFORMATION
The MMSI number can only be entered once, if the number is entered incorrectly or the MMSI number needs to change, the unit will require re-programming by an authorised em-trak Marine Electronics Limited dealer.
Product Overview
Product Overview
The X100 is a Class D DSC/VHF radio equipped with a class B transceiver and Digital Selective Calling (DSC) capabilities. It seamlessly integrates with the Connect-X app, compatible with both iOS and Android devices. The app provides all the functionality of the X100, combined with the convenience of having it right in your pocket.
Here’s what the X100 can offer:
The integrated VHF LinkTM turns any compatible iOS or Android device into a pocket sized VHF radio. You can roam around your boat and still be in touch.
Digital Selective Calling (DSC) calling. This makes it easy for you to call other radios and share your position while asking theirs. If you get into trouble the X100 also allows you to send a distress call, distress calls are received by any radio within range.
The Global Positioning System (GPS) shows your real time position on screen. Your position data is shared via the NMEA (National Marine Electronics Association) 0183, NMEA2000, and Wi-Fi.
An optional connection for a GPS antenna.
VHF and DSC functionality making it easy to stay in touch while on the water.
One VHF antenna connection handles both AIS and voice communication, keeping things simple and efficient.
The ultra fast and optimised user interface makes it easy to see and understand.
The X100 is also completely waterproof.
The image below shows the types of devices the X100 can connect to and how they link together, making it easier for you to understand how the X100 network works.
What’s in the box?
What’s in the box?
Here’s what you will find in the box:
Fist-mic, bracket and fixings
X100
Fist-mic and panel mount bracket templates
Quick start guide
Front cover
Wi-Fi/ Bluetooth antenna
Mounting bracket and fasteners
Panel mount o-ring
What you’ll need
Here’s some useful tools to help the installation easier, make sure to have these ready before starting.
Drill with 4mm drill bit
Jigsaw (optional)
Wire strippers
Adjustable cable clips
Allen key set
PZ2 screwdriver
VHF antenna
Rear connectors
Rear connectors
All the connectors are located on the back of the X100. This is where you’ll connect the GPS and VHF antennas, the power cables, Wi-Fi and Bluetooth antennas, NMEA, and make the loud hailer connections.
No.
Connector Type
Description
1
External Wi-Fi Bluetooth antenna
External Wi-Fi/Bluetooth antenna This is where you’ll connect the included Wi-Fi or Bluetooth antenna to link your smart devices to the radio.
2
VHF antenna
VHF antenna Connect the VHF antenna here so you can communicate with other people on the water.
3
NMEA2000
NMEA2000 Connect the NMEA2000 devices here, so all of your on board sensors and devices are linked.
4
Red power cable +
Red Power + This is the positive power cable, make sure to connect to a supply that gives between 9.6 and 31.2V.
5
Black power cable –
Black Power – This is the negative power cable, make sure to connect to a power supply that gives between 9.6 and 31.2V.
6
NMEA0183
NMEA0183 Connect the NMEA0183 devices here, so all of your on board sensors and devices are linked.
7
Loud hailer
Black and White Loud hailer Connect your loud hailer here, once connected the fist-mic can be used to talk through the hailer.
5
External GPS antenna
External GPS antenna Connect any external GPS antenna here to keep track of your location.
Plan your installation
Planning the installation of your X100
Vessel construction
Vessel construction
The way your vessel is built can affect GPS performance. For instance, being near heavy structures like a bulkhead or inside a larger boat might reduce the signal. Materials like steel, aluminium, or carbon can also impact how well the GPS works.
INFORMATION
Keeping the GPS and VHF antennas clear of heavy structures like bulkheads can help keep the signals strong.
Check list
Check list
The check list will help you think through the placement of your hardware, cable routing, any potential interference, as well as any issues with Wi-Fi drop out, VHF and GNSS signals.
If you’re not sure how to do this, ask someone with experience in installing this kind of hardware.
Take a moment to go through the list below, this will help make sure you choose the right locations for installing the equipment.
Choosing the best locations helps your hardware perform at its best and avoids potential problems down the line.
External GNSS antenna placement
1
Choose a place with a clear view of the sky, free from obstructions.
2
Try to mount it as far away from other electronic equipment as possible to avoid interference.
3
Keep it at least 1m (3 ft) away from any other antennas.
VHF antenna placement
1
Stay at least 1.8m (5.9 feet) away from the antenna when it’s working, especially when transmitting at 25 watts.
2
If possible, mount the antenna at least 3.8m (12.5ft) above the main deck. If that height isn’t possible, aim for at least 1.8m (5.9 ft).
3
Use an insulated (plastic) mounting bracket to keep the antenna separated from the vessel’s metal parts for a safe and secure installation.
4
If you are installing multiple antennas, keep them 2.4m (8ft) apart.
X100 placement
If you’re not using an external GNSS antenna, make sure to consider the following when choosing a location for the X100:
1
You will have good GNSS signal strength.
2
Nothing is installed in dangerous areas, especially near fuel tanks.
3
The cables are out of the way and won’t be damaged.
4
There is enough room behind the X100 for air to flow.
5
Make sure water can’t damage any of the equipment.
Mounting area
1
There is enough space for cables, and you can easily access the back of the X100.
2
Check there is nothing behind the mounting surface that you could accidentally damage while drilling.
Ventilation requirements
The X100 could overheat if it doesn’t have enough room for ventilation.
1
Make sure there’s plenty of airflow around the back of the X100.
2
Position the X100 so that it isn’t in direct sunlight, as this can lead to overheating.
Water ingress considerations
1
When picking an installation spot, it’s important to keep your equipment dry. Be sure to consider any risk of water splashing onto, or covering the X100.
2
The X100 is waterproofed to IPx6 and IPx7 standards, but you should try to minimise the amount of water that the X100 could get exposed to. Damage from pressure washing is not covered by the warranty.
3
Try to mount the X100 and fist-mic somewhere that protects from rain and salt spray.
CAUTION
Water intrusion and subsequent equipment failure may occur if the product gets exposed to high-pressure washing. em-trak Marine Electronics Limited will not warrant products subjected to high-pressure washing.
Cable routing
1
Don’t bend the cables too much, the cables might get damaged if repeatedly bent.
2
Cables can become stressed over time, so consider using cable support. This helps keep your cables in good condition and prevents damage, allowing you to keep your equipment in good working order.
EMC installation guideline
1
Any cables and equipment are at least 1m (3ft) away from any transmitting equipment, or 2m (7ft) if you’re using SSB (Single Side Band) radios.
2
You maintain a distance of 2m (7 feet) from the path of a radar beam.
3
Use em-trak Marine Electronics Limited cables and avoid cutting or extending them unless recommended to do so.
4
If any of this is not possible or practical, just do your best to keep the equipment separated. This will create the best possible conditions for EMC performance.
Loud hailer location requirements
1
The X100 installation location chosen by you should be at least 3m (9.8ft) away from the loud hailer and it’s fist-mic. This helps eliminate the feedback when a loud hailer is used.
Wireless product location requirements
1
Install them at least 1m (3ft) away from other wireless devices.
2
Keep the devices clear of electrical or electromagnetic equipment that could cause interference.
3
Make sure that there’s clean line of sight between your wireless devices and the router.
Electrical interference
1
Install the unit away from equipment like motors, generators, and radio transmitters as electrical interference can disrupt both receiving and transmitting signals.
Electrical safe distance from compass
1
Keep the X100 at least 1m (3ft) way from the compass.
2
Test your compass with the X100 powered on to make sure there is no interference.
Installing your radio
Installing your X100
GPS antenna options
GPS antenna options
You have two options for installing a GPS antenna: you can either use the X100‘s internal GPS antenna or an external one. If you need to purchase a GPS antenna, contact support@em-trak.com or visit your local dealer.
If you choose to use the X100‘s internal antenna, then read the information below. This will help you choose the best location to enjoy reliable GPS signals.
Installing the X100 above decks (1) gives you the best performance, as the built-in antenna has a better chance of maintaining a strong connection.
If you install the X100 below decks (2), the performance may not be optimal as the signal may be blocked by your vessel. You might need an external antenna.
If you install the X100 in the hull (3), you won’t be able to receive a location fix and an external GPS antenna will be needed.
No.
Performance
1
This location provides optimal GPS performance (above decks).
2
In this location the GPS performance may be less effective and you may need an external GPS antenna.
3
The GPS performance will be very poor and you will need an external GPS antenna.
If you choose to use an external GPS antenna then try to keep the following in mind:
Install the antenna on a flat horizontal surface or a suitable pole.
Make sure that the antenna has a clear view of the sky and it doesn’t have anything obstructing it.
Installing the antenna lower and closer to your vessel can help maintain high accuracy for positional data.
Try to keep the antenna at least 1m (3ft.) away from any other antenna or electronic equipment as this may cause interference.
Once the antenna is installed, route the cables to the X100.
Installing the VHF antenna
Installing the VHF antenna
If you already have a VHF antenna installed, you can skip this section. However, if you’re setting up a new VHF antenna, follow the information below for the best results.
Make sure that the antenna is above the head height of any crew member.
Mount the antenna so that nothing can block it’s line of sight to the sky.
Make sure that the VHF antenna is not in the line of sight of any satellite communication antenna.
Try to keep the VHF antenna at least 3 meters (10 feet) away from any electronic equipment to avoid interference.
Make sure there’s enough space to easily route the cable down to the X100.
Mounting the X100
Mounting the X100
Everyone has a unique style, so the device can be mounted in various ways to suit your preferences.
Securely mount the X100 using the provided tools and fixings, making sure it’s attached to a suitable surface where the screen is clearly visible during use.
Mounting options
1
Overhead (bracket)
2
Table top (bracket)
3
Panel mount
INFORMATION
Always leave enough space behind the X100 for proper airflow and room for cables. Also, ensure the screen is tilted slightly to reduce glare.
X100 bracket mounting
Bracket mounting is a great solution for people that want to fix the X100 in place while having open access to the rear of the radio.
Before mounting, click here to check that the area selected meets the requirements.
Place your bracket onto the mounting surface and use a pencil to mark the screw holes. Make sure that the bracket is in the correct location before you mark the holes.
When you are happy with the location, drill the holes in the mounting surface using an appropriate drill bit.
Mount the bracket onto the mounting surface using the 2x No.8 x 38mm Pozi countersunk head stainless steel screws, ensure that the screws are tightened well.
Connect the VHF and GPS antenna cables to the correct ports in the back of the X100, click here for more information.
Assemble the X100 onto the mounting bracket using the 2x mounting knobs.
Fist-mic holster mounting
Even though the fist-mic is connected to the X100 by cable, you don’t want it swinging loose while your vessel is moving. Install it close enough to the X100 so it’s always easily accessible.
Make sure the holster is installed in a flat, clear area with enough space around it so you can easily insert and remove the fist-mic.
Use the fist-mic bracket or its template to mark the screw hole positions on the mounting surface.
Drill two holes for the mounting fixings using a suitable drill bit. Make sure there is nothing behind the mounting surface before drilling.
Use the 2 No. 8 x 38mm Pozi countersunk stainless steel screws to securely attach the holster to the mounting surface.
And finally, slot the fist-mic into the holster.
Panel mounting the X100
Panel mounting the X100
Panel mounting is a great solution for people that want to fix the X100 in place while having open access to the rear of the radio, via a removable panel or an access hatch. Before mounting, click here to check that the area selected meets the requirements.
Figure 1 : Panel mounting the X100
Use the X100 panel mount template (included in the box) to measure and mark the installation location, then use a suitable tool to cut the hole for the X100.
Place the O-ring between the front panel of the X100 and the installation surface.
Pull the VHF and GPS antenna cables through the hole cut in step 1, and connect the cables to the correct ports on the back of the X100, click see here. if you’re not sure which ports are the correct ones.
Insert the X100 into the slot cut in step 1.
Using the appropriate tool, attach the panel brackets to the sides of the X100. Tighten the bracket nuts until the X100 is securely in place. So even in rough seas the X100 stays in place.
Flush mounting the X100 (optional)
Flush mounting the X100 (optional)
Flush mounting is an excellent option for securely and permanently installing the X100, offering both a stable setup and a clean, polished look. One key advantage of flush mounting is that the radio can be easily removed when its not being used.
The flush mount is optional, so if you’re interested, simply contact your local dealer and provide the part number 300-0142 to place your order.
Be sure to check the template provided with the flush mount kit, as it will make the installation process much easier for you. This template guides you through the correct placement and helps ensure a smooth and precise installation.
Loud hailer and external speaker connections
Loud hailer and external speaker connections
The X100 can connect quickly and easily to your vessel’s loud hailer, making it especially useful for communicating important messages directly to your crew or nearby vessels. For instance, if you need to announce safety instructions or issue a message to your crew, the hailer will amplify your voice through the loudspeaker, ensuring everyone within earshot can hear you clearly. Any message made through the loudspeaker does not transmit over VHF.
You can connect black and white wires shown below, directly to the loud hailer.
Click here to see how to activate the loud hailer or external speaker.
NMEA Connections
NMEA Connections
For older equipment with only NMEA0183 interfaces, you can use the NMEA0183 connector. However, for equipment with both NMEA0183 and NMEA2000, it’s best to use the NMEA2000 connection for faster data flow. Don’t forget to properly terminate the NMEA2000 connection at the end of the bus to ensure everything works smoothly.
The illustration and table below shows the NMEA0183 connections you’ll need to make if you want use the NMEA0183 connector.
If you prefer to use the NMEA2000 connection, simply connect your devices to the NMEA2000 port located on the back of the X100. Click here to view its exact location.
Pin
Function
Colour
1
NMEA 1 Transmit +
Brown
2
NMEA 1 Transmit –
Blue
3
NMEA 1 Receive +
White
4
NMEA 1 Receive –
Green
5
GND
Black
6
NMEA 2 Send +
Purple
7
NMEA 2 Send –
Pink
8
NMEA 2 Receive +
Grey
9
NMEA 2 Receive –
Yellow
External Wi-Fi / Bluetooth connector
External Wi-Fi / Bluetooth connector
Connect your smart device effortlessly to the X100 by attaching the supplied Bluetooth/Wi-Fi connector into the Wi-Fi port located at the rear of the unit. Once connected, you can download the Connect-X app onto your smart device, enabling you to use your device as a fully functional VHF radio.
Click here if you’re not sure which port is the Wi-Fi port.
Grounding the X100
Grounding the X100
The X100 has an earth connection that, on steel-hulled vessels, should be connected to a suitable ground. You’ll recognize the ground connection by this symbol. Ensuring a proper ground connection helps protect your equipment and ensures safe operation.
Icon
Description
Grounding point
If your vessel is made of a conductive material, be sure to connect the ground wire using as short as a connection as possible.
The ground wire is connected using a stainless A4 M3 x 5mm screw and a ring clamp to the M3 earthing connection point located on the rear of the X100.
In-line fuse
In-line fuse
There is a 5 x 20mm 12A fuse located in a waterproof case on the positive power cable (red). From time to time you may have to replace the fuse, to do this:
Power off the X100, disconnect, or isolate the power supply.
Gently unscrew the 2x halves of the waterproof case and remove the fuse. Dispose of the fuse in an environmentally safe manner.
Install the new 5 x 20mm 12A in-line fuse and securely reconnect the 2x halves of the case.
Reconnect the power supply and power on the X100.
Powering the X100
Powering the X100
The X100 requires a power supply of 9.6–31.2V, with a minimum of 6A. Connect the red (+) cable and the black (-) cable to a suitable power source.
Bare end wire connections
Bare end wire connections
So you don’t accidentally short circuit the equipment by exposing it to water, wrap the bare end in an insulating material. This will help keep the equipment safe and reliable.
Basic use
X100 basic use
Controls
Controls
Before you start using the X100, take some time to familiarise yourself with the controls.
No.
Name
Description
1
Distress button
The distress button is used in emergencies, such as when there is a threat to life or an immediate danger to a crew member or the vessel.

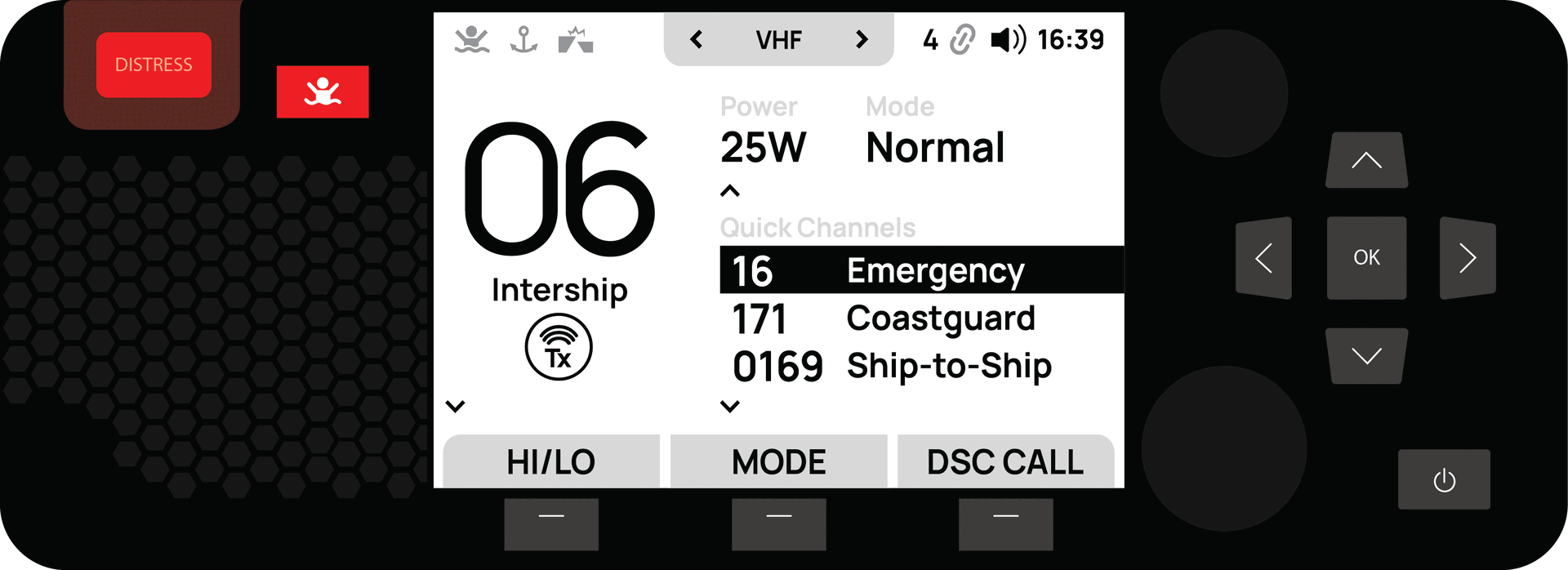

To make a DSC distress call, simply lift the spring-loaded cover and press the button.
Click here to learn how to make a receive distress calls.
2
MOB (Man Over Board) button
The MOB button is used when someone is seen falling over board, if someone falls over board unnoticed, the MOB alarm triggers automatically providing that crew member is embarked X100.
Once pressed, the button drops a waypoint on the chart plotter screen, and the MOB screen appears, guiding the vessel to the area where the crew member fell overboard.
The screen help you navigate through all of the available options on the X100 and also provides important information.
4
Volume and squelch rotary
If you need to increase or decrease the volume of incoming transmissions, rotate the rotary knob. Keep in mind that it may be hard to hear transmissions in bad weather, so adjusting the volume can help.
If you want to try reducing the amount of background noise, short press the rotary knob to enable the squelch volume control, turn to adjust the squelch volume.
5
Arrow and OK buttons
Use the arrow buttons to navigate through the software and to turn certain options on or off. Press the OK button to enter menus and select different vessels.
6
Power button
Short press the power button, the X100 turns on after a couple of seconds.
Remember to turn off the X100 when it is not being used, long press the power button to turn the X100 off.
If you want to adjust the brightness of the screen, short press the power button and use the volume rotate knob to adjust the brightness.
7
Channel rotary
If you want to manually change the channel to broadcast on, turn the rotary knob until you find the channel you want.
8
Softkeys
If you want to enter the settings, make a DSC call, or adjust the broadcasting power, simply press the corresponding softkey. Keep in mind that the options for each softkey may change depending on which screen you are on.
9
Speaker
The speakers play all incoming transmissions, ensuring you don’t miss any important information.
10
Fist-mic cable
The fist-mic connects to the X100 via this cable.
Take some time to familiarise yourself with the fist-mic controls.
No.
Name
Description
1
PTT (Push to talk) button
To send a voice message, simply press and hold the designated button while you speak your message. Once you’re finished, release the button to complete the transmission and automatically return to receive mode.
2
Microphone
When sending transmissions, make sure to speak directly into the microphone. This ensures that your message is clear and easily heard by the recipient.
3
Channel 16 Button
To switch directly to Channel 16, simply press the designated button. Channel 16 is the international distress frequency, so it’s important to have quick access to it for emergencies or urgent communications.
4
Volume up / down buttons
To adjust the speaker volume, just press the designated button to increase or decrease the sound level. This allows you to find the perfect volume for your environment, ensuring you can hear communications clearly without being overwhelmed by noise.
5
Speaker
Incoming transmissions will play through the speaker, allowing you to hear messages clearly without needing to wear headphones or hold a receiver.
6
High / Low power button
To switch between High (25W) and Low (1W) transmission power, simply press the designated button. High power is ideal for longer distances, while Low power is better for short-range communications and helps conserve battery life. Keep in mind that some channels may not permit broadcasting at 25W.
7
Channel up / down buttons
To change the channel, just press the designated button. This allows you to quickly switch to a different frequency for communication, whether you need to connect with another vessel, a shore station, or simply tune into a different channel for updates.
Initial start-up
Initial start-up
Once the planning and installation is done, you’re all set to start enjoying everything the X100 has to offer.
Start by powering on the X100 and enter your operational region, input your MMSI number, and download the app onto your smart device.
You will then be asked to connect your device to the X100 by scanning the QR code shown on the screen, the devices connect over Wi-Fi.
CAUTION
The X100 should only be connected to properly secured networks and devices.
On-boarding
On-boarding
At this point, the should be installed with the app downloaded and working on your smart device.
Firstly you will be asked to enter the captains name and pin number. Next, you’ll need to enter the static data, which can be done using either your smart device or the X100.
The static data includes:
Your region – Under this option, you’ll find three choices: U.S, Canada and International. Choose the location in which you’ll be operating. If you are operating in the U.S., your region is entered automatically.
MMSI number – If you are in the United States, this will be entered by your dealer or another qualified person. Without this number, features like DSC calling and AIS VHF will not be available.
WARNING
Take care to program the MMSI correctly. If you need to change the MMSI for any reason, contact your local dealer, and they will arrange to have the MMSI reset.
If you’re unsure where to find the MMSI or if you don’t know what it is, check your VHF radio license. It should match the MMSI used for your VHF/DSC radio.
Vessel Details: The vessel details include your ship’s name, call sign, and ship type. Additionally, you’ll need to reference the dimensions of the GPS antenna location that connects directly to the X100.
Below is an easy to follow break down showing how to enter the GNSS/GPS antenna location accurately:
First, measure the distance from your antenna to the bow and enter this value for Position A.
Next, measure the distance from your antenna to the port side and enter this value for Position C.
Then, subtract measurement A from the total length of your boat and enter this value for Position B.
Finally, subtract the Position C value from the total beam of your vessel and enter this value for Position D.
INFORMATION
Entering the information is easier within the app.
CAUTION
Take your time to enter the vessel’s details accurately. It’s important to get this right, as it helps other vessels recognize you easily.

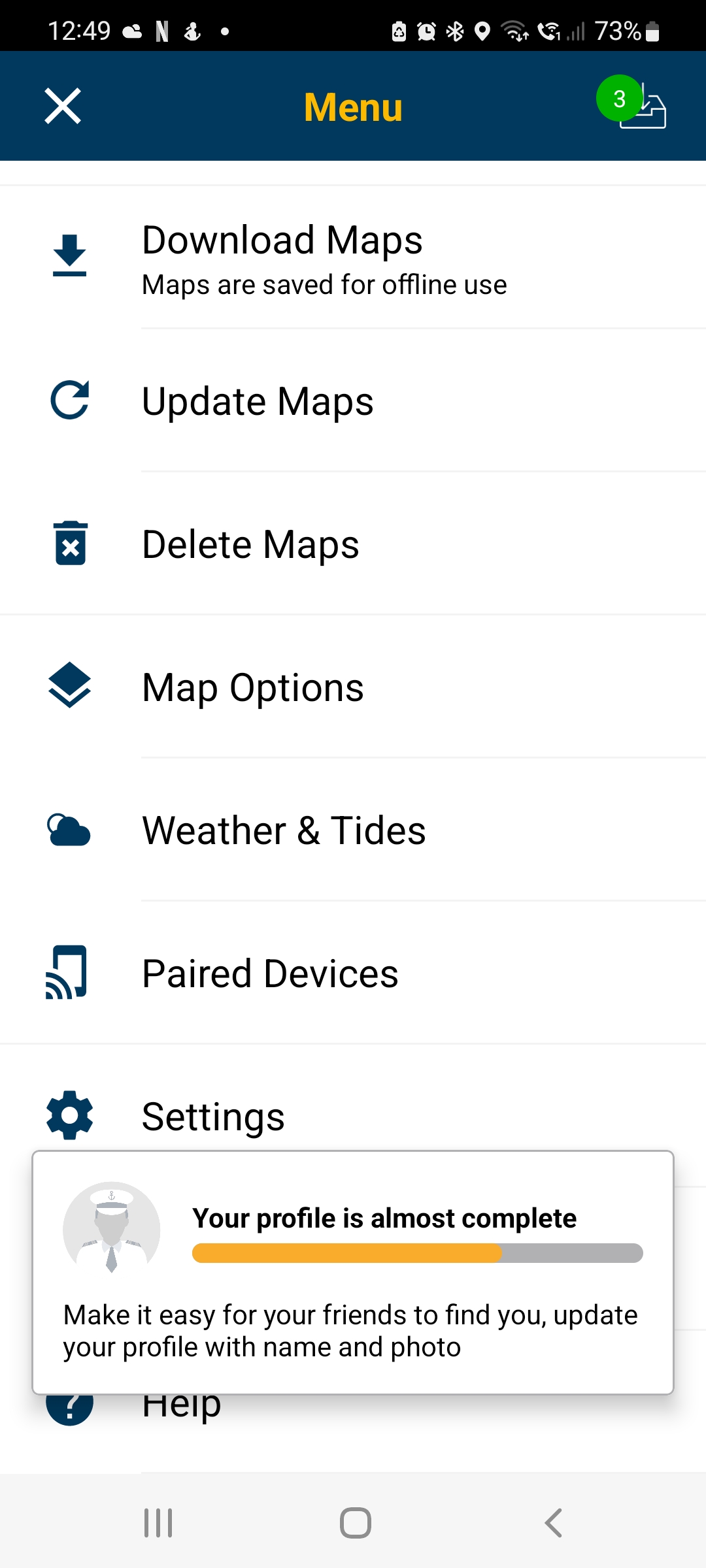

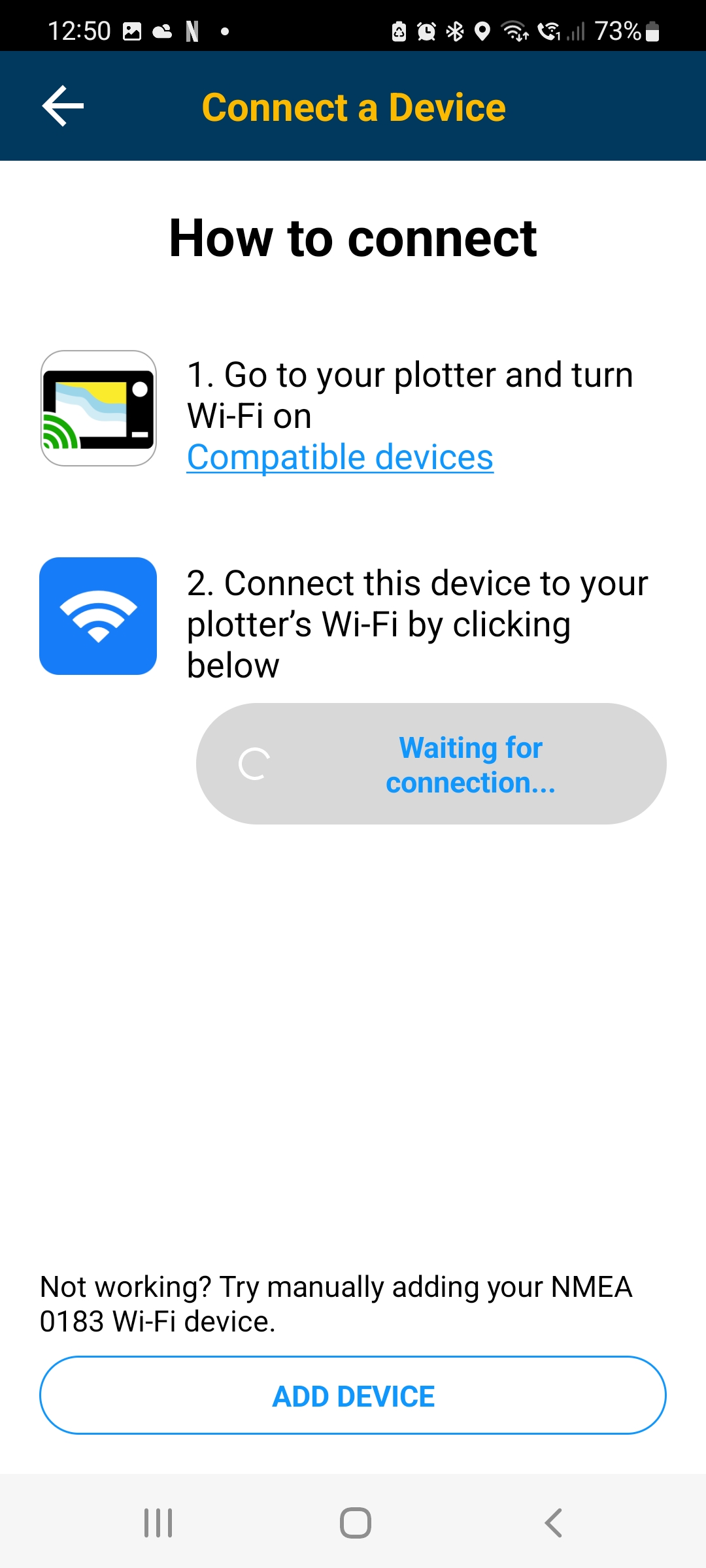

Connecting further devices to the X100
Connecting further devices to the X100
At this point you should have finished the on-boarding process. If you haven’t already, complete that process and come back here. Click here to learn how to do this.
If you’re setting up a new smart device, you’ll want it to join the same network as your X100 for seamless access. To join the network simply press the JOIN WI-FI softkey on the VESSEL screen.
Then scan the QR code with the device you want to join, open the NX-Connect app and follow the app’s instructions, and you’ll be connected in no time.
Status bar symbols
Status bar symbols
The following symbols appear along the top of the X100 screen, their meanings are defined below.
Icon
Description
Bluetooth The icon will turn white when a Bluetooth device is connected. If no device is connected, the icon won’t appear.
Wi-Fi When the device is connected to a Wi-Fi network, the icon appears white. If disconnected, the icon will turn grey with a red line through it.
AIS Tx/Rx The Rx arrow turns red when receiving an AIS message. When sending an AIS message, the Tx arrow is white. If the unit is in silent mode, an icon will appear with a red line through it.
GPS Signal The GPS icon turns white when a signal is being received.
MOB The MOB icon lights up red when the Man Overboard (MOB) feature is active. When it’s inactive, the icon appears grey.
Collision The collision course icon turns red when on a collision course, helping you stay alert to potential hazards. When there’s no collision risk, the icon appears grey.
Anchor Watch The Anchor Watch icon is grey when inactive and turns white when an anchor watch limit is set. If the vessel drifts beyond the set limit, the icon will highlight in red, alerting you to potential drift.
Link The icon displays the number of smart devices currently connected to the X100 unit.
Volume The icon shows that the speaker volume is active. If there’s a red line through the icon, it means the speaker is muted.
Alert This icon indicates that there is an active alarm, signalling that action is needed. A pop-up notification will appear on the screen, providing details about the specific alarm.
Mail This indicates that you have an unread DSC message.
Alarm This indicates a DSC alert relating to a distress call.
Silent mode This indicates that the X100 is in silent mode, so your location will not be shared.
VHF Radio Screen overview
VHF Radio Screen overview
For your convenience the features that you are most likely to use are all available on the main screens of the software. These include the VHF screen, AIS List screen, AIS Plot screen and the My vessel screen. You can switch between screens by pressing the left and right arrow keys.

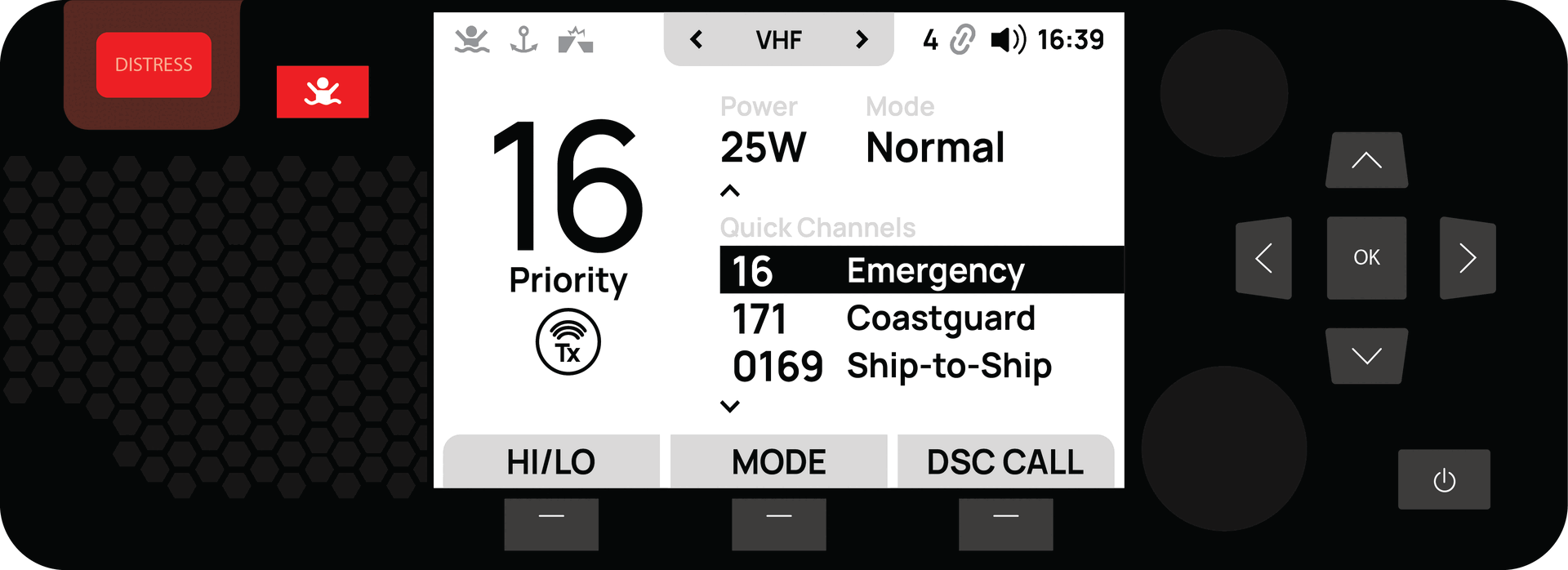

The first main screen is the VHF screen. This is where you can quickly make a DSC call, adjust the transmission power, and monitor or scan channels with ease.
No.
Name
Description
1
Status bar
A handy tool that shows you what status is currently active by highlighting the corresponding icon.
2
Screen name
This is the name of the screen that you are on.
3
Current mode
This shows which mode is currently selected: either Normal, Watch, or Scan mode can be active at one time.
4
Quick channels
This shows a list of channels that you can quickly call while in normal mode. Up to 3 Quick channels can be configured within the app. The 4th Quick channel is the last channel used before selecting another quick channel.
5
DSC call softkey
When you’re ready to make a DSC call, press this softkey. Once pressed, additional options will appear, allowing you to select the type of DSC call you wish to make.
If you want to enter watch or scan mode, press this softkey. The options on the screen change based on the mode you’ve selected.
7
High / Low softkey
If you want to adjust the transmitting power, press the softkey. This toggles between 25W (high power) and 1W (low power).
8
Radio status
This shows the current status of the radio. “Rx” indicates that you’re receiving a transmission, while “Tx” means you’re transmitting.
9
Channel
This is the channel that you currently have selected.
10
Transmitting power
This displays the amount of power currently being used to transmit your messages. Use low power when communicating with vessels nearby (less than 1 mile) and high power to reach vessels further away.
Quick Channels
QUICK CHANNELS are a handy way of quickly selecting frequently used channels.
For example if you find yourself regularly changing channels between Port operations, your local marina and a friend who has a boat nearby, you can set those channels as QUICK CHANNELS in the app.
The Quick channels appear on the VHF screen. Use the arrow keys to select a quick channel and press the OK button to select that channel. You can then press the DSC CALL softkey to call. Quick channels can be selected in the app.
VHF radio modes
VHF Radio Scan and Watch modes are a good way of listening to one channel without missing information being broadcast on another.
Press the MODE softkey when you want to enter WATCH or SCAN mode.
Normal mode
NORMAL mode is the standard operating mode for the X100. In this mode, all functionality is available, making it ideal for making calls or sending messages. However, you won’t be able to watch or scan any channels, so it’s best used when you need full access to the radio’s features without monitoring other frequencies.
Scan Mode
SCAN mode is ideal for listening for important announcements or broadcasts, such as safety alerts or weather updates. When a broadcasting channel is found, the X100 will stay on that channel until the broadcast ends. If no further broadcasts occur on that channel, the X100 will continue scanning for other channels.
To learn how to set how long the channel is scanned after a broadcast ends, click here.
No.
Name
Description
1
Type
This indicates the scan type selected, scan types give you the flexibility to gather the information you need from broadcasts and announcements more effectively.
All: All channels in the frequency are scanned.
All-interleaved: Scans all channels, with channel 16 being scanned in between each.
Custom: A custom list of channels is scanned in ascending order.
Custom-interleaved: Scans a custom list of channels, with channel 16 being scanned in between each.
2
Priority
This indicates the priority channel, be aware that the priority channel can change depending on your location.
3
Selected
This indicates the number of channels in the frequency band you have selected to scan.
4
Start scan softkey
Press the softkey when you are ready to start the scan.
To set a SCAN MODE:
Press the MODE softkey until SCAN MODE is selected.
Press the ok button, and choose between the scan types.
When you have selected a scan type and are ready to begin, press the START SCAN softkey.
Watch mode
WATCH mode is perfect for when you want to monitor your priority channel and one other channel simultaneously. For example, this is useful if you want to stay updated on marine channels while keeping an ear on safety or emergency broadcasts.
To learn how to set how long the channel is watched after a broadcast ends, click here.
No.
Name
Description
1
Type
This indicates the watch type selected, watch types give you the flexibility to gather the information you need from broadcasts and announcements more effectively.
Dual: Allows you to monitor another channel along with the priority channel, giving you the ability to stay updated on both at the same time.
Tri: Lets you monitor the channel you’re on, the priority channel, and an additional channel. This keeps you updated on all three channels simultaneously.
2
Priority
This indicates the priority channel, be aware that the priority channel can change depending on your location.
3
Weather
This shows whether the weather channels are being monitored, allowing you to keep an eye on up to three channels while staying updated on the latest weather news.
4
Start scan softkey
Press the softkey when you are ready to begin the scan.
To set a WATCH MODE:
Press the MODE softkey until WATCH MODE is selected.
Press OK to toggle between DUAL and TRIPLE modes. DUAL mode watches the channel you’re currently on, as well as channel 16. TRIPLE mode lets you select an additional channel to monitor alongside your current channel and channel 16.
Once you’ve selected the channels to watch, you’ll start receiving broadcasts on them—provided there are messages being transmitted.
Transmitting power
The X100 gives you the option to adjust the power of your transmissions. To change the power level, just press the HIGH/LOW softkey. This will toggle between high power (25W) and low power (1W).
Low power is ideally used to contact vessels that are nearby (less than 1 mile away), where as High power is used to contact vessels that are further away.
INFORMATION
Some channels only broadcast on 1W or 25W
Making a DSC call from the VHF RADIO screen
DSC takes the hassle out of communicating at sea, making it easier and more reliable. Instead of broadcasting over the radio to get someone’s attention, you can use DSC to connect directly with another vessel. Just select the boat by its MMSI number or pick it from a list, and you’re ready to call, it’s as simple as making a phone call.
Click here to learn how to make a routine DSC call from the AIS list screen, and here for the AIS Plot screen.
AIS List Screen overview
AIS List Screen overview

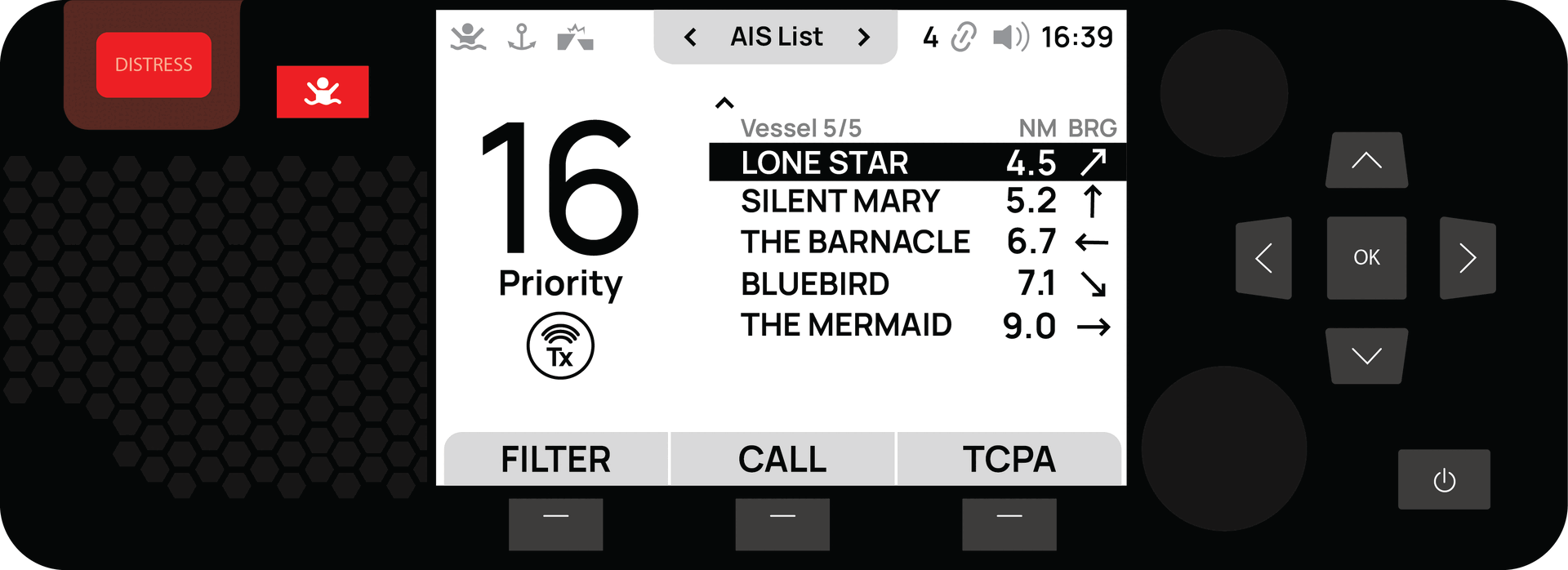

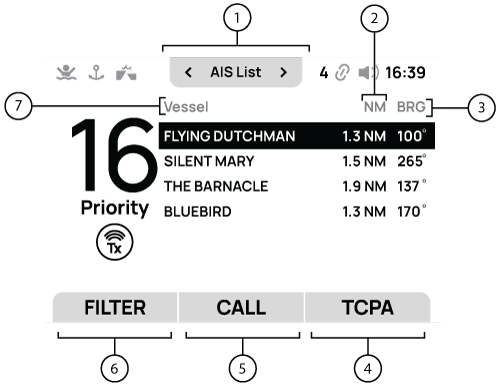

The second main screen is the AIS LIST screen. This is where you can easily see all nearby vessels with AIS devices, filter the list to show only your saved contacts, and even make a DSC call. You’ll also find important information like the range, bearing, TCPA (Time to Closest Point of Approach), and CPA (Closest Point of Approach) of all nearby vessels to help keep you aware of your surroundings.
No.
Name
Description
1
Screen name
The name of the current screen.
2
NM (Nautical Miles)
The distance of the vessels from you.
3
BRG (Bearing)
Shows the true bearing of the vessels.
4
TCPA / Range softkey
Press the TCPA softkey to display the CPA and TCPA of all nearby vessels.
Press the RANGE softkey to show the distance of vessels from you, and their true bearing.
5
Call softkey
Press to quick call the highlighted vessel on the list.
6
Filter softkey
Shows only favourite (phonebook entries) or all vessels.
7
Vessel names
A list of nearby vessels.
AIS List vessel information
Use the arrow buttons and the OK button to select a vessel. The vessel information is shown.
The vessels call sign.
The vessel type.
The MMSI number.
The distance of the vessel from your current position.
The vessels bearing relative to your position.
The vessels CPA.
The vessels TCPA.
The vessels SOG.
The vessels COG.
The vessels current latitude.
The vessels current longitude.
The vessels true heading (if provided).
The length of the vessel.
The beam (width) of the vessel.
The time since the last transmission received from that vessel.
Whether the vessel is marked as a favourite contact: YES means it’s saved in your phonebook, and NO means it’s not.
If you want to view only your saved contacts on the screen, simply press the FILTER softkey. This feature allows you to customize your display, making it easier to find and manage your contacts without any distractions from other information. It’s a handy way to streamline your communication and stay organized while you’re on the water.
Making a DSC call from the AIS list screen
DSC calls can be made from the AIS LIST screen.
Click here to learn how to make a DSC call from the AIS list screen.
List filter
If you’d like to see only your saved contacts on the list, just press the FILTER softkey.
AIS Plot Screen overview
AIS Plot Screen overview

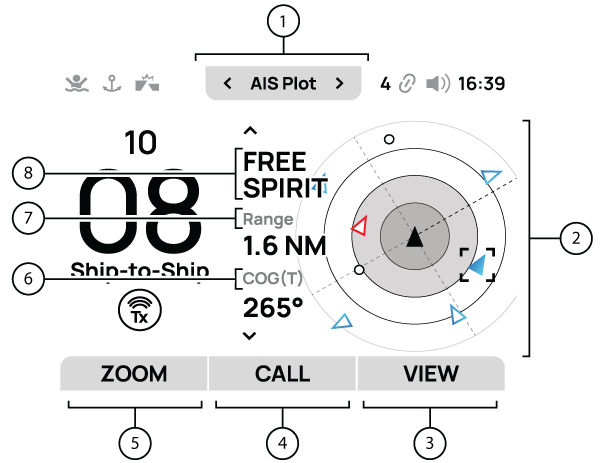

The third main screen is the AIS PLOT screen. This screen shows a map with all nearby vessels displayed, with your vessel at the centre. You can easily zoom in or out to adjust the area around your vessel, call another vessel, and change the map’s orientation to suit your needs.
No.
Name
Description
1
Screen name
This is the name of the screen that you are on.
2
Map
This is the area around your vessel, with your vessel in the centre.
3
Scale
Shows the distance between the circles on the map.
4
View softkey
If you’d like to change the map’s orientation so that the north marker is always at the top, simply press this softkey.
5
Call Vessel softkey
Press this softkey to make a DSC call to the selected vessel.
If you need, press this softkey to increase and decrease the area shown around your vessel.
7
Course over ground (True)
This shows the course of the selected vessel relevant to the earth’s surface.
8
Range
This shows the distance between your vessel and the selected vessel.
9
Selected vessel name
This is the name of the vessel that is currently selected.
Screen icons
Below is a list of all icons that may appear on the map and their descriptions.
Icon
Description
Your vessel Your vessel in position relative to other nearby vessels.
Distance indicator Indicators used to measure the distance around your vessel.
Other vessel Currently selected vessel.
Other vessel Currently unselected vessel.
Other vessel Currently selected vessel infringing on the set CPA threshold.
Other vessel Currently unselected vessel infringing on the set CPA threshold.
Vessel up Vessel Up viewing mode is currently selected.
North up North Up viewing mode is currently selected.
Scale Indicates the distance between each ring on the map.
Collision Vessels are on a collision course.
Search and rescue A rescue helicopter.
Search and rescue A rescue plane.
Vessel information
Use the arrow buttons and the OK button to select a vessel. The vessel information is shown.
The vessels call sign.
The vessel type.
The MMSI number.
The distance of the vessel from your current position.
The vessels bearing relative to your position.
The vessels CPA.
The vessels TCPA.
The vessels SOG.
The vessels COG.
The vessels current latitude.
The vessels current longitude.
The vessels true heading (if provided).
The length of the vessel.
The beam (width) of the vessel.
The time since the last transmission received from that vessel .
Whether the vessel is marked as a favourite contact: YES means it’s saved in your phonebook, and NO means it’s not.
If you want to view only your saved contacts on the screen, simply press the FILTER softkey. This feature allows you to customize your display, making it easier to find and manage your contacts without any distractions from other information. It’s a handy way to streamline your communication and stay organized while you’re on the water.

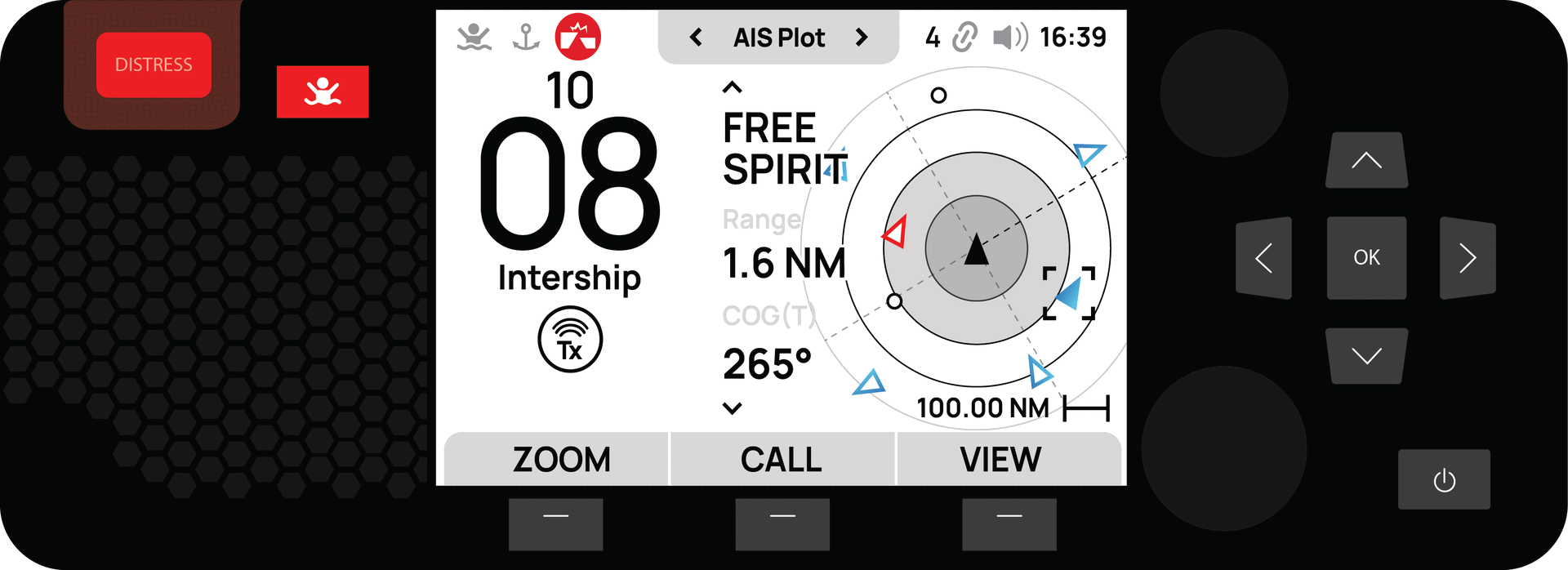

The zoom function on the AIS PLOT screen lets you adjust the size of the area around your vessel, helping you see more or less of your surroundings as needed. To decrease the area shown around your vessel, just press the ZOOM softkey. When fully zoomed in, pressing the softkey again resets the displayed distance.

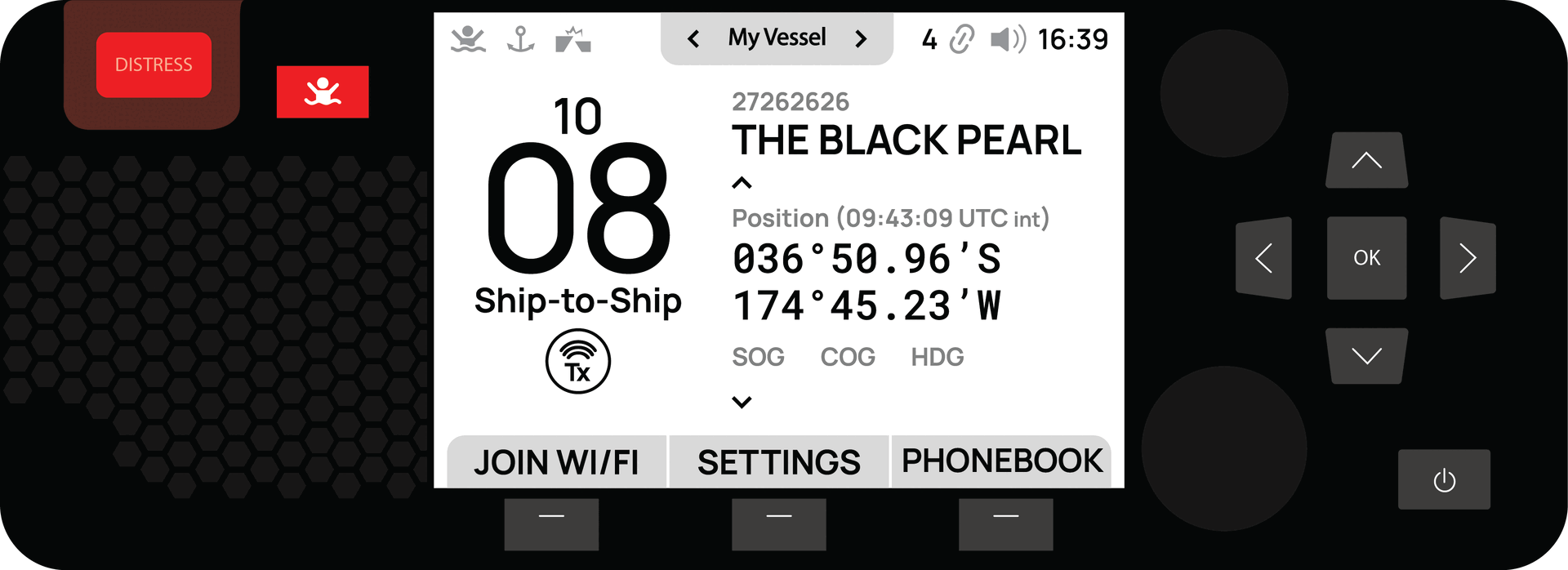

My vessel screen overview
My vessel screen overview

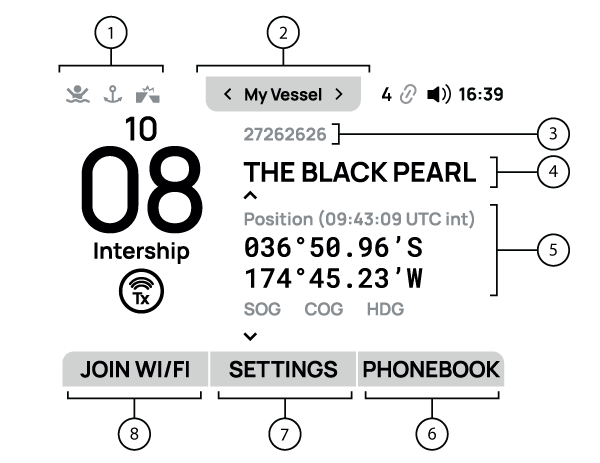

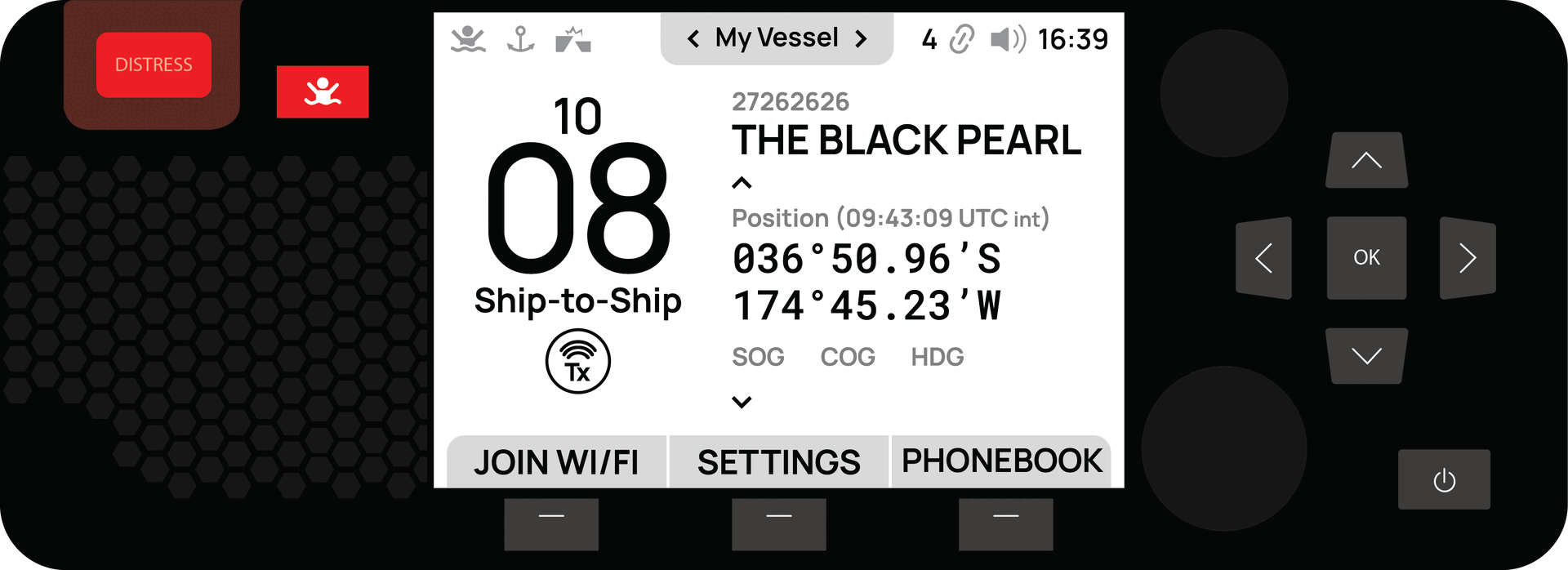

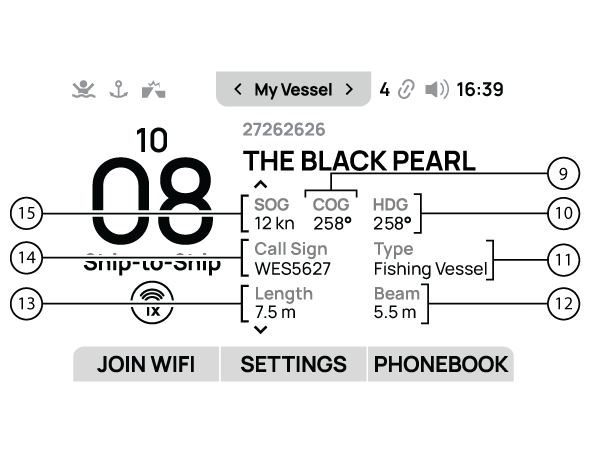

The fourth main screen is the MY VESSEL screen. Pressing the up and down buttons shows you all the important details about your vessel, like your position, heading, speed (SOG), course (COG), call sign, vessel type, length, and beam.
You can also easily connect your smart device to the Wi-Fi, access the settings menu, and open your phonebook from here.
No.
Name
Description
1
Status icons
These illuminate when the corresponding status is active.
2
Screen name
This is the name of the screen that you are on.
3
MMSI number
This is your MMSI number.
4
Vessel name
This is the name of your vessel.
5
Position
This is your current position.
6
Phonebook softkey
Press this softkey to enter your phonebook.
7
Settings softkey
Press this softkey to enter the settings menu.
8
Join Wi-Fi softkey
Press the softkey to join a smart device to your wireless network.
9
COG (course over ground)
This is your vessel’s direction relative to the Earth’s surface.
10
Heading (HDG)
This displays your vessel’s heading, but this only works if a heading sensor is connected via NMEA.
11
Type
This is the your vessel type.
12
Beam
This is the width of your vessel.
13
Length
This is the length of your vessel.
14
Call sign
This is your call sign.
15
SOG (Speed over ground)
This is the speed of your vessel relative to the ground.
Phonebook
If you’re frequently in contact with multiple vessels, you can save these contacts in the PHONEBOOK. You can store up to 100 contacts, making it easy to manage important information such as the vessel names, MMSI numbers, vessel details, and call signs all in one place. You can easily add new contacts, edit existing ones, or delete outdated information as needed, ensuring your phonebook stays up to date and organized.
Join Wi-Fi
If you’re setting up a new smart device, you’ll want it to join the same network as your X100 for seamless access. To join the network simply press the JOIN WI-FI softkey. Click here to learn how to do this.
Phonebook
Phonebook
The PHONEBOOK can store up to 100 contacts, letting you add, edit, and delete entries as needed. To view your saved contacts, press the PHONEBOOK softkey from the MY VESSEL screen for quick access to important contacts.
Add, edit and delete contacts
Add, edit and delete contacts
You can easily manage your contacts in the phonebook by adding, editing, or deleting entries as needed.
Add a contact – While in the phonebook, select +ADD NEW CONTACT and input the MMSI number, the VESSEL NAME, and the CALL SIGN. When you are done, simply press the SAVE softkey.
Edit a contact – Simply select the contact, and edit the VESSEL NAME, or CALL SIGN as needed. You are not able to edit the MMSI number. When you are done just press the SAVE softkey.
Delete a contact – While in the phonebook, select the contact and press the DELETE softkey. The contact will no longer appear in the phonebook.
Loud hailer and public address
Loud hailer and public address
If you haven’t already, connect the black and white wires shown here to the loud hailer, and then click here to see how to activate the loud hailer or external speaker.
To send a message using the loud hailer or external speaker, select PHONEBOOK, and then choose LOUDHAILER to speak through the loud hailer or PUBLIC ADDRESS to speak through the external speaker. Finally, press the CALL softkey to start your announcement.
INFORMATION
The loud hailer times out about 30 seconds after your last announcement. After that, it stops working, and you’ll need to press the CALL softkey again to start a new announcement.
INFORMATION
To avoid audio feedback, ensure the loud hailer is at least 3m away from the X100 and any handset or fist-mic. When talking, ensure that the handset or fist-mic points in the opposite direction of the loud hailer.
Man overboard (MOB) screen overview
Man overboard (MOB) screen overview
To help keep you and your crew safe at sea, the X100 includes a Man Overboard (MOB) feature. Devices connected to the network will receive MOB alerts, so be sure your device is connected.
Click here to learn how to connect devices to the X100.
Make sure to embark your device after connecting, (click here for more information). The MOB alarm triggers if a device goes out of range of the X100.
When an MOB alert is triggered, all networked devices display an alarm. A waypoint appears on the AIS PLOT screen and chart plotter, marking the smart device’s last known location.
No.
Name
Description
1
MOB Alarm
This appears when an MOB alarm is active.
2
Screen name
This is the name of the screen you are currently on.
3
Latitude and Longitude
The coordinates of the device that is overboard.
4
Bearing
Press the softkey to see how to reach the MOB way point.
5
Direction
This shows the direction to the MOB way point.
6
Missing since
The time since the MOB alert was triggered.
7
Distance
The distance between you and the MOB way point.
8
Device
The type of device that has gone overboard.
9
Name
The name of the person whose device went overboard.
How to manually trigger MOB events
How to manually trigger MOB events
WARNING
Only smart phones and tablets can receive MOB alerts, smart watches will not receive MOB alerts.
INFORMATION
Make sure to connect and embark your devices to enable the MOB features.
Click here to learn how to connect devices to the X100, and click here to learn how to embark a device.
After connecting and embarking your smart device, you will be connected to the MOB network. This means once a connected device goes out of range of the X100, an alarm triggers. The alarm lets everyone know that there is an MOB event.
You can also manually trigger an alarm.
The step by step process below shows you how to do this.
Digital Selective Calling
Digital Selective Calling (DSC) with your X100
What is DSC?
What is DSC?
Unlike traditional VHF radio systems where users listen passively until they hear a call directed at them, Digital Selective Calling (DSC) streamlines communication by first notifying the intended recipient(s) with an alert. This way, recipients know the message is for them, so they’re prepared to listen on the correct channel when the message begins. This targeted approach enhances efficiency and reduces the risk of missed or unclear communications.
DSC is a system that uses VHF channel 70 to send targeted messages. Each DSC call contains essential information like your vessel’s identification number (MMSI), the purpose of the call (e.g., routine, safety, distress), your position, and the channel you’d like to use for voice communication. This system enables efficient, automated calling, helping you reach specific vessels directly without relying on open channel broadcasts.
DSC calls are categorized into four priority levels to ensure that urgent communication is managed effectively:
Distress – For immediate assistance in emergencies.
Urgency – For serious but not life-threatening situations.
Safety – For navigational or weather warnings.
Routine – For standard communication, such as checking in or coordinating with other vessels.
You can initiate any type of DSC call using the DSC CALL softkey found on each of the main screens. Once you press it, simply use the arrow keys to navigate through the different call types, and select your desired option by pressing the OK button. This straightforward process allows you to quickly and efficiently send the appropriate signal, whether it’s for distress, urgency, safety, or routine communication.
Routine (Individual) calls
Routine (Individual) calls
When you make a routine DSC call, you’re usually reaching out to another vessel, a marina, or a shore station. For example, if you’re approaching a marina and need docking instructions, you can send a DSC call to a specified target.
Routine DSC calls can also be made to groups, which is handy when several vessels need the same information. For example, during a yacht race or a club rally, you can use a group-call identity to send a message to all the vessels in your group at once.
You automatically transmit your vessel’s precise position data during a DSC call through the internal or external GPS antenna. This is especially useful in emergency situations, as your exact location is shared instantly with nearby vessels or shore stations, improving response times.
When calling a coast station there is no need to select a communication channel. The coast station automatically selects a free channel for you to communicate on.
Sometimes however, the coast station is not able to accept a call, when this happens a reason is given to you. These are listed below:
Reason code
Meaning
No Reason
This means that no reason is or can be given for rejecting your call.
Congestion
This means that the maritime switching centre is congested.
Busy
This means that the coast station has no one free to answer your call.
Queue
This means that there is a queue of people waiting to contact the coast station.
Barred
This means that the station is barred and cannot accept any calls from anyone.
No operator
This means that there is no operator available.
Disable
This means that the equipment at the coast station has been disabled.
How to make DSC calls from the AIS list screen
How to make DSC calls from the AIS list screen
The X100 has the unique functionality of being able to make a DSC call to any vessel on the AIS list screen.
Below shows an easy step by step guide on how to do this.
How to make a DSC quick call
You can also make a quick DSC call. Quick DSC calls make a call to the target vessel without asking you to select a working channel to call on.
To make a Quick Call:
Start by selecting a vessel to call.
Press and hold the DSC softkey for 3 seconds.
Confirm the call and wait for a reply. Once a reply is received and the call begins, use the fist mic to communicate.
How to make DSC calls from the Plot screen
How to make DSC calls from the Plot screen
The X100 has the unique functionality of being able to make a DSC call to any target vessel that appears on the AIS Plot screen.
The X100 brings AIS and DSC together to make communication easy. You can send a DSC message from the AIS PLOT screen directly to the selected target.
Below shows an easy step by step guide on how to do this.
You can also make a quick DSC call. Quick DSC calls make a call to the target vessel without asking you to select a working channel to call on.
To make a Quick Call:
Start by selecting a vessel to call.
Press and hold the DSC softkey for 3 seconds.
Confirm the call and wait for a reply. Once a reply is received and the call begins, use the fist mic to communicate.
Group calls
Group calls
A GROUP CALL is initiated when you call a group contact from your PHONEBOOK or by entering the Group MMSI number for the specific group you wish to reach. This feature allows you to communicate with multiple vessels at once, making it ideal for coordinating activities, sharing information during events, or managing fleet communications efficiently.
How to make and receive group calls
How to make and receive group calls
Below shows you an easy step by step guide on how to make a group call.
To accept a group call:
INFORMATION
To accept a GROUP call, your X100 must have the group MMSI number already saved in the phonebook.
When a call is received, press the ACCEPT softkey. This will silence the alarm and close the message window. You can choose to accept the call on the proposed channel or suggest a different channel for communication. This flexibility allows you to manage your conversations more effectively, ensuring you can connect in the way that works best for you.
Once you’ve accepted the call, use the fist-mic to communicate. Just hold the mic close and speak clearly to ensure your message comes through loud and clear.
To reject the group call:
Press the REJECT softkey, this will silence the alarm and close the message window. This allows you to dismiss a call quickly.
Select a reason for rejecting the call, this allows you to give a reason to the caller such as being busy or unable to respond at that time. This is a useful way to politely manage communications and let the caller know why you are not answering calls.
To ignore the group call:
Press the IGNORE softkey. This will silence the alarm and close the message without sending any feedback to the caller, allowing you to continue with your tasks uninterrupted.
You also have the option to simply not answer the call. In this case, the call will continue ringing on your end until the caller decides to end it. This lets you ignore the call without pressing any buttons, but keep in mind that the alarm will keep sounding until the caller hangs up.
All ships call
All ships call
You can use an ALL SHIPS call to broadcast SAFETY and URGENT calls to all nearby vessels and coast stations.
SAFETY calls alert nearby vessels to navigational warnings, weather forecasts, and search and rescue updates. They help prevent accidents, avoid hazards, and ensure coordination during emergencies.
Send an URGENCY call for situations that pose a danger but don’t require immediate assistance. These calls alert nearby vessels and shore stations, ensuring awareness and possible support while emphasizing caution.
How to make safety calls
How to make safety calls
Below shows you an easy step by step guide on how to make a safety call.
Always ensure that you follow up all SAFETY calls with a SÉCURITÉ voice message on Channel 16. Once the message has been sent, use the fist mic to make a SÉCURITÉ call. You must say the following in the order shown:
SÉCURITÉ, SÉCURITÉ, SÉCURITÉ.
ALL STATIONS, ALL STATIONS, ALL STATIONS.
This is <state the name of your vessel three times> and <State your MMSI>.
<State hazard and position>.
<State time of origin>.
OUT.
When you make a SAFETY call, the following information automatically transmits to all stations within range:
Your vessel’s MMSI number.
The position of our vessel at the time the safety message was broadcast.
The local time.
The transmission frequency.
A safety, or sécurité, call is a type of radio message used to warn other ships about important navigational or weather-related hazards.
How to make urgency calls
How to make urgency calls
Below shows you an easy step by step guide on how to make an urgency call.
PAN PAN, PAN PAN, PAN PAN.
Always ensure that you follow up all URGENCY calls with a PAN PAN voice message on Channel 16. Once the message has been sent, use the fist mic to make a PAN PAN call. You must say the following in the order shown:
PAN PAN, PAN PAN, PAN PAN.
ALL STATIONS, ALL STATIONS, ALL STATIONS.
This is <state the name of your vessel three times>.
Call sign <state your call sign>, MMSI <state your MMSI number>.
My position is <state your position>, <state nature of distress>.
Reason to call <state the reason for the call and include all relevant information>.
OVER.
When you make an URGENCY call, be aware that the following information automatically transmits to all stations within range:
Your vessel’s MMSI number.
The position of our vessel at the time the safety message was broadcast.
The local time.
The transmission frequency.
Providing this information helps ensure that all nearby vessels are informed of your situation and can take the necessary actions.
Receiving a safety or urgency call
Receiving a safety or urgency call
From time to time you may receive a safety or urgency call, when a safety or urgency call is received:
Press the SHOW INFO softkey to view call details, which may contain important information useful in a potential rescue operation.
Press the ACCEPT softkey to accept the call, and listen for important information. When a safety or urgency call is accepted, the X100 automatically tunes to channel 16. To learn how to disable this, see here.
Distress calls
Distress calls
Distress calls are meant for situations where someone or a vessel is in immediate danger or in need of help. For example if the vessel starts taking on water, or there is a fire and the situation has gotten out of control.
The fastest way to make distress call is by lifting the flap and pressing the DISTRESS button located on the front of the X100. You can also make distress calls by using the DSC call softkey found on the AIS List and AIS Plot screens.
Once a distress call is sent, it automatically repeats every four minutes until it is acknowledged by a nearby vessel or coast station. This ensures that your emergency signal continues to broadcast, increasing the likelihood that help will receive your call quickly.
How to make and receive distress calls
How to make and receive distress calls
Follow the instructions below on how to make and receive distress calls.
Make a distress call using the distress button
Below shows you an easy step by step guide on how to make a distress call.
Press and hold the DISTRESS button for three seconds until a countdown appears. Release it when the countdown reaches zero. The radio will then switch to Channel 16, broadcasting your emergency to nearby vessels and coast stations.
When a DISTRESS call is made the following information is transmitted to all vessels and stations within range:
The position of your vessel at the time the distress call was made (this must be input manually if no position data is available).
Your MMSI number.
The time that the distress call was sent (this must be input manually if no position data is available).
The nature of the distress (if designated).
Follow up the distress with a mayday call, say the following in the order shown:
MAYDAY MAYDAY MAYDAY
This is <state the name of your vessel three times>.
Call sign, <state your call sign>,
MMSI <state your MMSI number>.
MAYDAY <state name of vessel one time>.
Call sign <state your call sign>, MMSI <state your MMSI number>.
My position is <state latitude and longitude, or true bearings and distance from a known point>.
I am <state nature of distress i.e. sinking, on fire etc.>.
I have <state number of persons on board and any other information — drifting, flares fired etc.>.
I REQUIRE IMMEDIATE ASSISTANCE.
OVER.
If you don’t receive an acknowledgement right away, don’t worry. Wait five minutes and resend the distress message. Repeating the call increases the chances of someone hearing and responding.
Make a distress call from the DSC call menu
Below shows you an easy step by step guide on how to make a distress call from the DSC call menu.
When a DISTRESS call is made the following information is transmitted to all vessels and stations within range:
The position of your vessel at the time the distress call was made (this must be input manually if no position data is available).
Your MMSI number.
The time that the distress call was sent (this must be input manually if no position data is available).
The nature of the distress (if designated).
Follow up a distress with a mayday call, say the following in the order shown:
MAYDAY MAYDAY MAYDAY.
This is <state the name of your vessel three times>.
Call sign, <state your call sign>,
MMSI <state your MMSI number>.
MAYDAY <state name of vessel one time>.
Call sign, <state your call sign>, and MMSI <state your MMSI number> again.
My position is <state latitude and longitude, or true bearings and distance from a known point>.
I am <state nature of distress i.e. sinking, on fire etc.>.
I have <state number of persons on board and any other information — drifting, flares fired etc.>.
I REQUIRE IMMEDIATE ASSISTANCE.
OVER.
If you don’t receive an acknowledgement right away, don’t worry. Wait five minutes and resend the distress message. Repeating the call increases the chances of someone hearing and responding.
Receiving a distress call
When a distress call is made it is usually the Coast Guard Radio station (CRS), and not a vessel that co-ordinates the rescue.
After receiving a distress call the X100 automatically tunes to Channel 16, to learn how to disable this click here.
When a distress message is received, an envelope icon will appear at the top of the screen, indicating that there is a new message for you to review. This helps ensure that you are aware of any urgent communications and can respond appropriately to assist in the situation.
When connected to a multifunction display (MFD), the position data from the distress call will be displayed in the Chart application. This provides a visual representation of the vessel’s location during the emergency. Once the distress call is acknowledged, the radio will resume standard operation, allowing you to return to normal communication activities while staying informed of any further developments related to the distress situation.
Acknowledging a distress call
When a distress call is made its is usually the Coast Guard Radio station (CRS), and not a vessel that co-ordinates the rescue rather than a vessel. You should only acknowledge a distress call in the following situations:
If a CRS has not answered the distress after 5 minutes.
If you are close enough to the distress call to offer assistance.
If you are ready to relay the DISTRESS call.
To acknowledge a distress call:
Switch to Channel 16 to listen for the distress voice message. By tuning in, you can hear any additional details about the distress situation or any follow-up instructions from the distressed vessel or coordinating rescue authorities. Stay on this channel during distress situations to ensure you don’t miss important updates.
Wait for the Coast Guard Radio Station (CRS) to acknowledge the distress call. The CRS will usually respond by confirming receipt of the call and providing further instructions. If no acknowledgement is received within five minutes relay the distress call.
Follow up the distress with a mayday call, say the following in the order shown:
MAYDAY.
State the name of the vessel in distress <repeat this three times>.
This is <State the MMSI of your vessel>, <state the name of your vessel 3 times> ,
<state the call sign of your vessel>.
RECEIVED MAYDAY.
Be sure to notify the shore authorities by any means available to relay the distress call if it hasn’t been acknowledged. Notify shore authorities by any available means, such as a cell phone or satellite communication. This ensures rescue services are alerted and can take action.
How to relay distress calls
How to relay distress calls
Distress calls can be relayed if the person or vessel in distress is unable to transmit the call. For example, if red flares are sighted or if the distressed vessel is out of range of the CRS, and you have already acknowledged the distress call by voice message. Relaying the call ensures that the emergency is communicated to the proper authorities or to nearby vessels, increasing the chances of a timely rescue response.
After receiving a distress call, the X100 automatically tunes to Channel 16, to learn how to disable this, click here.
If needed you can also manually relay a distress call if nobody answers.
To do this, use the fist mic to say and do the following in the order shown:
Switch to channel 16.
Press and hold the PTT button on the fist-mic.
Slowly speak the details of the distress:
MAYDAY RELAY, MAYDAY RELAY, MAYDAY RELAY.
This is <state the name of your vessel three times>, <state your call sign once>.
Received the following MAYDAY from <state the MMSI of the vessel in distress>, <state the name of the vessel in distress>, and <state the call sign of the vessel in distress>.
Message begins.
Repeat the distress message or details of the distress.
Message ends.
OVER.
Ignoring a distress call
Ignoring a distress call
You should only ignore a distress call if you are not in a position to help. For example, if you are in a distress situation yourself, or if the Coastguard Rescue Service (CRS) or another vessel has already acknowledged the distress call. Ignoring a distress call in these cases ensures that rescue coordination remains clear and focused without unnecessary interference.
To ignore a distress call, you can mute the alarm and cancel the distress alert. Press the ALARM OFF softkey to silence the alarm. Once the softkey is pressed, the radio will return to standard operation.
Position requests
Position requests
The radio can send position requests to any vessel equipped with DSC capability. This allows you to request the precise location of another vessel, which can be useful for navigation or coordinating with nearby vessels that are not equipped with AIS transceivers. If the request is acknowledged, the position data will be displayed on your system and all connected displays.
Below shows you an easy step by step guide on how to make a position request.
The radio can also reply to position requests from other vessels with DSC capability. To learn how to automatically respond to such requests, click here.
Responding to a position request
You can configure the X100 to automatically reply to a position request in the SETTINGS.
Below shows you an easy step by step guide of how to make a DSC TEST CALL.
A DSC CALL TEST is a perfect way to ensure that the DSC functions are working correctly. It’s important to periodically test the functionality to make sure your equipment is ready when needed, especially in emergencies.
Perform a DSC CALL TEST with your local coast guard to verify that your DSC messages are being transmitted correctly. The coast guard will respond to confirm a successful test.
Receiving a DSC test call
Receiving a DSC test call
Occasionally, you may receive a DSC test call from another vessel—this simply means they’re checking their equipment for proper functionality. You can configure the X100 to automatically acknowledge these test calls, or you can manually respond by pressing the Acknowledge softkey when a test call arrives.
To learn how to configure the X100 to answer test message automatically, click here.
Call logs
Call logs
All DSC calls are logged under the VIEW CALL LOG. To access the log, press the DSC CALL softkey and choose VIEW CALL LOG.
The following types of calls are logged:
Distress.
Distress relay.
Distress acknowledgements.
Sent position requests.
Received position requests.
Group calls.
All ship calls.
Individual (routine) calls.
The following details get logged after each call:
MMSI number(s).
Type of call.
Date and time of a call.
Latitude and Longitude. (If sent with the call).
Nature of distress (distress calls only).
These details provide a clear record of communication, helping to track important safety information and manage any follow-up actions.
When you first enter the CALL LOG, you will see a list of missed calls, you can call back any of these by pressing the CALL softkey.
Press the ALL RX softkey to display both read and unread call history.
Press the ALL TX softkey to show all of the sent calls form your X100.
On the screen you will see icons next to each call, the icons are listed below.
Icon
Description
Unread The bell indicates that this call has been missed.
Acknowledged The arrow indicates that you have received a DSC message and have acknowledged it.
DSC Routine call The boat indicates that this is was a DSC routine individual call.
DSC Group call The boats indicate that this is was a DSC group call.
Safety call The warning icon indicates that this was a safety call.
SOS The SOS icon indicates that this was a distress call.
Enter position manually
Enter position manually
If your X100 is connected to an external GPS antenna, your position should be automatically updated. If your X100 is not connected to an external GPS antenna, there will be times when you have to enter your position manually, for example if someone asks for a position request, or when making of a distress call.
To enter your position manually:
Settings
Your X100 settings
VHF

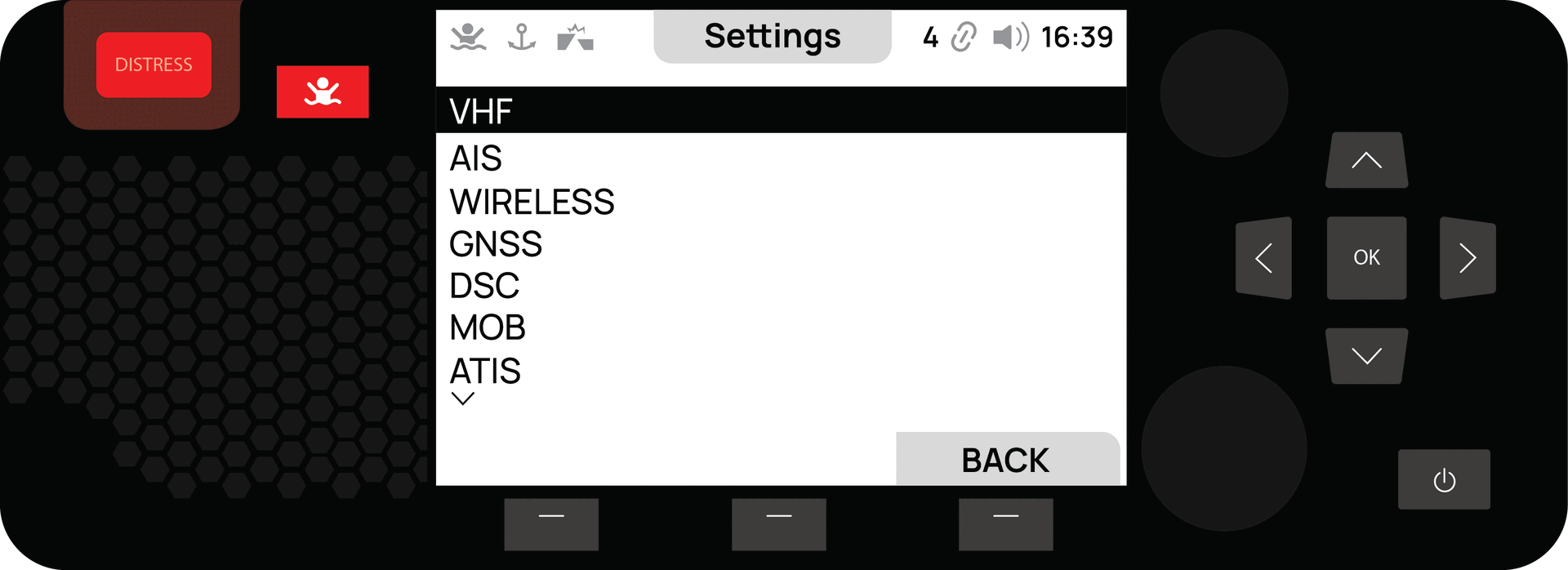

VHF
Under VHF, you can customize several key features of the X100, including the SCAN TIMEOUT, the WATCH TIMEOUT, NOISE REDUCTION, and options for certain CHANNELS and ATIS.

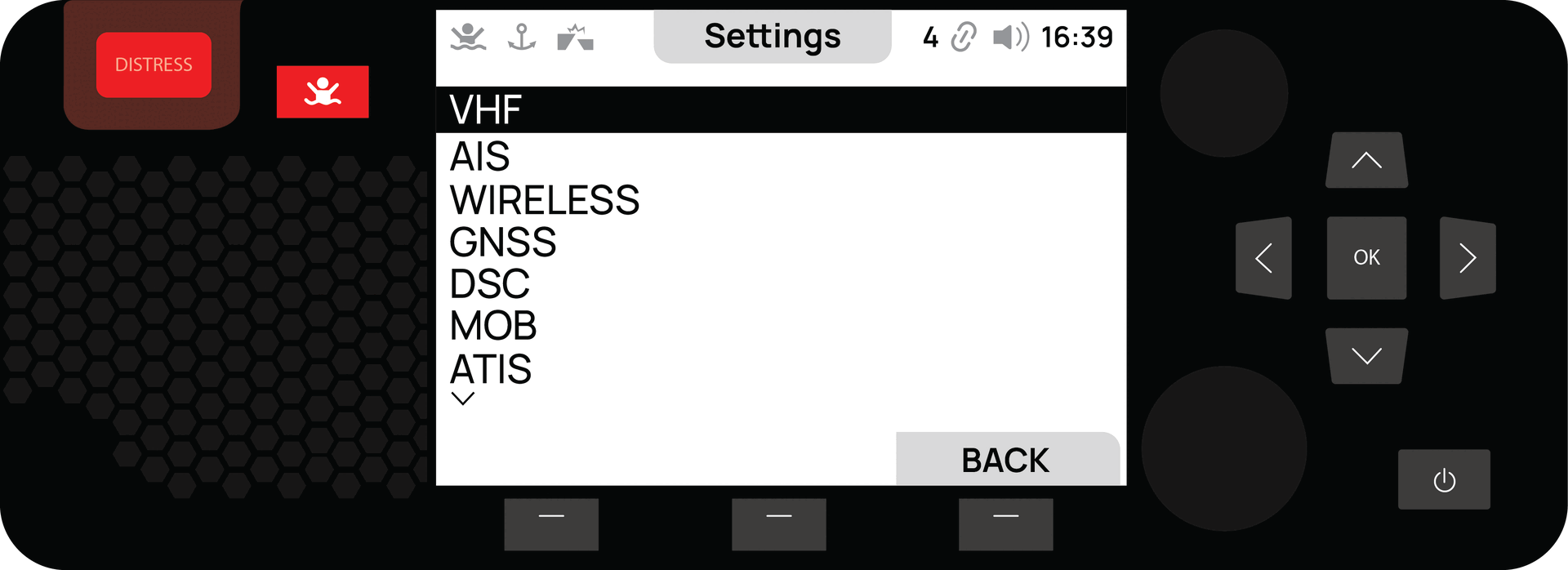

To see these options, from the SETTINGS, select VHF.
Scan timeout
Scan timeout
The SCAN TIMEOUT setting lets you adjust how long the scan pauses on a channel after a transmission ends. This can help ensure you don’t miss follow-up transmissions on busy channels or, alternatively, speed up scanning if you’re monitoring multiple channels and want quicker updates.
Below shows you how to set the scan timeout.
Once complete, the X100 returns to normal operation.
Watch timeout
Watch timeout
The WATCH TIMEOUT setting lets you adjust how long the watch pauses on a channel after a transmission ends. This can help ensure you don’t miss follow-up transmissions on busy channels or, alternatively, speed up scanning if you’re monitoring multiple channels and want quicker updates.
Below shows you how to set the watch timeout.
Once complete, the X100 returns to normal operation.
Noise reduction
Noise reduction
NOISE REDUCTION helps improve the clarity of your broadcasts by minimizing background noise. This feature is especially useful in noisy environments, ensuring that your voice is clear and easy to understand.
If you are trying to transmit a message in a loud environment its best to set the NOISE REDUCTION to HIGH. This setting effectively filters out background noise, making it easier for others to hear your voice clearly during broadcasts.
Below shows you how to enable noise reduction.
.
Channels
Channels
Under CHANNELS, you will have two main options, CALL CHANNEL and REGION. Changing the REGION will give you other options like changing the PRIV CH SET and the ATIS REGION.
The CALL CHANNEL is the 3rd channel set while in Tri watch mode. Which channels that are available will vary depending on what REGION is set.
For more information on watch and scan modes click here.
Below shows you how to adjust the options under channels.
You can choose from four regions: INTERNATIONAL, USA, CANADA, and ATIS. Each region has its own set of channels tailored to local regulations and communication needs. Simply use the arrow keys to select the region that best applies to your current location and requirements, ensuring you have access to the correct channels for effective and compliant communication.
If you choose INTERNATIONAL, you can also choose a specific channel set. Use the arrow keys to scroll through and select the channel set that best suits the needs of the area you’re navigating. This ensures you’re tuned to the appropriate frequencies, helping you stay compliant with local maritime communication protocols and ensuring effective communication with other vessels or authorities.
When navigating Europe’s inland waterways, select ATIS. This setting allows you to choose a specific RAINWAT region to align with local communication standards. Use the arrow keys to select the most applicable region for your area.
AIS
AIS
Under AIS, you can access a range of options:
ALARMS LIST to view any active alarms,
ALARM SETTINGS to configure alert preferences,
SILENT MODE to enable or disable silent operation,
SART TEST for running a test of the SART (Search and Rescue Transponder),
SAFETY MESSAGES to view received safety alerts, and
OWN VESSEL to check static settings for your vessel (note: this feature is not available in the U.S.).
Each of these options helps you manage AIS functions for safer and more efficient navigation.
To access these options, select SETTINGS and then AIS.
Alarms List
Alarms List
The ALARMS LIST displays all active alarms. To access it, go to SETTINGS, select AIS, and then choose ALARMS LIST.
Below shows you how to view the active alarms.
Acknowledging an alarm silences it, stopping pop-up notifications, though the alarm will stay active in the list until the issue causing it is resolved.
Alarms settings
Alarms settings
If your heading sensor becomes misaligned with the front-back axis of your vessel, the HEADING LOST alarm triggers. If you don’t want the alarm to trigger, go to SETTINGS, then AIS, and select ALARM SETTINGS.
INFORMATION
You should only enable the HEADING LOST alarm if your vessel is equipped with a heading sensor, as this alarm relies on that sensor’s data.
Below shows you how to enable to heading lost alarm.
Silent mode
Silent mode
There may be situations where you need your X100 to stop broadcasting your location, for example if you have found a good fishing area that you don’t want to share.
To enable SILENT MODE, from SETTINGS, select AIS, and then SILENT MODE.
Below shows you how to enable silent mode.
You can choose from three settings:
DISABLED – SILENT MODE is off, and your vessel’s position will be broadcast periodically.
CONTINUOUS – SILENT MODE is on and remains active until you manually change the setting.
TIMER – Selecting TIMER activates the SILENT TIMER, which enables SILENT MODE for a set duration. The timer is adjustable in 30-minute intervals, allowing you to temporarily stop broadcasting your position for a specific period.
SART (search and rescue transponder) test
SART (search and rescue transponder) test
The X100 can connect to your on board SART (Search and Rescue Transponder) via NMEA. When a test is performed, a SART test message is broadcast to all nearby vessels and AIS-equipped Coast Relay Stations, including your own.
The test runs for 15 minutes, and while it is running you should follow the manufacturers instructions that may include checking all visual and audio indicators.
The step by step instructions below show you how to perform your own.
Safety messages
Safety messages
When a safety message is received, it appears in the safety messages list. These messages might include important information like nearby hazards or weather warnings. You can easily review the message and mark it as read once you’ve taken action.
Below shows you how to view the active safety messages.
Own vessel
Own vessel
INFORMATION
In certain regions, like the USA, end users are not allowed to enter or change their own vessel data. If any data needs entering or editing, contact your local em-trak dealer.
There may be times when you need to update details about your vessel. OWN VESSEL provides the flexibility to modify key information, including your ship’s name, call sign, vessel type, and antenna position.
Below shows you how to view the details of your vessel.
You can use the on screen keyboard, or the arrow keys to edit the information quickly and easily. Make sure to press the SAVE softkey after editing any information.
Wireless
Wireless
Under WIRELESS, you can easily set up a Wi-Fi network in either STATION MODE or AP MODE. If you want to connect your X100 to an existing network for internet access, STATION MODE is the way to go. But if you’re looking to create a new network for other devices to join, AP MODE is a better option.
If you change your X100 to STATION MODE or AP MODE, you’ll need to make sure your devices are set up accordingly.
For example, if the X100 is in AP MODE and you switch it to STATION MODE, all of your devices will need to be connected to the same wireless network as the X100 to keep everything working smoothly.
AP mode
When you choose to configure the X100 in AP MODE, your X100 acts like a wireless router, making it very convenient to connect your smart devices. For example, if you’re out fishing you can use your smart device as a wireless fist-mic. It’s a great way to stay connected and make the most of your time on the water.
Station mode
When you set up the X100 in STATION MODE, it connects to your existing onboard wireless network. This means all your smart devices can join the same network as the X100, making it easy to share information and stay connected. For instance, you can stream navigation updates on your tablet while using your phone to communicate with crew members.
But be aware that some options under the WIRELESS menu are not available if the X100 is configured in STATION MODE.
Connection status
The CONNECTION STATUS displays information about the network your device is connected to.
The following information is shown:
Status
Definition
MODE
This shows which mode your device is currently configured for, either ACCESS MODE or AP MODE.
STATUS
This shows weather or not your device is connected to a wireless network. If it’s configured in AP MODE this is will show say your X100 is DISCONNECTED.
SSID
When a network is set up, an SSID (network name) is created to identify it. This makes it easy to find and connect to the right network.
In STATION MODE, the SSID will show the name of the network you’ve joined, so you can quickly confirm you’re on the right one.
In AP MODE, the SSID shows the name of the network created by the X100, which helps you connect your smart devices directly to it.
This setup ensures you always know which network to join, whether you’re connecting to an external network or directly to the X100.
CHANNEL
Under CHANNEL, you can see the Wi-Fi channel that the X100 is currently using to broadcast.
Knowing the current channel can be useful if you’re troubleshooting connection issues or if there’s a lot of Wi-Fi traffic in your area. Switching to a less congested channel may improve your network’s performance.
To see the current channel the X100 is using, from SETTINGS, select WIRELESS, and then CHANNEL.
RSSI
Your Received Signal Strength Indicator (RSSI) measures the strength of the wireless signal received by your device. A value around -120 dBm indicates a very weak signal, while 0 dBm means the signal is strong.
AUTH (Authentication)
This is a security process that verifies a device, such as a smart phone or tablet, before it is allowed to connect to your network. This ensures that only authorized users or devices can access the network, helping to protect against unauthorized access and keeping any sensitive data shared on the network secure.
To can see the security protocol your network uses by selecting, SETTINGS, CONNECTION STATUS, and then selecting AUTH.
NUM CLIENTS
This indicates the number of Wi-Fi devices that are connected to the X100 via the wireless network. This only applies when in AP mode.
MAC (media access control) Addresses
The MAC ADDRESS is a unique 12-digit hexadecimal number assigned to every device connected to a network. It acts like a digital fingerprint, ensuring that your device can communicate properly with others.
The MAC addresses for the following are listed:
Wi-Fi station.
Wi-Fi Soft AP.
Bluetooth.
To see the MAC addresses, from SETTINGS, select WIRELESS, and then MAC ADDRESSES.
Show Wi-Fi QR code
The QR code is a quick and easy way to connect your smart device to your X100. Scan the QR code with your device and follow the instructions to connect your device successfully.
Show app store QR code
This QR code is different from the Wi-Fi QR code—it links directly to the app store so you can download the Connect-X app. Simply scan the code with your device and follow the instructions to install the app. This is especially useful when setting up a new device to connect to your X100.
Current network
Under CURRENT NETWORK, you can view all details about the network you’re currently connected to, though this information can’t be changed here it can be used if you’re troubleshooting network connectivity issues, and you need to connect to an external navigation app.
To access this screen, go to SETTINGS, select WIRELESS, then select CURRENT NETWORK. Here, you’ll find:
Mode
IP Mode
IP Address
Gateway Address
Subnet Mask
AIS Port
Additionally, you have options to DISCONNECT and FORGET a wireless network:
To DISCONNECT (e.g. if you need to switch to a different network temporarily), select DISCONNECT, and the X100 will leave the current network.
To FORGET a network, select FORGET. This will erase the connected network’s password from the X100, which is useful if you want to prevent it from reconnecting automatically.
Reset WI-FI Settings
You can reset the Wi-Fi settings on the X100 to return everything to its original factory settings. This is helpful if you’ve made changes to the network or connection settings and need to start fresh, or if you’re troubleshooting connectivity issues.
Once reset, all custom Wi-Fi configurations (like network names and passwords) will revert to the factory defaults, so you may need to reconnect your devices afterwards.
To reset the Wi-Fi settings, from SETTINGS, select WIRELESS, and then RESET WI-FI SETTINGS.
GNSS (GPS)
GNSS (GPS)
Under GNSS, you can view information related to:
FIX QUALITY : This shows you how accurate the GNSS fix is.
GNSS Mode: This indicates the current operational mode of the GPS receiver.
GNSS Information: This includes details about the satellites in view, signal quality, and your current position accuracy.
Output NAV: Here, you can see the specific data sentences being output by the GPS receiver, which may include your position, speed, course, and other navigational data.
This information is essential for understanding your device’s navigation capabilities and ensuring accurate positioning during your travels.
Fix Quality
Fix Quality
The FIX QUALITY option indicates whether there’s a real-time fix on your location. If you don’t have a location fix, the GPS functions won’t be operational.
To check the quality of the GNSS, go to SETTINGS, select DIAGNOSTICS, and then choose FIX QUALITY. YES indicates a good fix, NO FIX means there’s no fix, and ERROR signals an issue in determining your position.
If you do not have a fix or see the error message, click here.
GNSS (GPS) mode
GNSS (GPS) mode
The X100 automatically selects satellites and constellations based on your location. It supports the following GPS modes:
GPS (Global Positioning System): This is the most widely used satellite navigation system.
GALILEO: The European Union’s satellite navigation system.
BEIDOU: China’s satellite navigation system.
If you cannot get a GNSS fix then you can choose a single navigation system, or a combination of the systems. You can choose a single navigation system, or a combination of the systems.
To choose a navigation system From SETTINGS, select GNSS and then GNSS MODE. You can use the arrow keys to select which mode(s) you want to use.
Below shows you how to change between GNSS modes.
GNSS (GPS) Info
GNSS (GPS) Info
Under GNSS INFO, you can view all of your current position details in one place. This keeps everything organized and easy to access, so you can quickly find the information you need.
Below shows you how to see all of the information related to your current position.
Output Sentences
Output Sentences
OUTPUT SENTENCES communicate with your chart plotter via NMEA, providing accurate location data for positioning. They also help troubleshoot real-time location issues, ensuring smooth navigation.
Below shows you how to enable to X100 to generate output sentences.
DSC

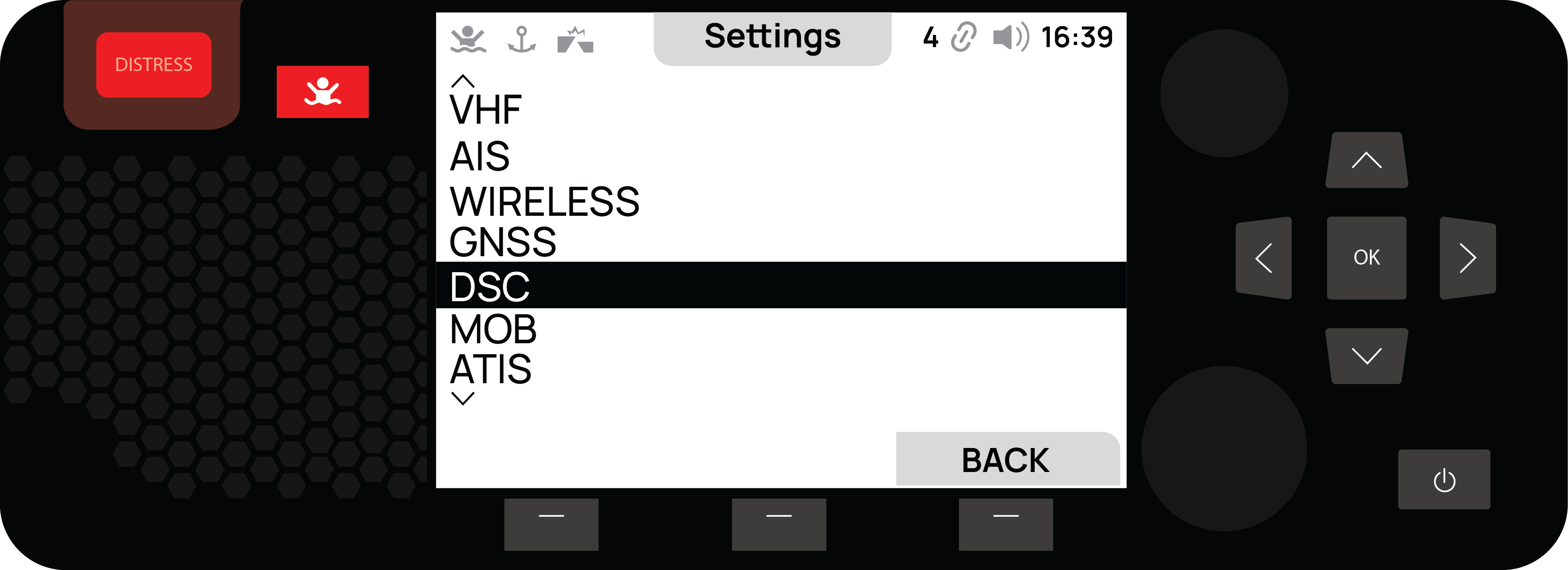

DSC
Under DSC you have the freedom to configure the X100 to automatically respond to messages, requests, enable or even toggle certain features on or off.
An automated procedure is something that you can configure the X100 to do automatically, like respond to position requests by sending your co-ordinates without any manual input.
These settings allow you to customize how your system handles distress, test messages, position requests, and more, ensuring better management of communications in varying situations.
Below shows you how to adjust the DSC settings.
AUTO ACKNOWLEDGE TEST MESSAGES You can configure the X100 to automatically reply to all incoming test messages, so there is no manual input from you.
NON AUTOMATED PROCESS TIMEOUT You can configure a timeout to end any processes that doesn’t end automatically like making or receiving a DSC or VHF call.
NON DISTRESS AUTOMATED PROCESS TIMEOUT You can configure a timeout to end any processes that are not distress related such as group calls.
RX DISTRESS AUTOMATED PROCEDURE TIMEOUT This setting lets you adjust how long the X100 waits before finishing the incoming distress process. A warning message will appear on the screen ten seconds before the timeout is triggered, giving you a heads-up. Once the timeout completes, the distress request process automatically ends.
COMMUNICATIONS AUTOMATED TIMEOUT PROCEDURE This is the time limit set to prevent another process from interrupting the task you are currently performing.
For example, if you are on a DSC call and you receive a position request, you will not receive a notification until the set timeout elapses. You will however have an option to accept and overwrite the timeout or log the call and return to it later.
AUTO CHANNEL CHANGE This lets you configure whether or not the X100 will change to another channel automatically when receiving an incoming call, or request.
AUTO ACKNOWLEDGE INDIVIDUAL CALL This lets you choose whether the X100 automatically accepts incoming individual calls or allows you to decide which calls to answer or ignore.
AUTO ACKNOWLEDGE POSITION REQUESTS This setting allows you to enable the X100 to automatically reply, ignore or require a manual response to any incoming position requests with your current co ordinates.
NMEA SENTENCE OUTPUT This feature allows you to configure the X100 to output NMEA sentences to any connected NMEA-compatible device, such as a chart plotter.
DSC QUICK CALL: This allows you to enable or disable the DSC Quick Call function. For more information on how to make quick calls, click here or here.
MOB
MOB
You can EMBARK or DISEMBARK devices, and then ENABLE MONITORING of the embarked devices. Only embarked devices receive MOB alarms.
Enabling MONITORING is particularly useful when you’re keeping track of crew members with assigned devices. For example, if someone with a monitored device goes overboard or moves out of range, you’ll be alerted immediately, allowing for a quick response in case of emergencies.
Manage devices
Manage devices
MANAGE DEVICES enables you to EMBARK and DISEMBARK any crew members smart device that is already on the same wireless network as the X100, and to activate the MOB monitoring feature. Every time someone boards the vessel, you should EMBARK their device to enable this safety functionality. Likewise, when leaving, you should DISEMBARK the device to prevent any false MOB alerts.
Take time to make sure that the monitoring feature is enabled under ADVANCED, so that the embarked devices receive all MOB alerts. Click here to learn how to do this.
Below shows you how to easily EMBARK a device.
To DISEMBARK a single device, follow the same steps, but press the DISEMBARK softkey. To remove all devices at once, simply press the DISEMBARK ALL softkey. This ensures that only active devices are tracked, helping to avoid false MOB alerts.
Advanced
Advanced
Under ADVANCED, you can turn enable MONITORING and adjust the MONITORING SENSITIVITY to control alert timing.
Before you enable monitoring, make sure that all of the applicable devices are embarked.
INFORMATION
Before you enable monitoring, make sure that all of the applicable devices are embarked, to learn how to embark a device click here.
Enable or Disable Monitoring: When MONITORING ENABLED is set to YES, you’ll receive alerts for any MOB incidents. Setting it to NO disables these alerts.
Adjust Monitoring Sensitivity: When MONITORING ENABLED is set to YES, you can set the MONITORING SENSITIVITY. Higher sensitivity makes the MOB alarm trigger more quickly but increases the chance of false alerts. Lower sensitivity reduces false alarms but may delay the alarm trigger.
Below shows you how to enable MOB monitoring and adjust the alert sensitivity.
Audible alert
Audible alert
You can enable or disable the audible alarm that accompanies the MOB alert, if enabled the alarm sounds for the duration of the MOB alert.
By default the audible alarm is enabled.
From SETTINGS, select MOB, then AUDIBLE ALERT, you can use the arrow keys to ENABLE or DISABLE the audible alert.
Below shows you how to enable or disable to audible alert.
ATIS

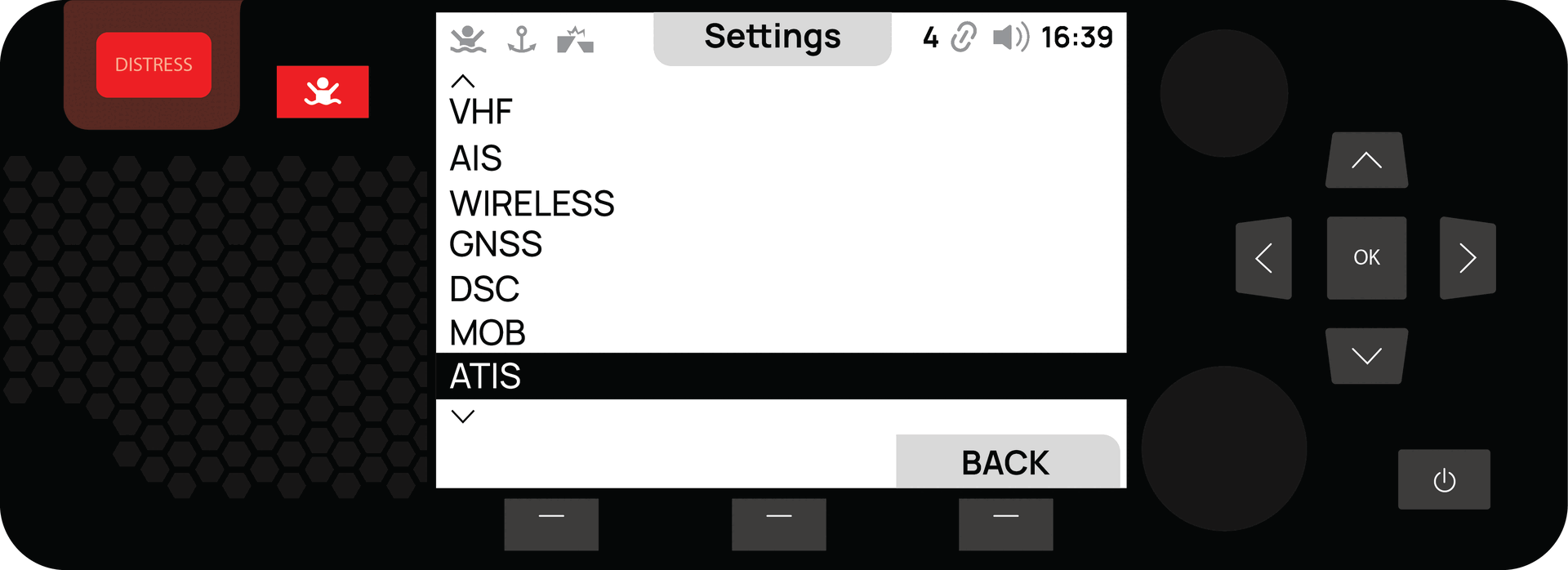

ATIS
ATIS is specifically designed for use in the inland waterways of RAINWAT (Regional Arrangement Concerning the Radiotelephone Service on Inland Waterways) countries. When ATIS is enabled, the DSC functions on the device do not operate. It’s important to remember not to enable ATIS when you’re in open water, as it could hinder your ability to use essential communication features. This ensures that you maintain effective communication and navigation capabilities in various environments.
Under ATIS, you can turn ATIS MODE ON or OFF and set your unique ATIS ID.
You must enter your ATIS ID first in order to enable ATIS MODE.
Setting your ATIS ID
You can obtain your ATIS ID from the same agency that issues radio operator licenses in your area. This helps to facilitate effective communication and navigation on inland waterways.
An ID typically starts with a 9, consists of 10 digits, and is entered only once. If you ever need to change your ATIS ID, contact your local dealer for assistance. This ensures proper identification and compliance with regulations in inland waterways.
Below shows how to you can easily enter your ATIS ID.
Once entered, the ATIS ID cannot be deleted or changed by you, so make sure it is entered correctly. If you need help contact support@em-trak.com.
Enabling and disabling ATIS mode
ATIS mode should only be used when navigating the inland waterways in RAINWAT countries. When ATIS is enabled, the DSC function on the X100 will not work. For this reason, it’s best not to enable ATIS while you’re in open water to maintain full communication functionality. This ensures you can use DSC for emergency and routine calls when needed.
To enable the ATIS mode you first must enter your ATIS ID, then go to SETTINGS, select ATIS and then MODE. You can use the arrow keys to toggle ATIS mode ON/OFF.
Below shows you how to easily enable ATIS Mode.
Alerts

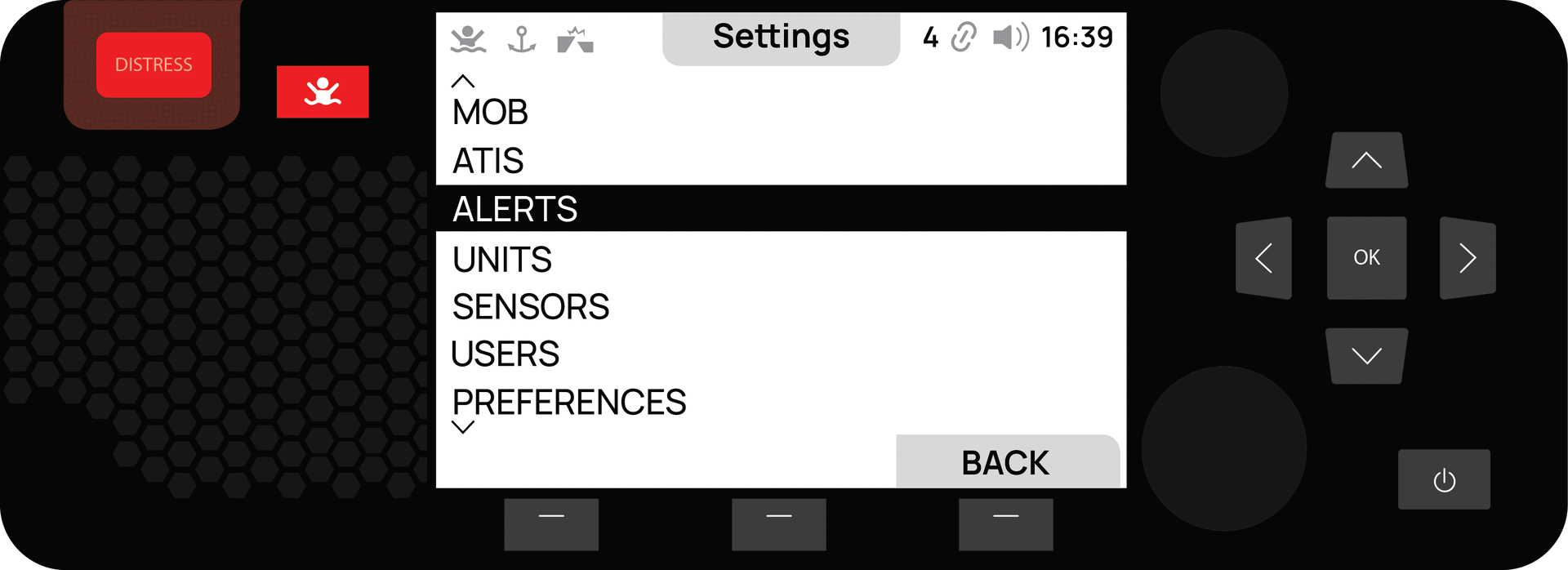

Alerts
Under ALERTS, you can set the limits and toggle the alerts for the following:
Closest Point of Approach (CPA) and Time to Closest Point of Approach (TCPA) alarm: These alarms work together and cannot be toggled on or off individually. This means that both alarms are activated or deactivated simultaneously, ensuring coordinated alerts for approaching vessels and potential collision risks.
CPA and TCPA THRESHOLD: The CPA THRESHOLD sets the minimum distance that another vessel can approach before an alarm is triggered, while the TCPA THRESHOLD indicates the time remaining until the vessel reaches the CPA limit.
ANCHOR WATCH: This monitors your vessel’s position in relation to the anchor point. If your vessel drifts beyond the set ANCHOR LIMIT, an alarm will sound, and a pop-up notification will appear on the screen. This feature helps ensure that your vessel stays safely anchored and alerts you if it moves unexpectedly.
ANCHOR WATCH LIMITS: While anchored and your vessel drifts beyond this set limit, an alarm will sound, and a pop-up notification will appear on the display. This visual and audio alert helps you stay informed of any unexpected movement while anchored, ensuring the safety of your vessel.
CPA and TCPA alerts
CPA and TCPA alerts
The X100 allows you to manage the CPA and TCPA alarms, you might want to turn these off if you’re navigating in busy waters.
In open ocean, you might want to set the CPA and TCPA to higher values. This allows the alarm to function more like a proximity detector, giving you early warnings about vessels entering a wide safety zone around your position.
Setting these alarms can help you stay aware of nearby vessels and avoid potential collisions by giving you a good warning before any chance of collision can happen.
Below shows you how to turn the CPA and TCPA alerts ON/OFF.
CPA and TCPA threshold
CPA and TCPA threshold
If you’re navigating in busy waterways or near other vessels, setting the CPA THRESHOLD ensures you’ll be alerted if another vessel is predicted to get too close, giving you enough time to take action and avoid a collision.
This allows you to define the safe distance around your vessel and receive alerts when other vessels come too close.
Below shows you how to set the threshold.
If you’re approaching a busy area or navigating through narrow channels, setting the TCPA THRESHOLD helps you monitor how much time you have before another vessel comes too close, allowing you to adjust your course or speed in advance.
This setting allows you to define how much time remains before both vessels reach the CPA, giving you ample warning to take any necessary action.
Below shows you how to set the threshold.
CPA Audio Alarm
CPA Audio Alarm
The CPA AUDIO ALARM is a sound that alerts you when the CPA threshold is breached. For example, if another vessel gets too close, the alarm triggers to grab your attention immediately. You can configure the alarm to be audible or silent, depending on your preferences and environment.
Below shows you how to turn the alarm ON or OFF.
Anchor watch
Anchor watch
There will be times when you’re anchored that the current may cause your vessel to drift. You can set an ANCHOR WATCH alarm on the X100 that notifies you when you drift too far.
Once set, a virtual safety zone is set up around your anchor point. If your boat drifts beyond this area because of wind, currents, or other factors, ANCHOR WATCH will alert you with a pop-up or alarm. Make sure you turn on anchor watch after the boat is anchored and not drifting. It’s a great way to have peace of mind, knowing you’ll be notified if your vessel starts moving unexpectedly.
Below shows you how to turn ANCHOR WATCHON or OFF.
Anchor re-centre
Anchor re-centre
When you drop anchor, it’s a good idea to use the ANCHOR RE-CENTRE feature. For example, if your vessel drifts slightly due to wind or currents, this feature recalculates your position from the point the feature is activated. This helps ensure accurate tracking of your position while you’re anchored.
Below shows you how to re-centre your vessel.
Anchor threshold
Anchor threshold
When you activate ANCHOR WATCH, the ANCHOR THRESHOLD surrounds your vessel with your vessel in the middle. If the boat drifts beyond this set boundary, an alarm will sound, and a pop-up will appear on the screen to notify you.
Below shows you how to set the threshold.
Units

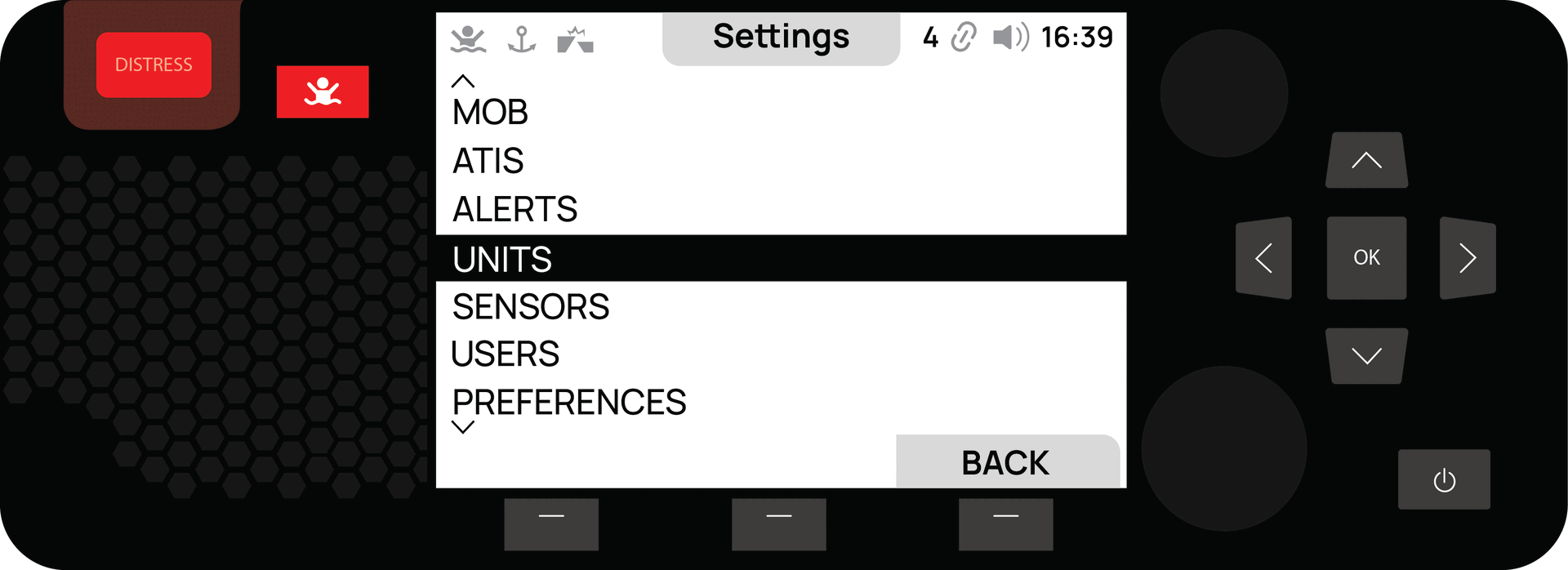

Units
On the X100, you can adjust certain settings to suit your needs. For instance, you can choose the preferred way units for distance and speed are shown.
Speed units
Speed units
You have the flexibility to display speed units on the X100 in knots (kn), miles per hour (mph), or kilometres per hour (km/h), depending on your preference.
Below shows you how to set the speed units.
Distance units
Distance units
You have the flexibility to display distance units on the X100 in nautical miles and meters (NM & m), nautical miles (NM), miles (mi), and Kilometres and Meters (km/m).
Below shows you how to set the distance units.
Length units
Length units
You have the flexibility to display length units on the X100 in metres (m), or feet (ft), depending on your preference.
Below shows you how to set the length units.
Sensors
Sensors
Under SENSORS, you can view and adjust the BAUD RATES for different devices connected to the NMEA0183 ports. The baud rate determines the speed of data communication between your X100 and the connected sensors. Adjusting the baud rate helps ensure that data is transferred efficiently and consistently, matching the requirements of each sensor for optimal performance.
Baud rates
Baud rates
The baud rate is the speed at which data is transmitted over a communication channel. In the context of serial ports, 4800 baud means the serial port can transfer a maximum of 4800 bits per second.
The following baud rates are available for selection:
4800 – This is only really used for legacy devices that have slower data transfer.
38400 – This works well for communication between the X100 and a chart plotter.
These rates control how quickly data can be sent between devices, and choosing the correct rate helps ensure smooth and reliable communication between your X100 and connected sensors.
Below shows you how to set the baud rate.
Users
Users
Under USERS you are able to set, edit and delete the CAPTAINS PIN, and see the list of users that have been registered to your X100.
Set and edit the captain’s PIN
Set and edit the captain’s PIN
Under USERS you are able to set, edit and delete the CAPTAINS PIN, and see the list of users that have been registered to your X100.
INFORMATION
This option is only available to the user with the captain’s role. The role is configured during the on-boarding process.
Selecting the SET CAPTAIN’S PIN option lets you change it. To update the PIN, from SETTINGS, select USERS, and then SET CAPTAIN’S PIN. You can then use the on-screen keyboard to enter a new one.
Below shows you how to set the captains PIN.
Delete captain’s PIN
Delete captain’s PIN
INFORMATION
If the Captain is the only profile on the X100 and that profile is deleted, you’ll need to re-enter the Captain’s credentials in the app.
Press the right arrow key on the CAPTAIN’S PIN option deletes the PIN, to set a new one follow the instructions described here.
Below shows you how to delete the PIN.
User list
User list
From the user list you can see all of the user accounts connected to your X100, you can also delete any account that is no longer needed.
Below shows you how to see a the user list and delete a user from the list.
Preferences

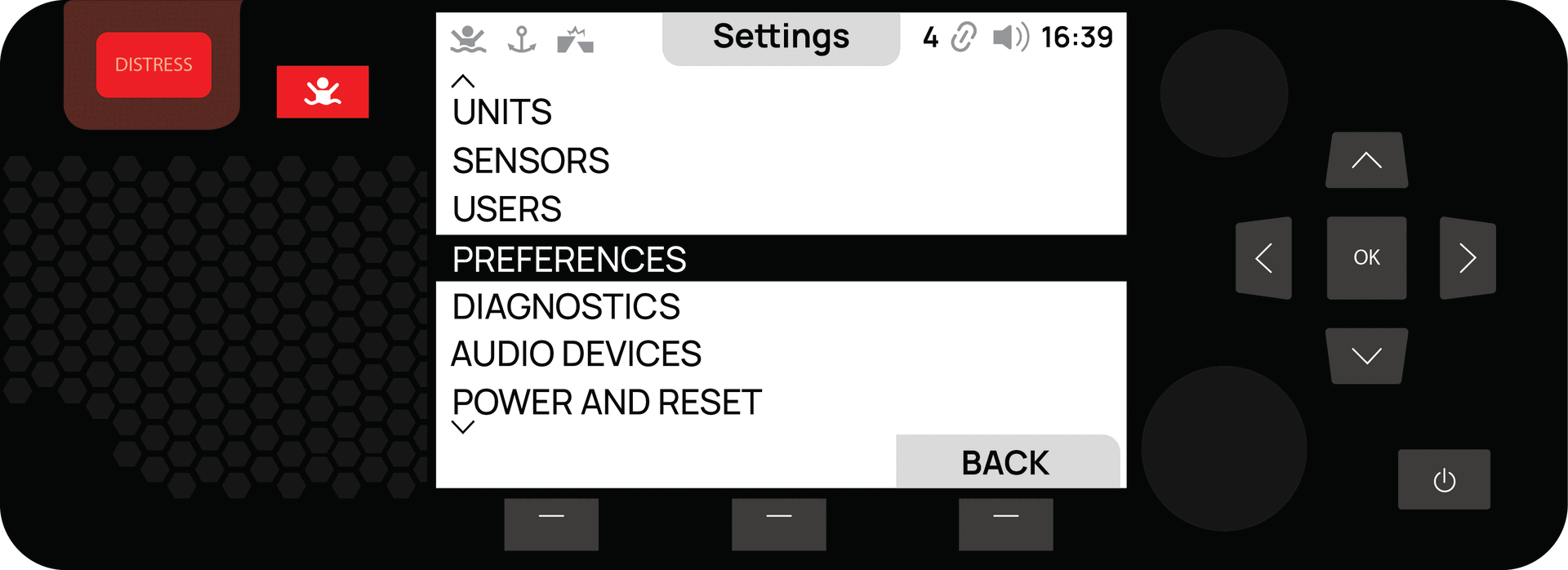

Preferences
PREFERENCES lets you customize your settings so you can set up your device the way you like it. To do this from SETTINGS, select PREFERENCES.
Key beep
Key beep
By default, the KEY BEEP function is enabled, so each time you press a button, you’ll hear a soft beep for confirmation.
Below shows you how to turn the KEY BEEPON or OFF.
Channel change beep
Channel change beep
By default, the CH CHANGE BEEP function is enabled, so each time you change channels, you’ll hear a soft beep for confirmation.
Below shows you how to turn the channel change beep ON or OFF.
Display theme
Display theme
You can change the appearance of the X100 software, under DISPLAY THEME. You can choose between DAY and NIGHT modes.
LIGHT: This mode uses a bright display that’s easy to see in sunlight or well-lit environments. It’s perfect for daytime use when you need maximum visibility to read the screen clearly, even in direct sunlight.
DARK: This mode adjusts the screen brightness and colours to reduce glare, making it easier on your eyes in low-light conditions.
NIGHT: This is ideal for night time navigation, helping maintain your night vision while ensuring the display remains readable.
By switching between these modes, you can adapt the display to your environment, enhancing both comfort and usability at any time of day.
Below shows you how to switch between the different themes.
Softkey grey
Softkey grey
The contrast of the softkey labels can be adjusted. By default the SOFTKEY GREY is set to THEME.
Below shows you how to adjust the contrast of the softkeys.
Brightness
Brightness
BRIGHTNESS indicates the brightness level of the screen, enabling you adjust how light or dark the display appears. This is helpful for visibility in different lighting conditions, ensuring you can easily read the screen whether it’s sunny, overcast and everything in between.
Below shows you how to adjust the brightness of the screen.
Diagnostics
Diagnostics
Under DIAGNOSTICS, you can verify the validity of your MMSI number, check GNSS and AIS TX/RX fixes, monitor the SUPPLY VOLTAGE for the device, assess the VSWR ratio, and view the current software versions. This information helps ensure everything is functioning properly.
MMSI valid
MMSI valid
MMSI VALID lets you know if your MMSI number is valid, if it is valid a YES will be next to this option, otherwise a NO appears. If your MMSI is in valid all DSC functionality is disabled and you must acquire a MMSI immediately.
Click here for guidelines on how to acquire your MMSI number.
If your MMSI number is valid but displays as not valid, click here. The X100 may not be currently receiving a proper location signal, which may affect the ability to validate the MMSI number.
To check to see if your MMSI is valid, from SETTINGS, select DIAGNOSTICS and then MMSI VALID.
Fix quality
Fix quality
The FIX QUALITY option indicates whether there’s a real-time fix on your location. If you don’t have a location fix, the GPS functions won’t be operational.
To check the quality of the GNSS, go to SETTINGS, select DIAGNOSTICS, and then choose FIX QUALITY. YES indicates a good fix, NO FIX means there’s no fix, and ERROR signals an issue in determining your position.
If you do not have a fix or see the error message, click here.
AIS Tx
AIS Tx
You can see how many AIS transmissions have been made from your X100 by selecting SETTINGS, then DIAGNOSTICS, and finally AIS TX.
If the number is 0, it may indicate an issue. For troubleshooting steps click here.
AIS Rx
AIS Rx
You can see how many AIS transmissions have been received by your X100 by selecting SETTINGS, then DIAGNOSTICS, and finally AIS RX.
If the number is 0, this may indicate an issue, click here for potential solutions.
Supply volts
Supply volts
The millivolts powering the device display on screen, which is helpful for monitoring if the power supply is stable. This can alert you to potential power issues, especially in challenging conditions or if your device seems to be under performing.
To see the supply voltage, from SETTINGS, select DIAGNOSTICS, and then SUPPLY VOLTS.
If you have any concerns with the power supply click here for troubleshooting steps.
Voltage Standing Wave Ratio (VSWR)
Voltage Standing Wave Ratio (VSWR)
The VSWR reflects the quality of signal transmission on a line, with ratios under 5:1 considered good for clear communication. If VSWR exceeds 6:1, it indicates issues with the signal path, which may lead to unclear or failed VHF transmissions. Monitoring this ratio helps ensure optimal performance of your radio equipment.
To check your VSWR, from SETTINGS, select DIAGNOSTICS, and then VSWR.
If your VSWR ratio is high and you’re experiencing poor VHF transmission quality, check for any wiring faults between the X100 and the VHF antenna. Ensuring solid, intact connections can help improve signal quality.
PA status
PA status
The PA status refers to the power amplifier that generates the signal to the antenna. The status should read as OK, indicating that nothing is wrong with the amplifier.
To check the PA Status, from SETTINGS, select DIAGNOSTICS, and then PA STATUS.
Software versions
Software versions
You can view all installed software versions under BOOT VERSION, RADIO VERSION, and NET VERSION. This can be especially helpful if you need to confirm software compatibility before updates or when troubleshooting issues, as it lets you quickly check the current versions in use.
To view your currently installed software versions, go to SETTINGS, then select DIAGNOSTICS. Here, you’ll find the BOOT, RADIO, and NET versions listed.
Licensing
Licensing
Under LICENSING, you can view all licensing information, including compliance, certification, and open-source software license details. A more detailed breakdown is available in the Reference Guide.
To view this information, from SETTINGS, select DIAGNOSTICS ,and then LICENSING.
Audio devices

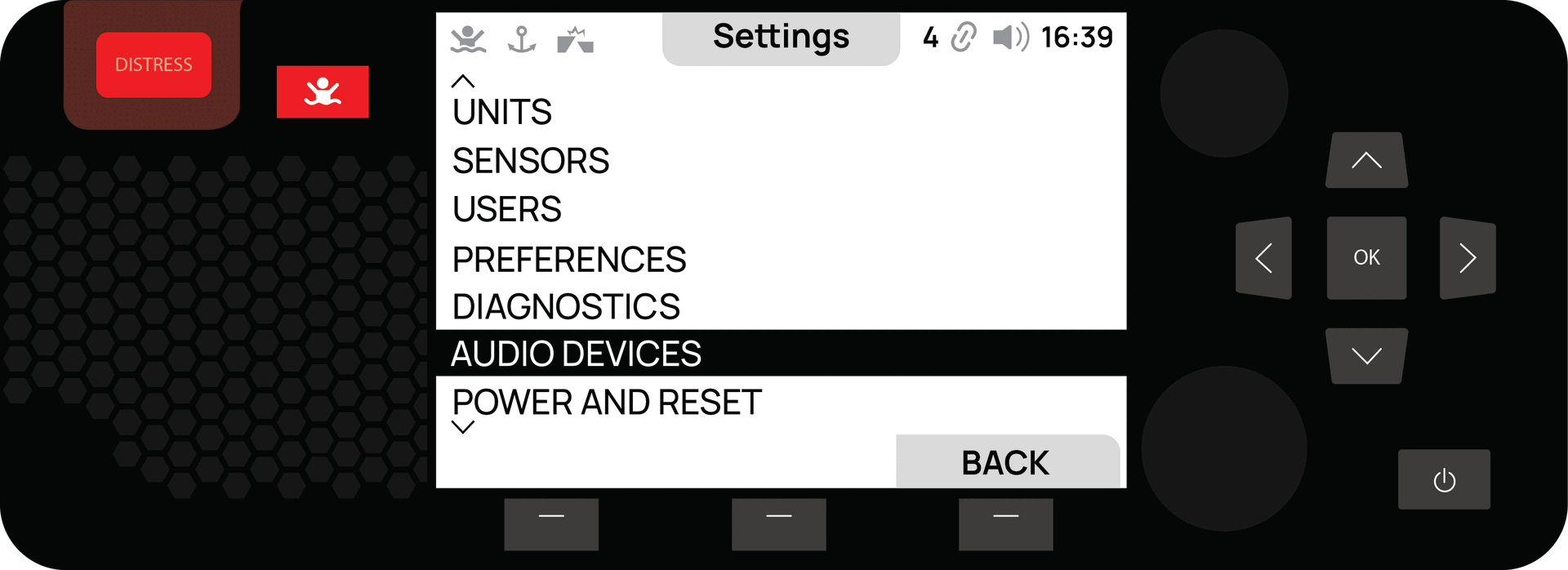

Audio devices
Under AUDIO DEVICES you are able to switch between using the EXTERNAL SPEAKER or LOUD HAILER.
The EXTERNAL SPEAKER allows incoming messages to be amplified in a location separate from the radio, allowing you and the crew to hear all incoming communications.
The LOUDHAILER is used for verbal communication with other vessels or people nearby, even if they are away from the boat.
To use these features ensure the LOUDHAILER and EXTERNAL SPEAKER are first connected to the X100.
You can activate either the EXTERNAL SPEAKER or the LOUDHAILER, but only one at a time.
Below shows you how to activate the EXTERNAL SPEAKER or LOUDHAILER.
Power and reset
Power and reset
Under the POWER AND RESET menu, you can reset or power off the X100, as well as restore the factory settings. This allows you to return the device to its original configuration if needed.
Reset
Reset
Selecting RESET will recycle the device’s power while keeping all data and settings unchanged. This can help resolve minor issues without losing your personalized configurations.
Below shows you how to reset the X100.
Restore factory settings
Restore factory settings
The RESTORE FACTORY SETTINGS feature wipes your contact list and any custom settings you have set. Be aware that your MMSI number will not be wiped.
INFORMATION
Once the factory reset begins, it must run to completion. If you’re troubleshooting or preparing the device for a fresh setup, ensure the process is allowed to finish to avoid any configuration issues.
Below shows you how to restore the X100 to its factory settings.
Power off
Power off
Selecting the POWER OFF option turns off the X100 without affecting any saved data or settings.
Below shows you how to power off the X100 through the settings menu.
Support and troubleshooting
Troubleshooting your X100
Support and Troubleshooting
Support and Troubleshooting
The troubleshooting section offers guidance on diagnosing and fixing common issues related to the installation and operation of your product. Each potential problem is paired with its likely cause and corrective actions, making it easier to identify and resolve issues quickly.
Every product is carefully tested and quality-checked before shipping, but if problems arise, this section is designed to help you restore optimal performance. If you still encounter issues after trying these steps, contact support@em-trak.com for links to additional resources and contact details for Product Support.
Contact us
Contact us
Every product is carefully tested and quality-checked before shipping, but if problems arise, this section is designed to help you restore optimal performance.
If you still encounter issues after trying these steps, email: support@em-trak.com for links to additional resources and contact details for Product Support.
Maintenance
Maintenance
WARNING
It is important that you never open the X100 even if you think there may be a problem with the hardware. Opening the X100 exposes you to hazards such as burning, electric shock and Radio Frequency radiation which can lead to significant harm or critical injury.
Routine cleaning
To keep enjoying your X100, it’s important to routinely clean the radio. Regular maintenance will help ensure it stays in great condition and performs well. When cleaning your radio make sure that:
The power supply is off.
You use a non-scratch microfibre cloth.
You DO NOT use an abrasive, acidic, ammonia, solvent, or chemical-based solutions.
You DO NOT jet wash the X100.
Routine checks
Regular checks are a great way to keep your radio in good working condition and ensure it operates at it’s best. Perform the following checks regularly:
Perform a DSC test message with a recreational vessel on one of the ship to ship channels to verify radio operation.
Examine cables and hardware for any damage, nicks, cuts, or splits.
Check that all cable connectors are secure and functioning correctly.
Power
Power
If you encounter any issues while powering up, refer to the solution below:
Possible cause
Solution
Blown fuse / tripped breaker
The fuse on the red power cable might have the wrong rating, open up the waterproof case and check the rating. If the fuse has blown simply replace the fuse with a new 5 x 20 mm 12A fuse.
There may be issues with the fuses, breakers, or connections. Check each of these for any problems, and replace them if needed to keep everything running smoothly.
If the fuse keeps blowing, take a moment to check for any cable damage, broken connector pins, or incorrect wiring. Addressing these issues can help prevent further problems.
Poor / damaged / insecure power supply cable / connections
There may be damage or corrosion on the cables or connectors, be sure to replace any cables or connectors that show signs of damage.
While the unit is turned on, gently flex the power cable to see if it causes the unit to reboot or lose power. If it does, replace the cable.
Check the vessel’s battery voltage, and inspect the condition of the battery terminals and power supply cables. Ensure all connections are secure, clean, and free of corrosion. If you find any issues, replace parts as necessary to maintain reliable power.
Some components may not be performing at their best. While transmitting at 25W, use a multimeter to check for any significant voltage drops across all connectors. If you find any, replace the affected components to ensure everything functions smoothly.
Incorrect power connection
The power supply might be wired incorrectly, double-check that the installation instructions have been followed carefully.
Power source insufficient
Your power supply may be providing less than the minimum voltage of 9.6V DC. See here to check the voltage the X100 is receiving when transmitting at 25W and when it is inactive.
Audio
Audio
No audio reception
Possible cause
Solution
Incorrect settings
You may need to perform a factory reset, to learn how to do this click here.
Incorrect channel type in use.
You may be using the wrong channel type, ensure that you are only using the simplex channels when testing. For example, you can use channels 6, 8, 9, 10, 13, 67, 72, or 73.
Incorrect volume or squelch level.
First, verify that noise is audible from the speakers by setting the squelch level to zero. If you don’t hear any noise, try adjusting the volume.
If you can hear audio or noise, press the Vol/Sq knob a few times until squelch is displayed, then adjust the squelch level until the noise stops.
If you still don’t hear any audio after completing these steps, contact support@em-trak.com for help.
No audio transmitting
Possible cause
Solution
Incorrect settings
If the audio settings are incorrect, try a factory reset. To perform a reset click here.
Dirt or debris blocking the microphone on the fist mic or handset.
Check if the microphone is clear or any dirt or debris, if you’re experiencing muffled audio during communication, a quick check and clean of the mic port can often resolve the issue, ensuring clear sound for effective communication.
Incorrect channel type in use.
You may be using the wrong channels when testing the communication with another vessel, ensure you are only using Simplex channels. For example, you can use channels 6, 8, 9, 10, 13, 67, 72, or 73 to ensure proper functionality.
Insufficient transmission power.
The transmission power might be set to 1W, which is often not enough to communicate with vessels that are farther away. To increase the power, press the Hi/Lo button on the fist mic or use the softkey on the VHF radio screen.
GNSS
GNSS
No location fix
Possible cause
Solution
No antenna connected to GPS receiver.
The antenna cable may have come loose. Check to make sure it’s still connected properly.
GPS antenna location.
For the best performance, it’s recommended to mount external GPS antennas and GPS receivers with internal antennas above deck. Making sure they have a clear, unobstructed view of the sky. Avoid placing them near structural bulkheads or other electrical equipment and cables, as these could cause interference.
GPS switched off.
The connection to the GPS satellites might be turned off. To check which modes are enabled, click here.
Geographic location or prevailing conditions preventing satellite fix.
You can wait for more favourable weather conditions, or try sailing to a new location that might give you a better fix. Click here to see your fix status.
No position data
Possible cause
Solution
Wrong Network mode selected.
You can make sure that the correct mode is selected, click here.
Poor / damaged / insecure cable / connection.
Check all cables to ensure they’re securely connected, not damaged and are not corroded. You can replace the cables if you need.
DSC
DSC
DSC functions are not working
Possible cause
Solution
MMSI number not programmed.
You must programme your MMSI number. Each VHF radio requires a unique MMSI number. In the United States, this MUST be programmed into the unit by an authorized dealer. See here for information on how to obtain your MMSI number.
AIS
AIS
AIS functions are not working
Possible cause
Solution
MMSI number not programmed.
You must programme your MMSI number. Each X100 requires a unique MMSI number. In the United States, this MUST be programmed into the unit by an authorised dealer.
Your AIS Presentation and AIS targets might not be enabled on your MFD. Refer to your MFD’s operation manual for instructions on how to enable these features.
Alarms
Alarms
Possible cause
Solution
ALR001 – Tx malfunction.
You must programme your MMSI number. Each X100 requires a unique MMSI number. In the United States, this MUST be programmed into the unit by an authorised dealer. Click here for information about MMSI numbers.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR002 – Antenna Voltage Standing Wave Ratio (VSWR) exceeds the limit.
Your VHF antenna might not be compatible with the X100. contact em-trak Marine Electronics Limited for guidance.
Check that the VHF antenna is connected properly to the X100, and the cable isn’t damaged. You can replace the cable if needed.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR003 – Rx Channel 1 malfunction. The Rx1 frequency synthesizer failed to lock.
Quickly switch to the next channel in the radio band, then return to the original channel. This helps the synthesizer lock onto the signal.
Turning the X100 on and off may fix the issue, click here to learn how to reset.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR004 – Rx Channel 2 malfunction. The Rx frequency synthesizer failed to lock.
Quickly switch to the next channel in the radio band, then return to the original channel. This helps the synthesizer lock onto the signal.
Turning the X100 on and off may fix the issue, click here to learn how to reset the X100.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR007 – UTC Sync Invalid, the internal GNSS transmitter is no longer directly synchronized with the GNSS receiver.
The GNSS receiver cable might be damaged or worn. Check to see if it’s still in good condition, and replace it if needed.
The GNSS receiver might not be receiving a signal. If possible, use a spectrum analyzer to check if any signal is being received.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR011 – Heading sensor offset.
Your heading sensor might be misaligned with the front-to-back axis of your boat. Check its alignment and re-adjust if necessary.
Metallic bulkheads, items, and electronic equipment can interfere with the heading sensor. Make sure there’s nothing like this positioned near the sensor.
The heading sensor cable might be damaged or worn. Check to see if it’s still in good condition, and replace it if needed.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR026 – No sensor position in use.
The GNSS antenna might be blocked. Check to make sure there’s nothing nearby or in the signal path that could interfere with the signal.
The GNSS cable might be damaged or worn. Check to see if it’s still in good condition, and replace it if needed.
Your GNSS antenna might not be compatible with the X100. contact em-trak Marine Electronics Limited for guidance.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR029 -No valid SOG information.
You may just be in a location that is difficult to get an accurate GNSS fix, check that your correct location is showing on screen, if not wait for about 5 minutes to see if you get a fix.
The GNSS antenna signal might be blocked by something in the signal path, make sure there is nothing that could block the path and that nothing could be interfering with the signal.
The GNSS antenna might not be connected properly to the X100, and the cable may be damaged or worn. Check that the cable is connected properly and that it is not damaged or worm. You can replace the cable is needed.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR030 – No valid COG information.
You may just be in a location that is difficult to get an accurate GNSS fix, check that your correct location is showing on screen, if not wait for about 5 minutes to see if you get a fix.
The GNSS antenna might not be connected properly to the X100, and the cable may be damaged or worn. Check that the cable is connected properly and that it is not damaged or worm. You can replace the cable is needed.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR057 – Power supply.
The power supplying the X100 might be outside the 12V to 24V DC range.
Turning the X100 on and off may fix the issue, click here to learn how to reset.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
ALR067 – Noise threshold exceeded on Channel A.
ALR068 – Noise threshold exceeded on Channel B.
This alarm is normal when sailing in busy shipping lanes and is nothing to worry about.
Check that the VHF antenna is connected, there is no damage to the cables and is functioning properly. Replace the cable if necessary.
The VHF antenna might not be compatible with the X100 contact em-trak Marine Electronics Limited for assistance.
If the recommended solutions have not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
Fist-mic
Fist-mic
Fist-mic not working
Possible cause
Solution
Poor / damaged / insecure cables / connections
The X100 might not be correctly powered on, try and move the fist-mic cable to see if this causes the fist mic to loose power. If it does loose power contact your local em-trak Marine Electronics Limited dealer and they will assist you.
If the problem persists, contact your local em-trak Marine Electronics Limited dealer.
If the recommended solution has not fixed the issue then contact your local em-trak Marine Electronics Limited dealer who will assist you.
Wireless network
Wireless network
Device cannot find network
Possible cause
Solution
Wi-Fi router not powered on.
The Wi-Fi router might not be powered on, or there may be a loose power cable. Make sure that the router is powered and that all of the cables are connected properly.
Unexpected power loss or router unplugged.
The router may have lost power unexpectedly, restart your router and then re scan for any available networks.
Bad connection on device.
There could be a poor Wi-Fi connection between the router and the wireless device. Restart your router and then re-scan for available networks.
Devices out of range or signal being blocked.
The strength of a wireless signal degrades over distance. If you are able try to move any wireless devices closer to the router and re scan for available networks.
There may be objects between the device and the router, move them and then re scan for available networks.
Device cannot connect to router
Possible cause
Solution
Incorrect password.
Ensure you are using the correct password. Usually the password can be located underneath or on the back of your router.
Heavy structure (i.e. decks, bulkheads or walls) are interfering with the wireless signal.
Move your router so that the heavy structure is no longer in direct line of sight.
Install a signal booster, or a mesh network onto your router. Make sure the signal booster is compatible with your router before installing.
Slow or unreliable connection
Possible cause
Solution
Router installed close to maximum wireless range.
Move device closer to the router.
Interference being caused by other wireless-enabled devices.
Change the routers wireless channel and retry the connection. You can use free wireless analyser apps on your smartphone or tablet to choose a less-congested channel.
Interference caused by other devices that use the 2.4 GHz frequency. See the list below of some common devices that use the 2.4 GHz frequency:
Fluorescent lighting
Mobile phones
Security cameras
Switch off each device in turn until you have identified the device causing the interference, then remove or reposition the device(s) or your wireless router.
Interference caused by electrical and electronic devices and associated cabling could generate an electromagnetic field which may interfere with the wireless signal.
Switch off each item in turn until you have identified the device causing the interference, then remove or reposition the offending device(s) or your wireless router.
Interference from devices on other vessels. When in close proximity to other vessels, many other wireless signals may be present; for example, when moored up in a marina.
Change the routers wireless channel and retry the connection. You can use free wireless analyser apps on your smartphone or tablet to help you choose a less congested channel.
If possible, move your vessel to a location with less wireless traffic.
Appendices
X100 appendices
Appendix A NMEA 0183 Sentences
Appendix A NMEA 0183 Sentences
The radio supports the following NMEA 0183 sentences.
Sentence
Description
Receive
Transmit
DSC
Digital Selective Calling
DSE
Expanded Digital Selective
Calling
VDM
AIS VHF Data Link Message
GGA
Global Positioning System Fix
Data
GLL
Geographic Position — Lat/Long
GNS
GPS Fix Data
RMA
Recommended Minimum
Specific Loran-C Data
RMC
Recommended Minimum
Specific GPS Data
DTM
Datum
Appendix B NMEA 2000 PGN List
Appendix B NMEA 2000 PGN List
The radio supports the following NMEA 2000 Parameter Group Number (PGN). These are applicable to NMEA 2000 and SeaTalking ® protocols.
PGN
Description
Receive
Transmit
59392
ISO Acknowledgement
59904
ISO Request
60416
Transport Protocol (group
function BMA)
60928
ISO Address Claim
65420
ISO Commanded Address
65396
AIS Transmitter Status
126208
NMEA — Request Group
Function
126208
NMEA — Command Group
Function
126208
NMEA — Acknowledge Group
Function
126464
PGN List
126992
System Time
126993
Heartbeat
126996
Product Information
127258
Magnetic variation
129025
Position Rapid Update
129026
COG / SOG Rapid Update
129029
GPS Position Data
129033
Local Time Offset
129038
AIS Class A Position Report
129039
AIS Class B Position Report
129040
AIS Class B Extended Position
Report
129041
AIS Aids to Navigation (AtoNs)
129044
Datum
129540
GPS Satellites in View
129542
GPS Pseudo Range Noise
Statistics
129547
GPS Pseudo Range Error
Statistics
129793
AIS UTC and Date Report
129794
AIS Class A Static and Voyage
Related data
129797
AIS Binary Broadcast
129798
AIS SAR Aircraft Position Report
129801
AIS Addressed Safety Related
Message
129802
AIS Safety Related Broadcast
Message
129808
DSC Call Information
129809
AIS Class B “CS” Static Data
Report, Part A
129810
AIS Class B “CS” Static Data
Report, Part B
Appendix C VHF Channels
Appendix C VHF Channels
International marine VHF channels and frequencies.
CH No.
TX Freq
RX Freq (MHz)
Single Freq (MHz)
Use
01
156.050
160.650
Public correspondence, Port operations and Ship movement.
02
156.100
160.700
Public correspondence, Port operations and Ship movement.
03
156.150
160.750
Public correspondence, Port operations and Ship movement.
04
156.200
156.800
Public correspondence, Port operations and Ship movement.
05
156.250
156.850
Public correspondence, Port operations and Ship movement.
06
156.300
156.300
X
Intership.
Coordinated search and rescue and ship stations working
frequency.
07
156.350
160.950
X
Public correspondence, Port operations and Ship movement.
08
156.400
156.400
X
Intership.
Preferred intership channel.
09
156.450
156.450
X
Intership, Port operations and Ship movement.
10
156.500
156.500
X
Intership, Port operations and Ship movement.
SAR, Pollution incidents, MSI broadcasts coordinated with
HMCG.
11
156.550
156.550
X
Port operations and Ship movement.
12
156.600
156.600
X
Port operations and Ship movement.
13
156.650
156.650
X
Intership navigation safety (Bridge-to-bridge).
International navigation safety channel. May also be used for
ship movement, port operations and limited coast stations.
14
156.700
156.700
X
Port operations and Ship movement.
15
156.750
156.750
X
On-board communications.
1 watt maximum power.
16
156.800
156.800
X
International Distress, Safety and Calling.
17
156.850
156.850
X
On-board communications.
1 watt maximum power.
18
156.900
161.500
Public correspondence, Port operations and Ship movement.
19
156.950
161.550
Public correspondence, Port operations and Ship movement.
1019
156.950
156.950
X
Port operations and Ship movement.
2019
161.550
161.550
X
Port operations and Ship movement.
Channel is limited to coast stations only unless otherwise
permitted by UK regulation.
20
157.000
161.600
Public correspondence, Port operations and Ship movement.
1020
157.000
157.000
X
Public correspondence, Port operations and Ship movement.
2020
161.600
161.600
X
Port operations and Ship movement.
Channel is limited to coast stations only unless otherwise
permitted by UK regulation.
21
157.050
161.650
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
22
157.100
161.700
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
23
157.150
161.750
Safety.
HNCG — SAR and MSI broadcasts.
24
157.200
161.800
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
1024
157.200
157.200
X
For future use.
2024
161.800
161.800
X
For future use.
25
157.250
161.850
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
1025
157.250
157.250
X
For future use.
2025
161.850
161.850
X
For future use.
26
157.300
161.900
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
1026
157.300
157.300
X
For future use.
2026
161.900
161.900
X
For future use.
27
157.350
161.950
Public correspondence, Port operations and Ship movement.
Available for testing of new AIS applications.
1027
157.350
157.350
X
Port operations and Ship movement.
2027
161.950
161.950
Application specific message (ASM1)
28
157.400
162.000
Public correspondence, Port operations and Ship movement.
Available for testing of new AIS applications.
1028
157.400
157.400
Port operations and Ship movement.
2028
162.000
162.000
Application specific message (ASM2).
60
156.025
160.625
Public correspondence, Port operations and Ship movement.
61
156.075
160.675
Public correspondence, Port operations and Ship movement.
62
156.125
160.725
Public correspondence, Port operations and Ship movement.
63
156.175
160.775
Public correspondence, Port operations and Ship movement.
64
156.225
160.825
Public correspondence, Port operations and Ship movement.
65
156.275
160.875
UK National Coastwatch.
66
156.325
160.925
Public correspondence, Port operations and Ship movement.
67
156.375
156.375
X
Intership, Port operations and Ship movement.
HMCG — SAR and Safety.
68
156.425
156.425
X
Port operations and Ship movement.
69
156.475
156.475
X
Intership, Port operations and Ship movement.
71
156.575
156.575
X
Port operations and Ship movement.
72
156.625
156.625
X
Intership. Preferred intership channel.
73
156.675
156.675
X
Intership, Port operations and Ship movement.
HMCG — SAR and MSI broadcasts.
74
156.725
156.725
X
Port operations and Ship movement.
75
156.775
156.775
X
Intership
Navigation related communications only with 1 watt maximum
power.
76
156.825
156.825
X
Intership
Navigation related communications only with 1 watt maximum
power.
77
156.875
156.875
X
Intership.
Preferred intership channel.
78
156.925
161.525
Public correspondence, Port operations and Ship movement.
1078
156.925
156.925
X
Port operations and Ship movement.
2078
161.525
161.525
X
Port operations and Ship movement.
Channel is limited to coast stations only unless otherwise
permitted by UK regulation.
79
156.975
161.575
Public correspondence, Port operations and Ship movement.
1079
156.975
156.975
X
Port operations and Ship movement.
2079
161.575
161.575
X
Port operations and Ship movement.
Channel is limited to coast stations only unless otherwise
permitted by UK regulation.
80
157.025
161.625
Public correspondence, Port operations and Ship movement.
Also marinas and yacht clubs UK only. Available for VDSMS.
81
157.075
161.675
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
82
157.125
161.725
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
83
157.175
161.775
Public correspondence, Port operations and Ship movement.
Available for VDSMS.
84
157.225
161.825
Port operations and Ship movement.
HMCG — SAR and MSI broadcasts.
1084
157.225
157.225
X
For future use
2084
161.825
161.825
X
For future use
85
157.275
161.875
Public correspondence, Port operations and Ship movement.
Available for VDSMS
1085
157.275
157.275
X
For future use.
2085
161.875
161.875
X
For future use.
86
157.325
161.925
Port operations and Ship movement.
HMCG — SAR and MSI broadcasts.
1086
157.325
157.325
X
For future use.
2086
161.925
161.925
X
For future use.
87
157.375
157.375
X
Port operations and Ship movement.
Available for testing of new AIS applications.
88
157.425
157.425
X
Port operations and Ship movement.
Available for testing of new AIS applications.
Be aware that:
Intership channels are for communications between ship stations. Intership communications should be restricted to channels 6, 8, 72 and 77. If these are not available, the other channels marked for Intership may be used.
Channel 70 is used exclusively for Digital Selective Calling (DSC) and is not available for regular voice communications.
Note:
Channel 06 may also be used for communications between ship stations and aircraft engaged in coordinated search and rescue operations. Ship stations should avoid harmful interference to such communications on channel 06 as well as to communications between aircraft stations, ice breakers and assisted ships during ice seasons.
Within the European Maritime Area and in Canada, channels 10, 67 and 73 may also be used by the individual administrations concerned for communication between ship stations, aircraft stations and participating land stations engaged in coordinated search and rescue and anti-pollution operations in local areas. Channel 10 or 73 (depending on location) are also used for the broadcast of Marine Safety Information by the Maritime and Coast Guard Agency in the UK only.
Channel 13 is designated for use on a worldwide basis as a navigation safety communication channel, primarily for intership navigation safety communications.
Channels 15 and 17 may also be used for on-board communications provided the effective radiated power does not exceed 1 Watt.
The use of channels 75 and 76 should be restricted to navigation related communications only and all precautions should be taken to avoid harmful interference to channel 16. Transmit power is limited to 1 Watt.
Private Channels (Europe only)
Country
Channel designations
Tx frequency
Rx frequency
Channel use
Belgium
96
162.425
162.425
Marina
Denmark
L1
L2
155.500
155.525
155.500
155.525
Pleasure
Pleasure
Finland, Norway & Sweden
L1
L2
L3
155.500
155.525
155.650
155.500
155.525
155.650
Pleasure
Pleasure
Pleasure
Holland (Netherlands)
31
37
157.550
157.850
162.150
157.850
Marina
Leisure
Denmark, Finland, Norway & Sweden
F1
F2
F3
155.625
155.775
155.825
155.625
155.775
155.825
Fishing
Fishing
Fishing
United Kingdom
M1
M2
157.850
161.425
157.850
161.425
Marina
Marina
The national channels listed above have been allocated for the specific use within the countries listed. To use these channels you must have the appropriate licence.
US Marine VHF Channels and Frequencies
Note:
Some of the channel numbers have recently changed. For completeness, both old and new numbers are shown in the table below.
Ch No. (NEW)
Ch No. (OLD)
TX Freq (MHz)
RX
Freq (MHz)
Single Freq
Use
1001
01A
156.050
156.050
x
Port operations and commercial, VTS.
Available only in New Orleans / Lower Mississippi area.
1005
05A
156.250
156.250
x
Port operations or VTS in the Houston, New Orleans and Seattle areas.
06
06
156.300
156.300
x
Intership safety.
1007
07A
156.350
156.350
x
Commercial.
VDSMS.
08
08
156.400
156.400
x
Commercial (Intership only). VDSMS.
09
09
156.450
156.450
x
Boater calling.
Commercial and Non-commercial. VDSMS.
10
10
156.500
156.500
x
Commercial.
VDSMS.
11
11
156.550
156.550
x
Commercial.
VTS in selected areas. VDSMS.
12
12
156.600
156.600
x
Port operations.
VTS in selected areas.
13
13
156.650
156.650
x
Intership navigation safety (Bridge-to-bridge).
Ships >20 metres in length maintain a listening watch on this channel in US waters.
14
14
156.700
156.700
x
Port operations.
VTS in selected areas.
15
15
–
156.750
x
Environmental (Receive only). Used by Class ‘C’ EPIRBs.
16
16
156.800
156.800
x
International Distress, Safety and Calling.
Ships required to carry radio, USCG, and most coast stations maintain a listening watch on this channel.
17
17
156.850
156.850
x
State Control.
1018
18A
156.900
156.900
x
Commercial.
VDSMS.
1019
19A
156.950
156.950
x
Commercial.
VDSMS.
20
20
157.000
161.600
Port operations (duplex).
1020
20A
157.000
157.000
x
Port operations.
1021
21A
157.050
157.050
x
US Coast Guard only.
1022
22A
157.100
157.100
x
Coast Guard Liaison and Maritime Safety Information Broadcasts.
Broadcasts announced on channel 16.
1023
23A
157.150
157.150
x
US Coast Guard only.
24
24
157.200
161.800
Public correspondence (Marine operator).
25
25
157.250
161.850
Public correspondence (Marine operator).
26
26
157.300
161.900
Public correspondence (Marine operator).
27
27
157.350
161.950
Public correspondence (Marine operator).
28
28
157.400
162.00
0
Public correspondence (Marine operator).
1063
63A
156.175
156.175
x
Port operations and commercial VTS, Available only in New Orleans / Lower Mississippi area.
1065
65A
156.275
156.275
x
Port operations.
1066
66A
156.325
156.325
x
Port operations.
67
67
156.375
156.375
x
Commercial.
Used for bridge-to-bridge communications in lower Mississippi river (Intership only).
68
68
156.425
156.425
x
Non-commercial. VDSMS.
69
69
156.475
156.475
x
Non-commercial. VDSMS.
71
71
156.575
156.575
x
Non-commercial. VDSMS.
72
72
156.625
156.625
x
Non-commercial (Intership only). VDSMS.
73
73
156.675
156.675
x
Port operations.
74
74
156.725
156.725
x
Port operations.
77
77
156.875
156.875
x
Port operations (Intership only).
1078
78A
156.925
156.925
x
Non-commercial. VDSMS.
1079
79A
156.975
156.975
x
Commercial.
Non-commercial in Great Lakes only). VDSMS.
1080
80A
157.025
157.025
x
Commercial.
Non-commercial in Great Lakes only). VDSMS.
1081
81A
157.075
157.075
x
US Government only — Environmental protection operations.
1082
82A
157.125
157.125
x
US Government only.
1083
83A
157.175
157.175
x
US Coast Guard only.
84
84
157.225
161.825
Public correspondence (Marine operator). VDSMS.
85
85
157.275
161.875
Public correspondence (Marine operator). VDSMS.
86
86
157.325
161.925
Public correspondence (Marine operator). VDSMS.
87
87
157.375
161.975
Public correspondence (Marine operator). VDSMS.
88
88
157.425
157.425
Commercial, Intership only. VDSMS.
Be aware that:
Recreational boaters normally use channels listed as Non-commercial: 68, 69, 71, 72 1078.
Channel 70 is used exclusively for DSC and is not available for regular voice communications.
Channels 75 and 76 are reserved as guards bands for channel 16 and are not available for regular voice communications.
Note:
Four digit channels indicate simplex use of the ship station transmit side of an international semi-duplex channel. Operations are different from that of international operations on that channel.
Channel 13 should be used to contact a ship when there is danger of collision. All ships of length 20 metres or greater are required to guard VHF channel 13, in addition to VHF channel 16, when operating within US territorial waters.
Channel 15 is receive only.
Channel 16 is used for calling other stations or for distress calls.
Channel 17 and channel 77 have a fixed power output of 1 watt.
Channel 13 and channel 67 have an initial power output of 1 watt. User can temporarily override this restrictions to transmit at high power.
VDSMS (VHF Digital Small Message Services). Transmissions of short digital messages in accordance with RTCM Standard 12301.1 is allowed.
WX (Weather) Channels (North America only)
Weather channel
Frequency in MHz
WX1
162.550.
WX2
162.400.
WX3
162.475.
WX4
162.425.
WX5
162.450.
WX6
162.500.
WX7
162.525.
WX8
161.650.
WX9
161.775
WX10
163.275
Canadian marine VHF channels and frequencies
Note:
Some of the channel numbers have recently changed. For completeness, both old and new numbers are shown in the table below.
Ch No. (NEW)
Ch No. (OLD)
Tx Freq (MHz)
Rx
Freq (MHz)
Single Freq
Areas of operation
Use
01
01
156.050
160.650
BCC
Public correspondence.
02
02
156.100
160.700
BCC
Public correspondence.
03
03
156.150
160.750
BCC
Public correspondence.
1004
04A
156.200
156.200
x
BCC, EC
Intership, Ship/Shore, Commercial and Safety DFO / Canadian Coast Guard only in BCC area. Commercial fishing in EC area.
1005
05A
156.250
156.250
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Ship movement.
06
06
156.350
156.350
x
All areas
Intership, Commercial, Non-Commercial and Safety
Maybe used for search and rescue communications between ships and aircraft.
1007
07A
156.350
156.350
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore and Commercial.
08
08
156.400
156.400
x
EC, INLD BC, WC
Intership, Commercial and Safety.
Also assigned for Intership in the Lake Winnipeg area.
09
09
156.450
156.450
x
AC, INLD PRA, BCC
Intership, Ship/Shore, Commercial,
Non-commercial, Safety and Ship movement. Commercial — BCC area. May be used to communicate with aircraft and helicopters in predominantly maritime support operations.
10
10
156.550
156.550
x
AC, BCC, GL
Intership, Ship/Shore, Commercial,
Non-commercial, Safety and Ship movement. Commercial — BCC area. May also be used for communications with aircraft engaged in
coordinated search and rescue and antipollution operations.
11
11
156.550
156.550
x
AC, BCC, GL
Intership, Ship/Shore, Commercial, Non-commercial and Ship movement.
VTS — BCC area. Also used for pilotage purposes.
12
12
156.600
156.600
x
AC, BCC, GL, WC
Intership, Ship/Shore, Commercial, Non-commercial and Ship movement.
VTS — BCC area. Port operations and pilot information and messages.
Intership, Ship/Shore, Commercial, Non-commercial and Ship movement.
VTS — BCC area. Port operations and pilot information and messages.
15
15
156.750
156.750
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore, Commercial, Non-commercial and Ship movement.
Port operations and Ship movement — BCC area. All operations limited to 1 watt maximum power. May also be used for on-board communications.
16
16
156.80
156.80
x
All areas
International distress, safety and calling.
17
17
156.850
156.850
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore, Commercial, Non-commercial and Ship movement.
Port operations and Ship movement — BCC area. All operations limited to 1 watt maximum power. May also be used for on-board communications.
1018
18A
156.900
156.900
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore and Commercial. Towing — BCC area.
1019
19A
156.95
0
156.95
0
x
All areas
Intership and Ship/Shore.
DFO / Canadian Coast Guard. Pacific Pilots — BCC area
20
20
157.00
161.600
AC, BCC, EC, GL, NL, INLD
BC, WC
Ship/Shore, Safety and Ship movement.
Port operations only with 1 watt maximum power
1021
21A
157.05
0
157.050
x
All areas
Intership and Ship/Shore.
DFO / Canadian Coast Guard only.
2021
21B
–
161.650
x
All areas
Safety
Continuous Marine Broadcast (CMB) service.
1022
22A
157.100
157.100
x
All areas
Intership, Ship/Shore, Commercial and Non-commercial.
For communications between Canadian Coast Guard and non-Canadian Coast Guard stations only.
23
23
157.150
161.750
x
BCC, INLD BC
Ship/Shore and Public correspondence.
2023
–
–
161.750
x
GL
Safety
Continuous Marine Broadcast (CMB) service.
24
24
157.200
161.800
All areas
Ship/Shore and Public correspondence.
25
25
157.250
161.850
BCC
Ship/Shore and Public correspondence.
2025
25B
–
161.850
x
AC
Safety
Continuous Marine Broadcast (CMB) service.
26
26
157.300
161.900
All areas
Safety and Public correspondence.
27
27
157.350
161.950
AC, BCC, GL
Ship/Shore and Public correspondence.
28
28
157.400
162.00
x
BCC
Ship/Shore, Safety and Public correspondence.
2028B
28B
–
162.000
x
AC, GL
Safety
Continuous Marine Broadcast (CMB) service.
60
60
156.025
160.625
BCC
Ship/Shore and Public correspondence.
1061
61A
156.075
156.075
x
BCC
Intership, Ship/Shore and Commercial
DFO / Canadian Coast Guard only in BCC area. Commercial fishing only in EC area.
1062
62A
156.125
156.125
x
BCC, EC
Intership, Ship/Shore and Commercial
DFO / Canadian Coast Guard only in BCC area. Commercial fishing only in EC area.
1063
–
156.175
156.175
x
BCC
Intership, Ship/Shore and Commercial. Tow boats — BCC area.
64
64
156.225
160.825
BCC
Ship/Shore and Public correspondence.
1064
64A
156.225
156.225
x
EC
Intership, Ship/Shore and Commercial fishing only.
1065
65A
156.275
156.275
x
All Areas
intership, Ship/Shore, Safety, Commercial and Non-commercial.
Search and rescue and antipollution operations on the Great Lakes.
Towing on the Pacific coast.
Port operations only in the St. Lawrence river area with 1 watt maximum power.
Intership in INLD PRA area.
1066
66A
156.325
156.325
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore, Safety, Commercial and Non-commercial.
Port operations only in the St. Lawrence river / Great Lakes areas with 1 watt maximum power. 1 watt marine channel in BCC area.
67
67
156.375
156.375
x
All areas
Intership Ship/Shore, Safety, Commercial and Non-commercial.
May also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations. Commercial fishing only in EC and INLD PRA areas. Pleasure craft — BCC area.
68
68
156.425
156.425
x
All areas
Intership, Ship/Shore and Non-commercial. For marinas, yacht clubs and pleasure craft.
69
69
156.475
156.475
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore, Commercial and Non-commercial.
Commercial fishing only — EC area. Pleasure craft
— BCC area.
71
71
156.575
156.575
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership Ship/Shore Safety, Commercial, Non-commercial and Ship movement.
Ship movement — BCC area. Marinas and yacht clubs — EC area and on Lake Winnipeg.
72
72
156.625
156.625
x
BCC, EC
Intership, Commercial and Non-commercial May be used to communicate with aircraft and helicopters in predominantly maritime support operations. Pleasure craft — BCC area.
73
73
156.675
156.675
x
All areas
Intership, Ship/Shore, Safety, Commercial and Non-commercial.
May also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations. Commercial fishing only in EC and INLD PRA areas.
74
74
156.725
156.725
x
BCC, EC
Intership, Ship/Shore, Commercial, Non-commercial and Ship movement. VTS and Ship movement — BCC area.
75
–
156.775
156.775
x
All areas
Intership, Ship/Shore, Commercial and Ship movement.
Simplex port operation, ship movement and navigation related communication only. 1 watt maximum power.
76
–
156.825
156.825
x
All areas
Intership, Ship/Shore, Commercial and Ship movement.
Simplex port operation, ship movement and navigation related communication only. 1 watt maximum power.
77
77
156.875
156.875
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore, Safety and Ship movement. Pilotage BCC area, 25 watts. Port operations only in the St. Lawrence River/Great Lakes areas with 1 watt maximum power.
1078
78A
156.925
156.925
x
BCC, EC
Intership, Ship/Shore and Commercial. Fishing industry — BCC area.
1079
79A
156.975
156.975
x
BCC, EC
Intership, Ship/Shore and Commercial. Fishing industry — BCC area.
1080
80A
157.025
157.025
x
BCC, EC
Intership, Ship/Shore and Non-commercial. Whale watching — BCC area.
1081
81A
157.075
157.075
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership, Ship/Shore and Safety.
DFO / Canadian Coast Guard use only.
1082
82A
157.125
157.125
x
AC, BCC, EC, GL, NL, INLD
BC, WC
Intership and Ship/Shore.
DFO / Canadian Coast Guard use only.
1083
83A
157.175
157.175
x
BCC, EC
Intership and Ship/Shore
DFO / Canadian Coast Guard and other government agencies.
2083
83B
–
161.775
x
AC, BCC, GL
Safety
Continuous Marine Broadcast (CMB) service
84
84
157.225
161.825
BCC
Ship/Shore and Public correspondence.
85
85
157.275
161.875
AC, BCC, GL ,NL
Ship/Shore and Public correspondence.
86
86
157.325
161.925
BCC
Ship/Shore and Public correspondence.
87
87
157.375
157.375
x
AC, BCC, GL, NL
Intership, Non-commercial and Ship movement. Port operation and ship movement — EC area. Pleasure craft — BCC area.
88
88
157.425
157.425
x
AC, BCC, GL, NL
Intership, Commercial and Ship movement.
Port operation and ship movement — BCC area.
Area of operation:
AC — Atlantic Coast, Gulf and St. Lawrence River up to and including Montreal.
BCC — British Columbia Coast (Pacific Coast).
EC — East Coast: includes NL, AC, GL and Eastern Arctic areas.
GL — Great Lakes: includes St. Lawrence above Montreal.
NL — Newfoundland and Labrador.
WC — West Coast: includes BCC, Western Arctic and Athabasca-Mackenzie Watershed areas.
INLD BC — Inland waters of BC and the Yukon.
INLD PRA — Inland waters of MB, SK and AB.
Note:
Four digit channels indicate simplex use of the ship station transmit side of an international semi-duplex channel. Operations are different from that of international operations on that channel.
Channel 16 is used for calling other stations or for distress calls.
Channel 70 is used exclusively for Digital Selective Calling and is not available for regular voice communications.
FAQ
Frequently Asked Questions about the X100
FAQ
FAQ
This section answers the frequently asked questions that installers and users have. This will save you contacting the support team. If the question you have is not answered here, then contact support@em-trak.com.
What hardware should I use?
What hardware should I use?
VHF Antenna
It is recommended that you use a VHF antenna tuned to 162MHz for optimum performance. For your splitter, one suitable for 156MHz and 162MHz is recommended.
VHF Antenna cable
RG-58 or RG-8X cables can be used for short distances, however for longer runs it is recommend a low loss cable like RG-213 is used.
Power cable
The X100 is supplied with a two metre long power and data cable. If you require longer cables to reach your power supply, ensure the cables are capable of carrying currents of up to 2A peak and 200mA on average. You will also have to have means of connecting the cables together.
Chart plotter
Generally your chart plotter should be configured to accept NMEA data at 38400 baud (sometimes referred to as ‘NMEA HS’). You may also need to enable the display of AIS targets in the chart options.
If an NMEA connection is not possible, the chart plotter can be connected wirelessly using the IP address 192.168.4.1 using port 10110.
If you use an NMEA2000 network on your vessel you can connect the AIS transceiver to the NMEA2000 network via a suitable cable. If you are not sure what cable is suitable, email support@em-trak.com or contact your dealer.
How do I connect devices to the X100?
How do I connect devices to the X100?
Any device you want to connect to the X100 needs to be on the same Wi-Fi network as the X100. So make sure the device is on the same network, then simply press the JOIN WI-FI softkey on the VESSEL screen.
Then scan the QR code with the device you want to join, open the NX-Connect app and follow the app’s instructions, the device will be connected in no time.
What do I need to think about before installing any equipment?
What do I need to think about before installing any equipment?
First make sure that you have compatible equipment, you can see which equipment is best to use by clicking here. If you don’t have any of the equipment mentioned, don’t worry. Contact support@em-trak.com, we will be able to help in getting the right equipment.
Then it’s best to think about the placement of the equipment, click here for guidance on the best locations to install everything.
How do I switch between high and low transmitting power?
How do I switch between high and low transmitting power?
Some channels can only broadcast using low power (1W) or high power (25W). Generally channels used for ship-to-ship communications (e.g., Ch 6, 8, 72, 77) broadcast using low power to minimize interference. Channels used for distress calls like Ch 16 broadcast using high power so the call can reach further.
The softkey to switch between high and low transmitting power is on the VHF radio screen. To see its location click here.
How do I receive and install software updates?
How do I receive and install software updates?
Each time you open the app, it automatically checks for the latest X100 software update. If a newer version is available, it will download and install it for you automatically.
When a software update is available for the app, your smart device will usually notify you. You can then download and install the update from the app store.
How do I make distress calls?
How do I make distress calls?
Distress calls can be made in two ways, first by using the red distress button and second through the DSC call menu.
The step by step guide below shows you how to make a distress call from the distress button.
The step by step guide below shows how to make a distress call from the DSC menu.
How does the MOB feature work?
How does the MOB feature work?
WARNING
Only smart phones and tablets can receive MOB alerts, smart watches will not receive MOB alerts.
INFORMATION
Make sure to connect devices via Wi-Fi and embark your devices to enable the MOB features.
When a connected and embarked device goes far enough away from the X100, the MOB alarm sounds on the X100 and all connected devices.
The step by step guide below shows you how to embark devices.
How do I change the baud rate?
How do I change the baud rate?
Changing the baud rate can help optimize the data transfer between devices. The step by step guide below shows you how to do this.
How do I share my position?
How do I share my position?
You can share your position by replying to a position request DSC call, or by sharing your position manually. The step by step guide below shows you how to manually share your position.
How do I access the diagnostics for system checks?
How do I access the diagnostics for system checks?
The diagnostics menu provides valuable information to help you maintain and use the X100 effectively, ensuring optimal performance and quick troubleshooting when needed. Be aware that you cannot edit any of the information shown.
To access the diagnostics page, from SETTINGS select diagnostics.
What NMEA connections do I need to make?
What NMEA connections do I need to make?
The illustration and table below shows the NMEA0183 connections you’ll need to make if you want use the NMEA0183 connector.
Pin
Function
Colour
1
NMEA 1 Transmit +
Brown
2
NMEA 1 Transmit –
Blue
3
NMEA 1 Receive +
White
4
NMEA 1 Receive –
Green
5
GND
Black
6
NMEA 2 Send +
Purple
7
NMEA 2 Send –
Pink
8
NMEA 2 Receive +
Grey
9
NMEA 2 Receive –
Yellow
If you prefer to use the NMEA2000 connection, simply connect your devices to the NMEA2000 port located on the back of the X100.
Why can’t I see target names when using NMEA2000?
Why can’t I see target names when using NMEA2000?
AIS name messages were only added to the NMEA2000 specification fairly recently (in 2010). It took the NMEA standards organisation some time to define the structure of these messages.
Individual manufacturers used their own messages for Class B vessel names on the NMEA2000 network. This meant that their own AIS equipment could communicate with each other but not to equipment from other manufacturers.
Why can’t I see my X100 on AIS tracking websites?
Why can’t I see my X100 on AIS tracking websites?
Tracking sites receive data from AIS receivers installed along coast lines and from satellites. Satellites receive a low percentage of transmissions and have quite a few blind spots. Because of this, tracking sites don’t always provide full coverage. Their reception range can vary, sometimes drop out completely, and the data they provide may refresh slowly or with noticeable delays. If you cannot see your X100 on a tracking website you can ask a nearby vessel with AIS if they can see you.
How do I check if my chartplotter is AIS compatible?
How do I check if my chartplotter is AIS compatible?
Most modern chartplotters will have the ability to accept AIS information via NMEA, however older models may not have this ability. This is due to technology continuously improving with new features being added. To check to see if your chartplotter is fully compatible with the X100 contact us by clicking here, or email support@em-trak.com.
